Flagstaff 228LTD

(2021-2023, prior to this it was a full MAC camper called the 228)

(2021 model year shown)

Highlights

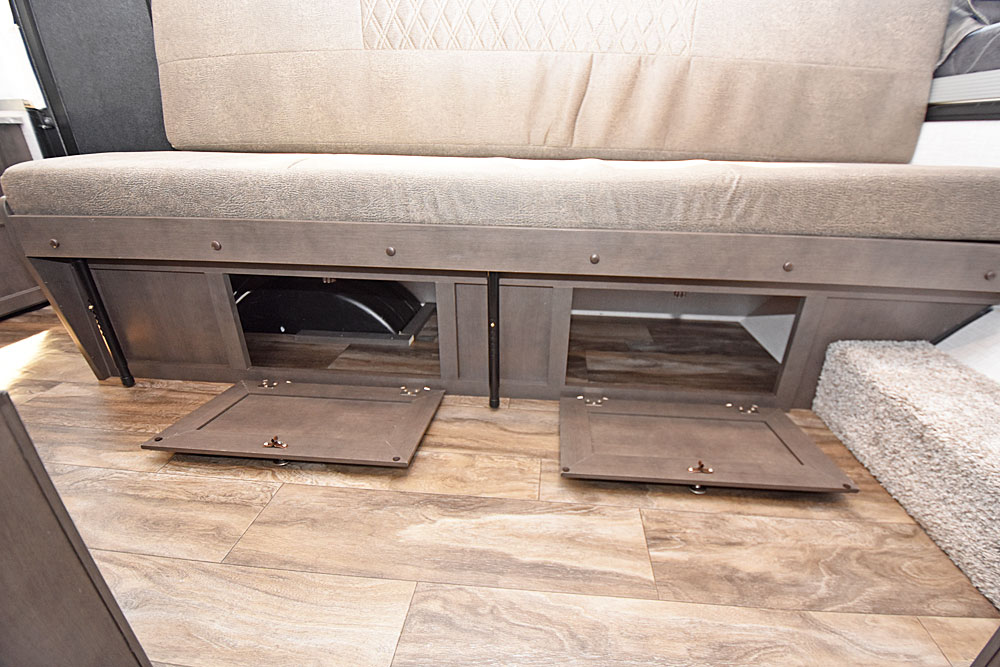

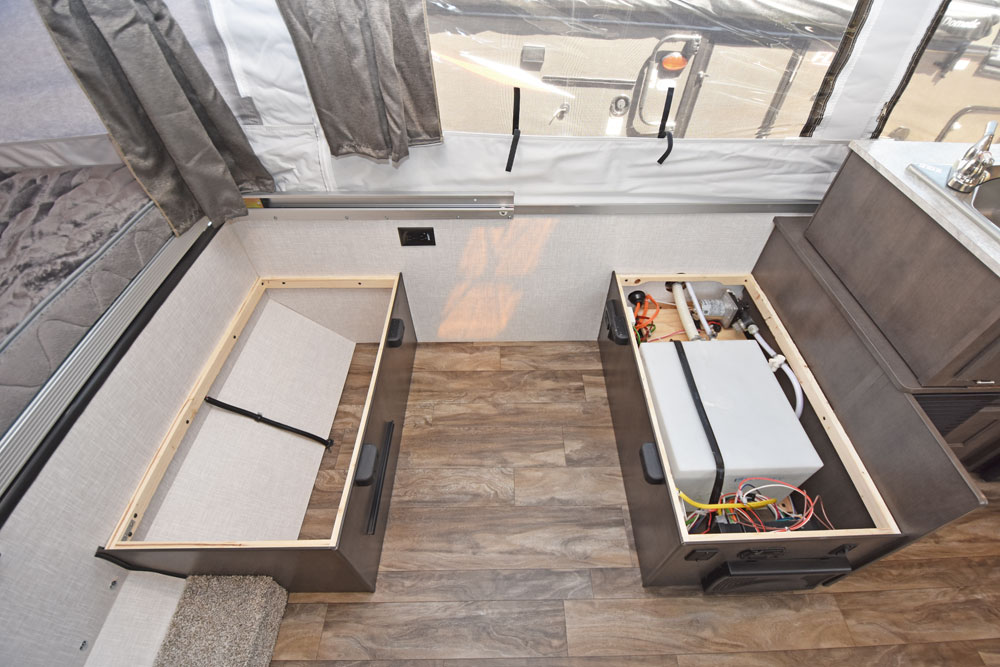

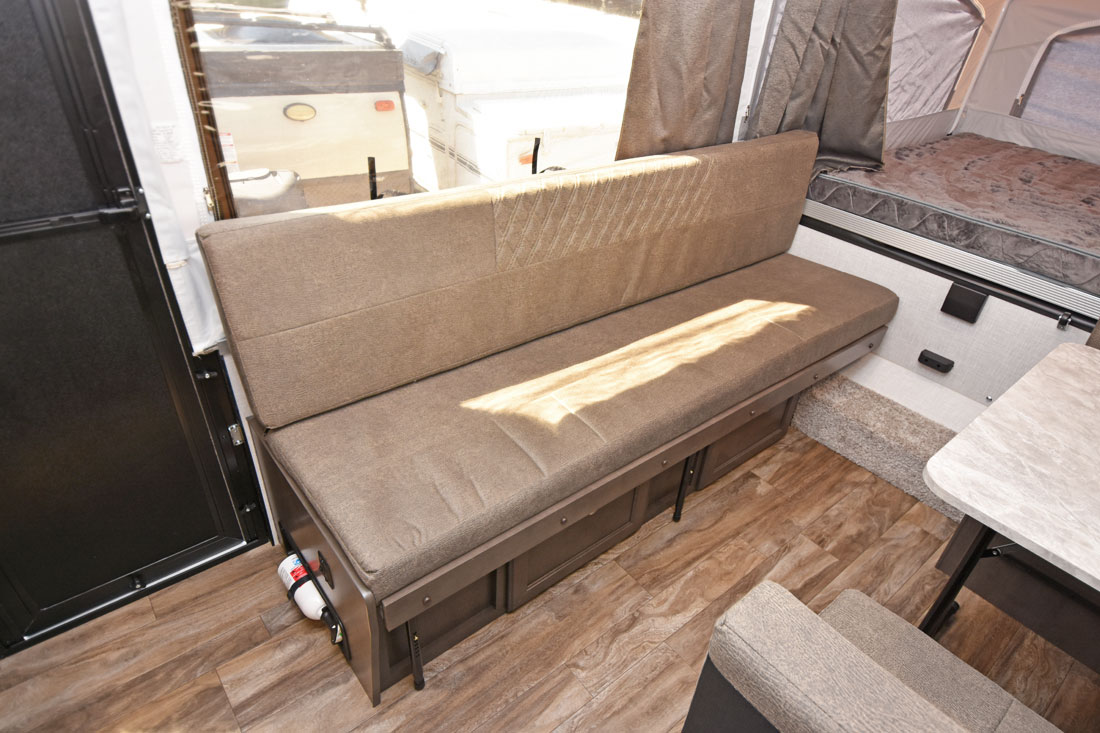

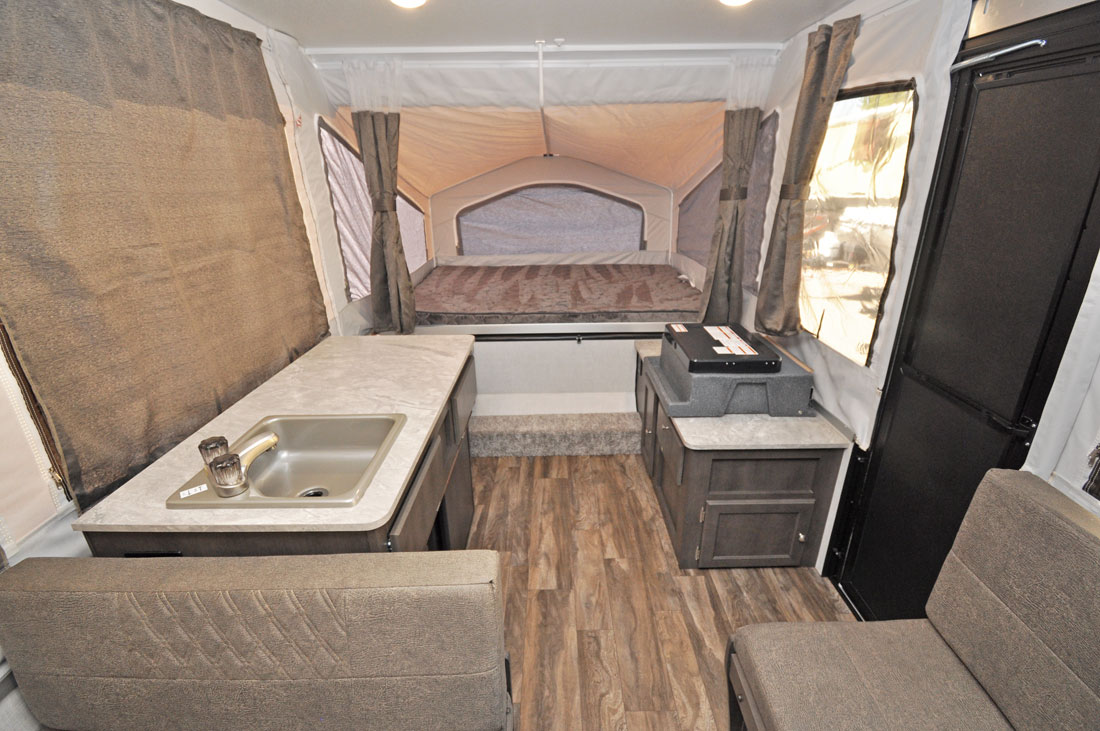

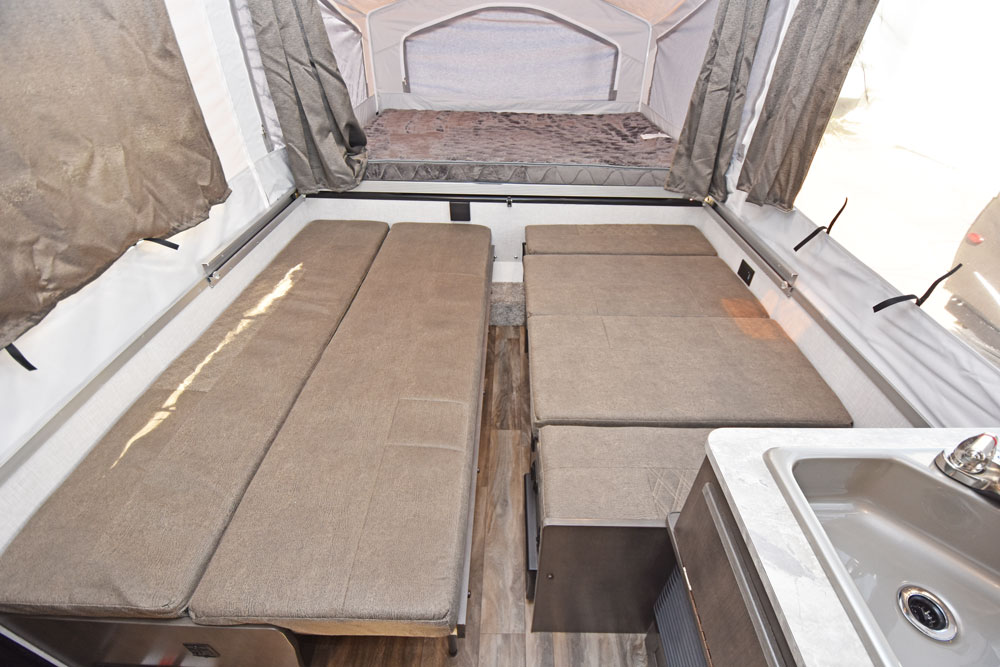

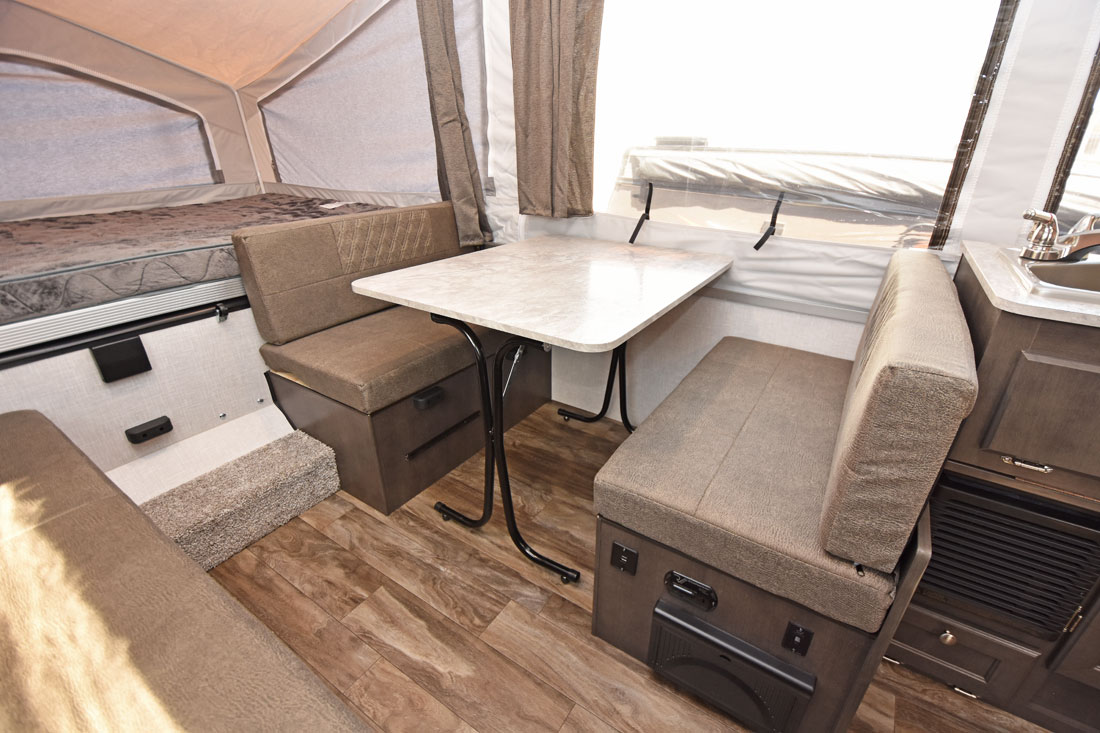

The dinette and gaucho together are great for shared meals and game time

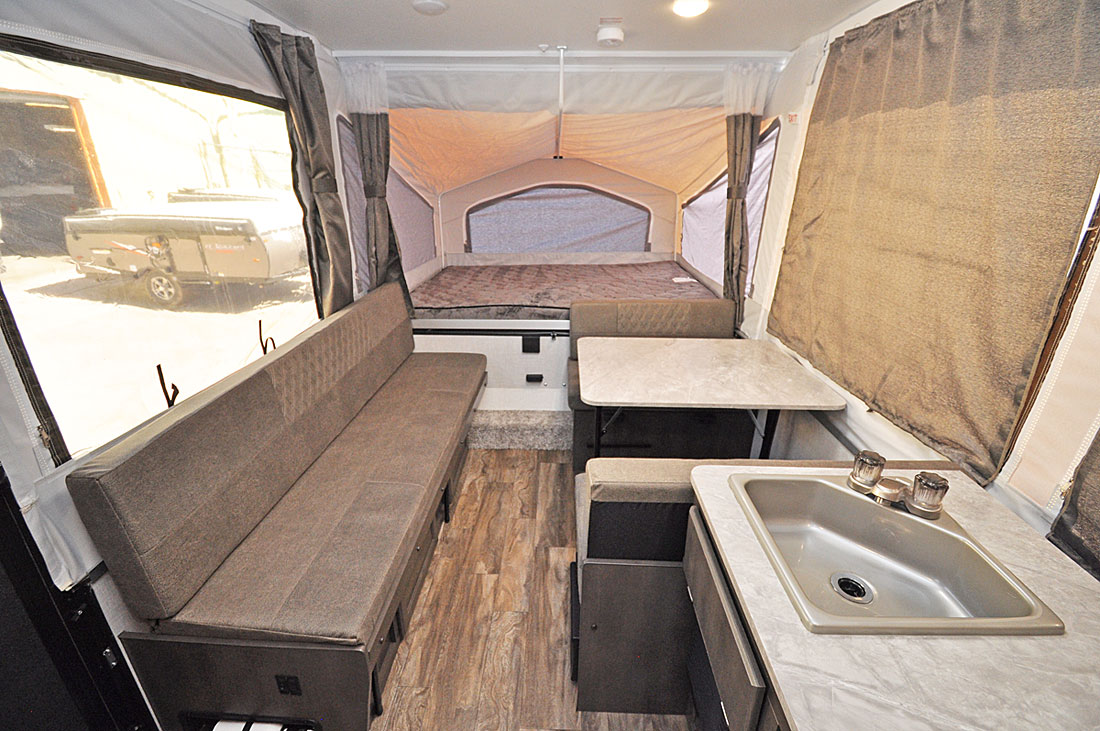

The full walkway from end to end makes getting to the end beds easy
The only 12' LTD camper and the only LTD camper with four beds.

Specifications

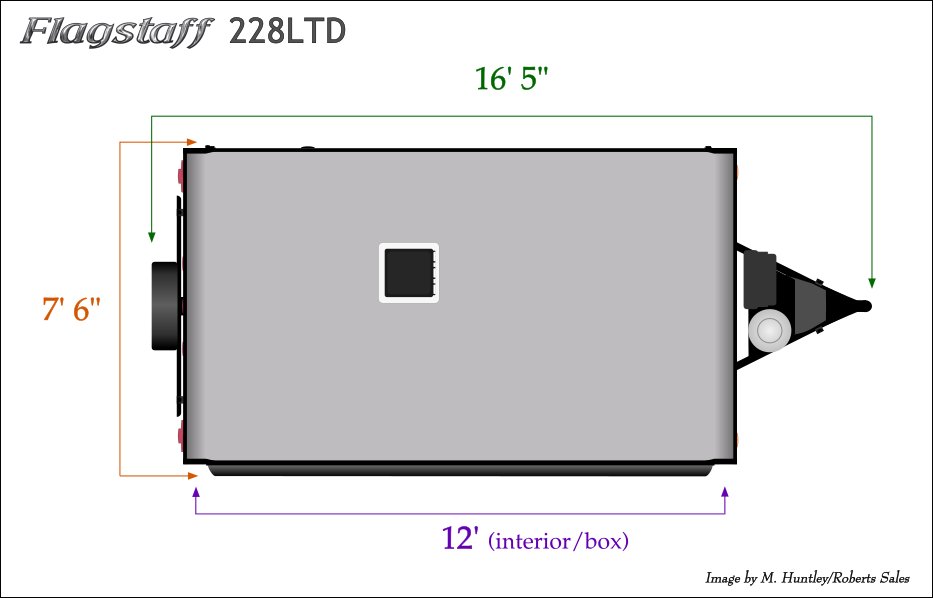

Box Size: 12'
Open Length: 23" 1"
Travel Length: 16' 5"
Travel Width: 7' 6"
Dry Weight: 2049 lbs
Hitch Weight: 225 lbs
GVWR: 3225 lbs
Coupler size: 2"
Sleeps: 8 (technically--please see Not All Dinettes Are Created Equal)

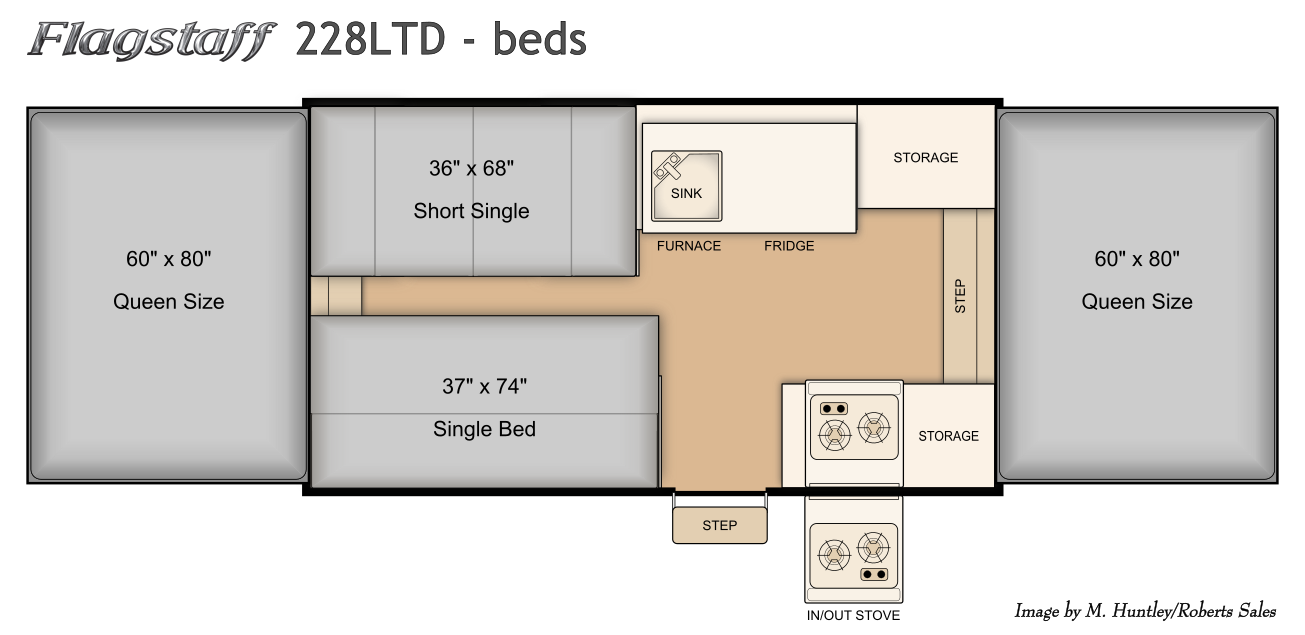

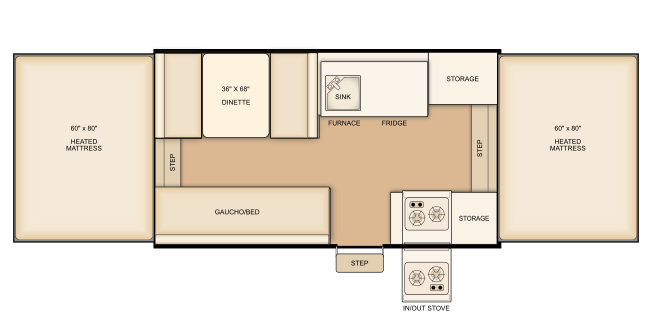

Beds:
1. 80" x 60"
2. 80" x 60"
3. 68" x 36"
4. 74" x 37"

Features

13" wheels
Electric brakes
4 Crank-down stabilizing jacks

...as well as these features standard with the MAC series:

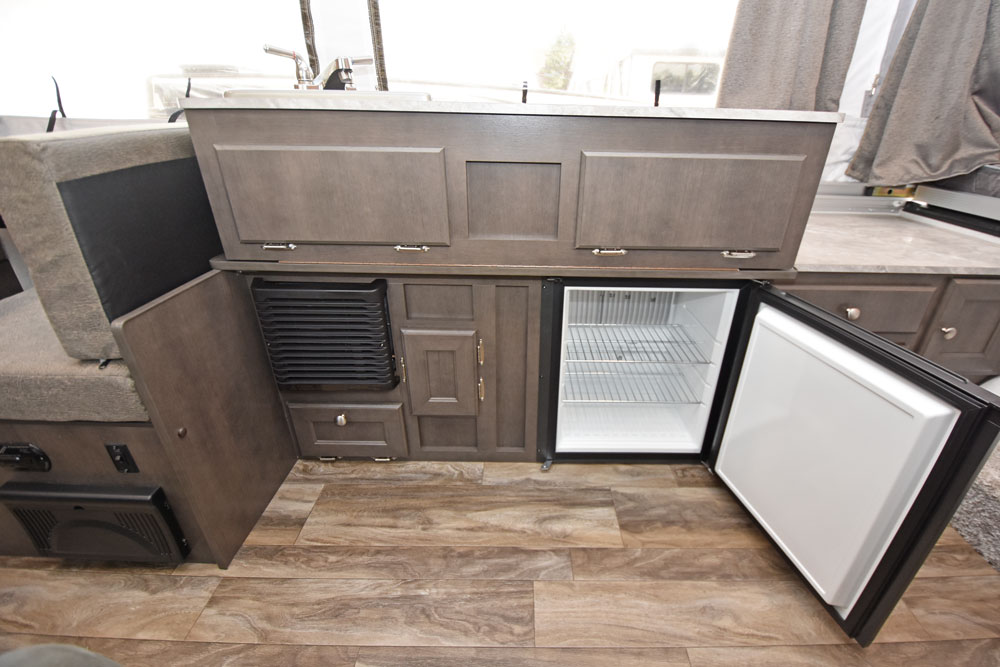

1.7 cu. ft. 12V refrigerator (standard starting in 2023)
Suburban 19,000 BTU furnace with automatic ignition

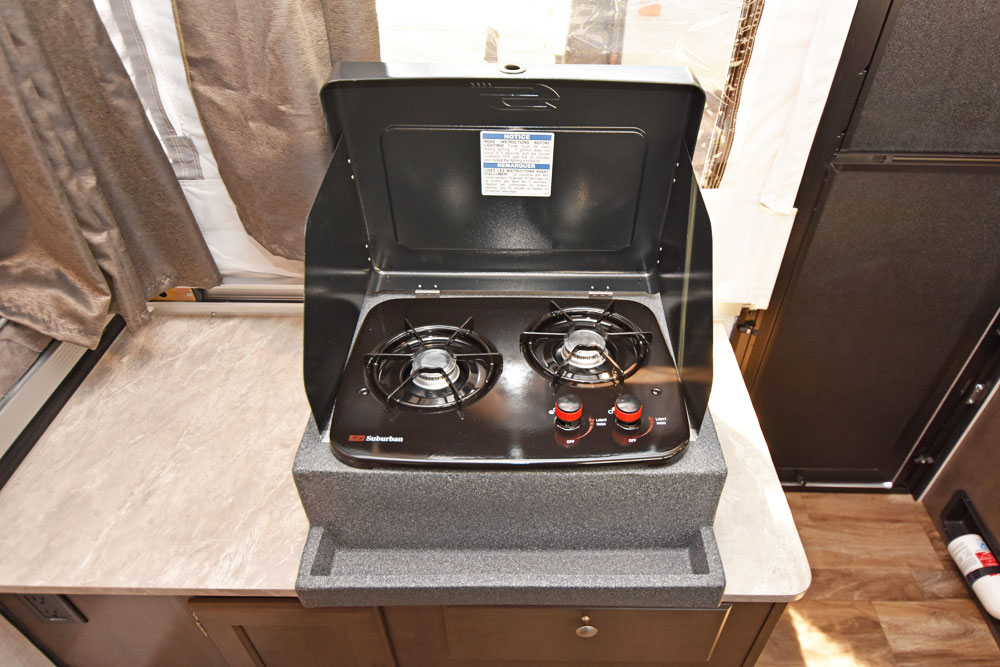

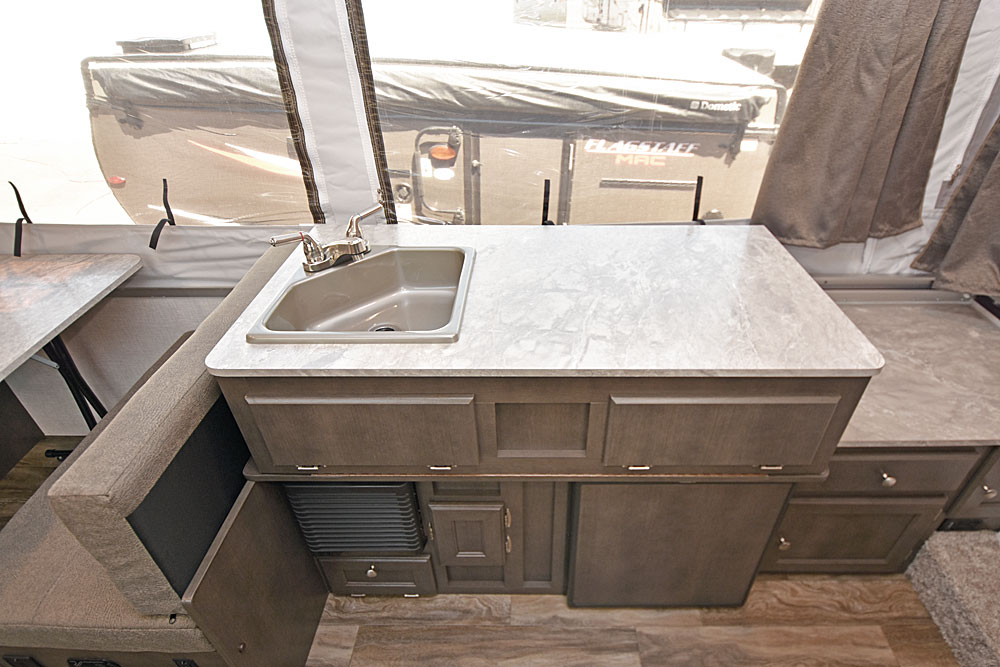

Interior/Exterior 2-burner stove

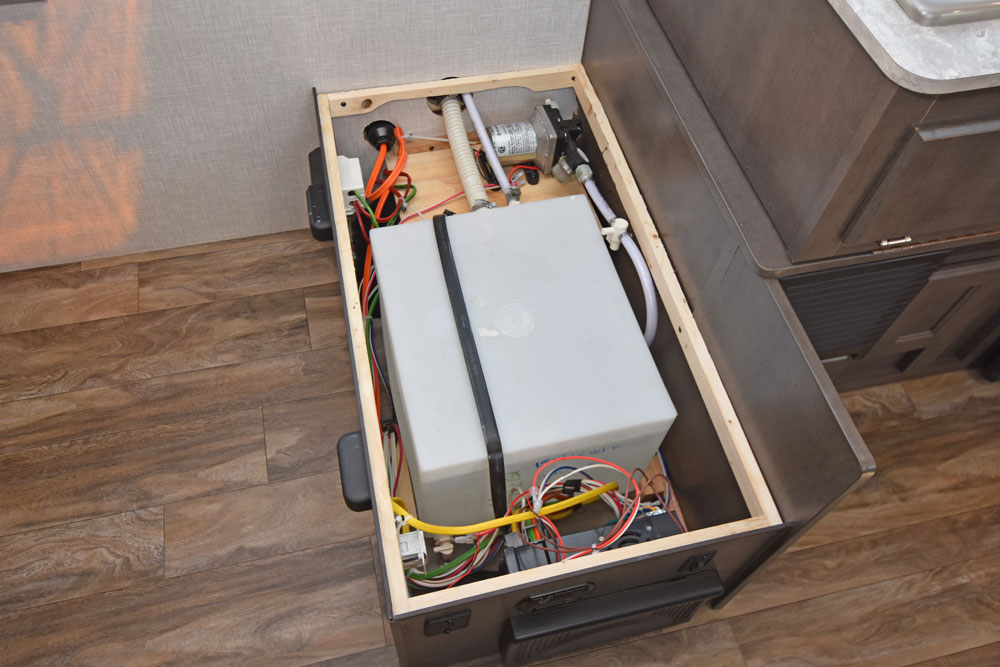

10-gallon water tank
Group 27 battery pack
110V heated 3.5" foam mattresses
Privacy curtains

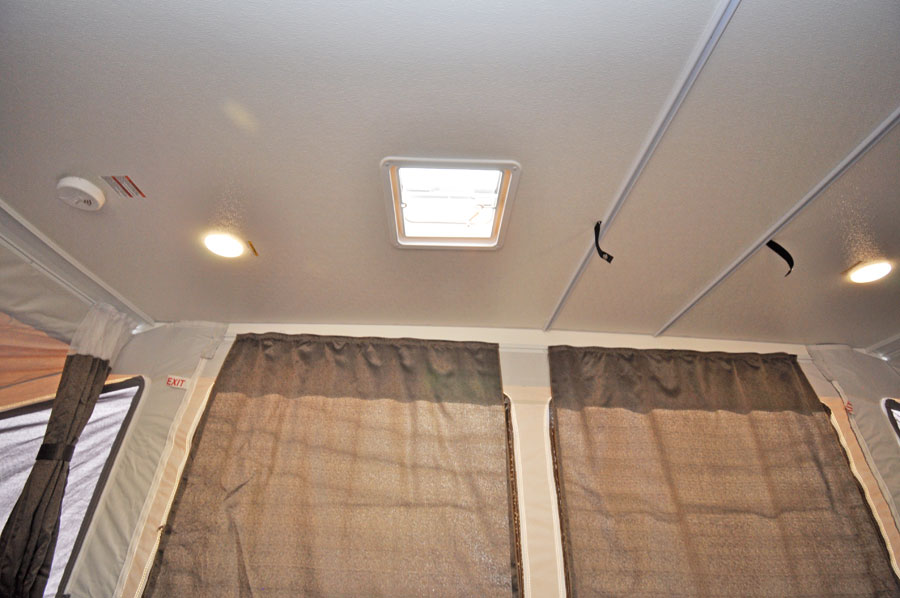

Standard roof vent
1-piece door
Dometic Trim Line awning

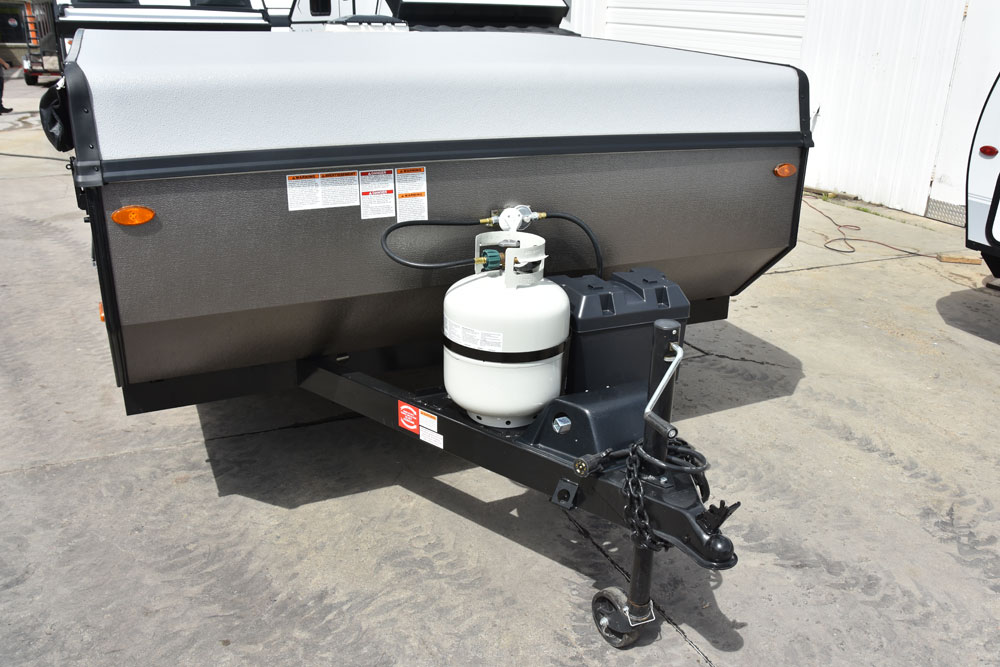

20# propane tank
Steel spare tire
100W solar panel (standard in 2023)

(Other features and minutiae detailed in Standard Features)

Comparable Models

228BHSE - Nearly identical layout but in the SE series and with a 2' metal deck on the front.
206LTD - The next size down in the LTD series, with a 10' box.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
