Flagstaff 823D (3-bed version)



(2017-2019)

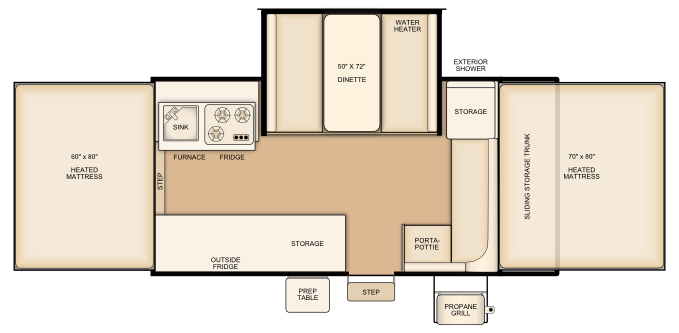

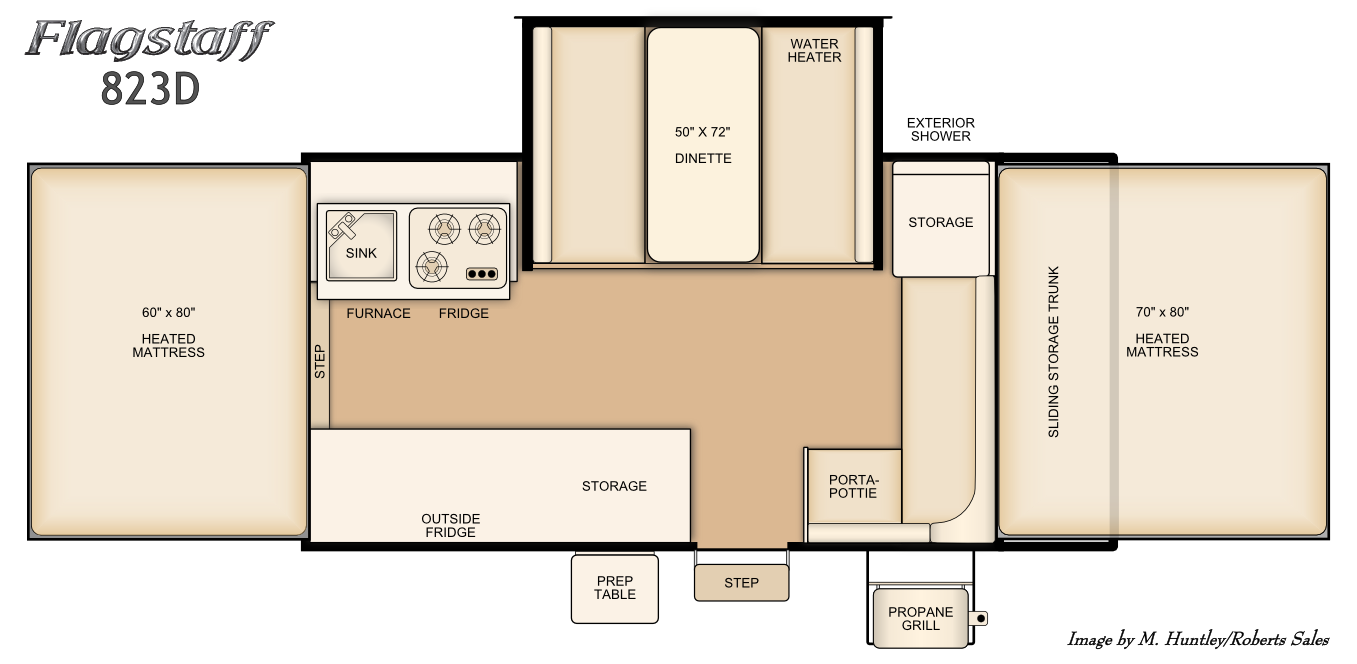

Flagstaff 823D floorplan

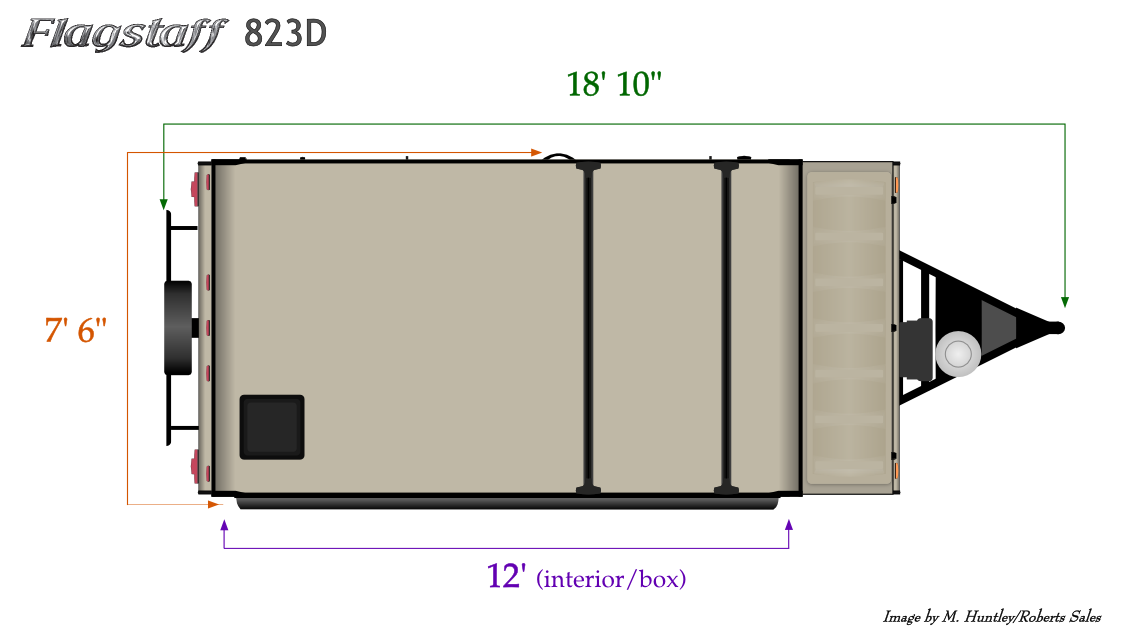

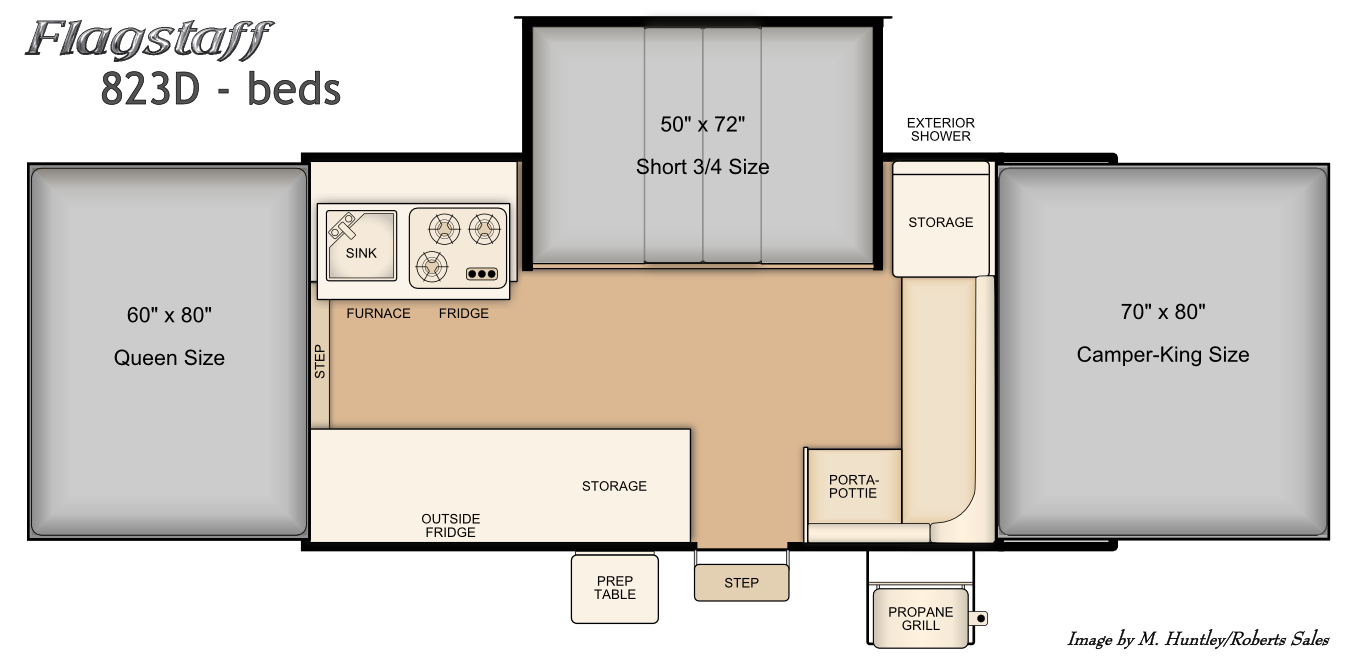

Bed Layout for this model Flagstaff 823D travel length and width

Highlights

  • A 425D clone with exterior cube fridge access instead of a bay window galley.
  • One of two Flagstaff campers with an exterior access door that leads to an outside fridge (110V only for the cube fridge); the 627D is the other.
  • 110V cube fridge (accessed through the exterior baggage door on the rear door-side panel, runs on 110V power only) --perfect for tailgating.

Specifications

  • Box Size: 12'
  • Open Length: 23' 9"
  • Travel Length: 18' 10"
  • Travel Width: 7' 6"
  • Dry Weight: 2795 lbs (brief weight explanation)
  • Hitch Weight: 292 lbs
  • GVWR: 3292 lbs
  • Coupler size: 2"
  • Sleeps: 6
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 50"

Features

  • Front storage trunk with sliding tray

...as well as these features standard with the Classic series:

  • Dometic 2.5 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Overhead cabinet
  • Overhead wardrobe
  • Swing-down clothes rack
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • 110V heated 5" spring mattresses
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • 20# propane tank
  • 13" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 425D - Same front seat and dinette layout; a bay window replaces the large counter top.
  • 625D - Same slide-out dinette and galley layout, but with a sofa/bed and an interior shower/cassette toilet.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
