Flagstaff 228 with shower



(2000-2019)

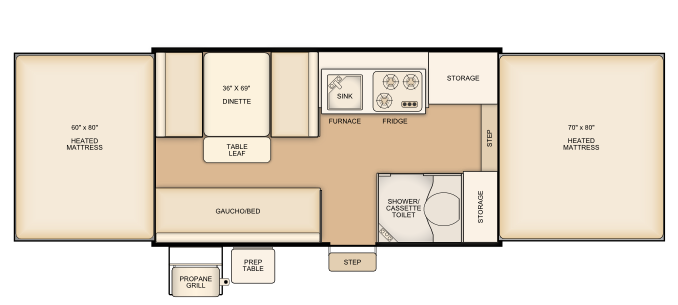

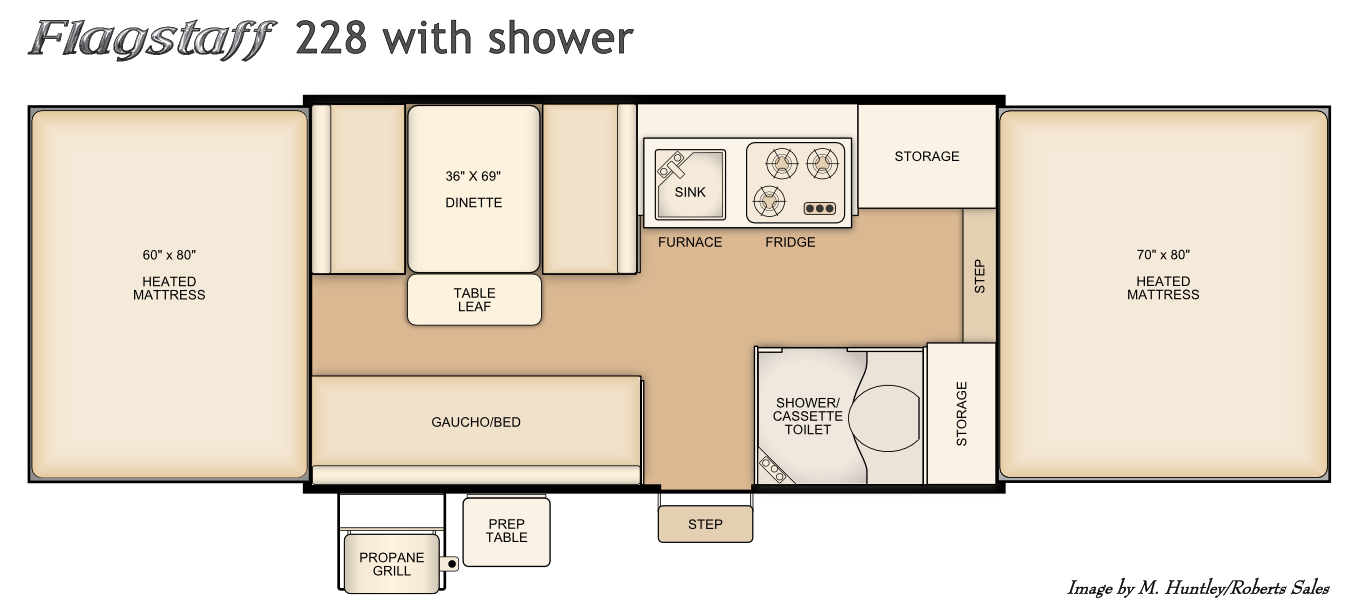

Flagstaff 228 with shower floorplan

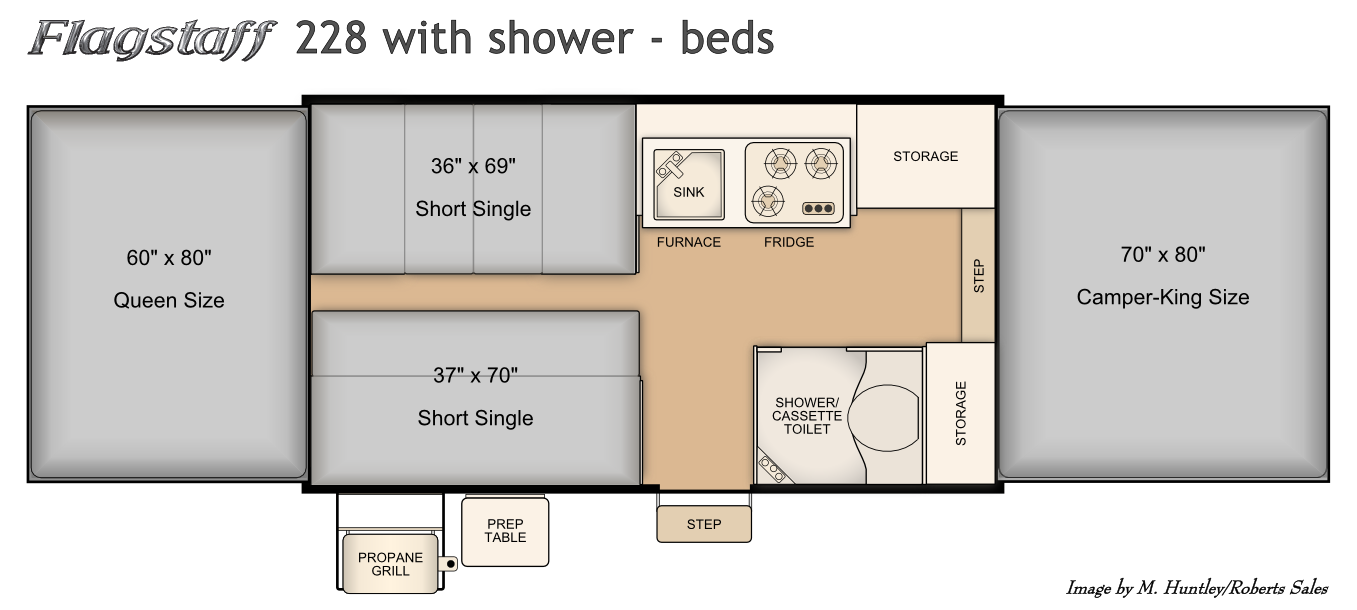

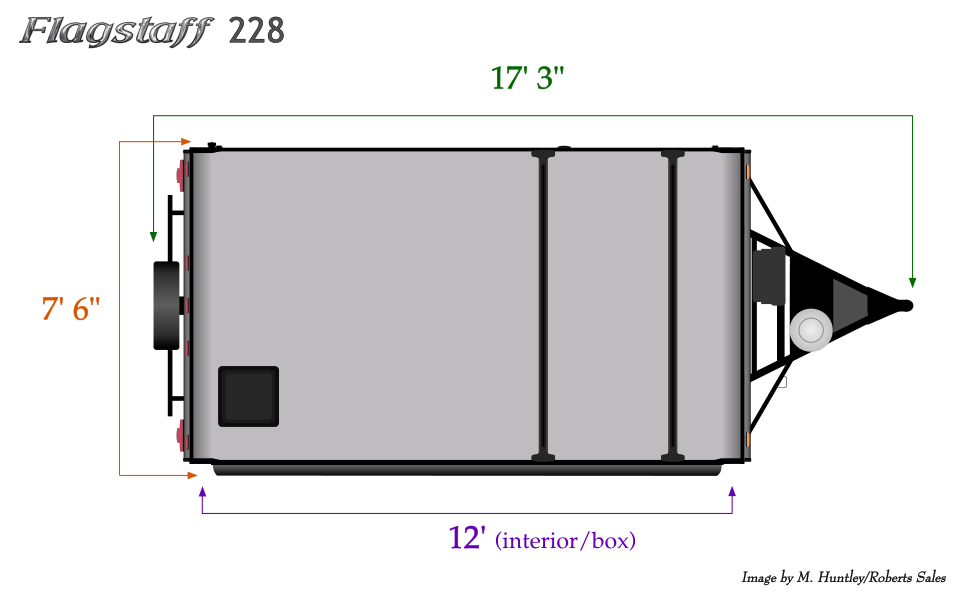

Bed Layout for this model Flagstaff 228 with shower travel length and width

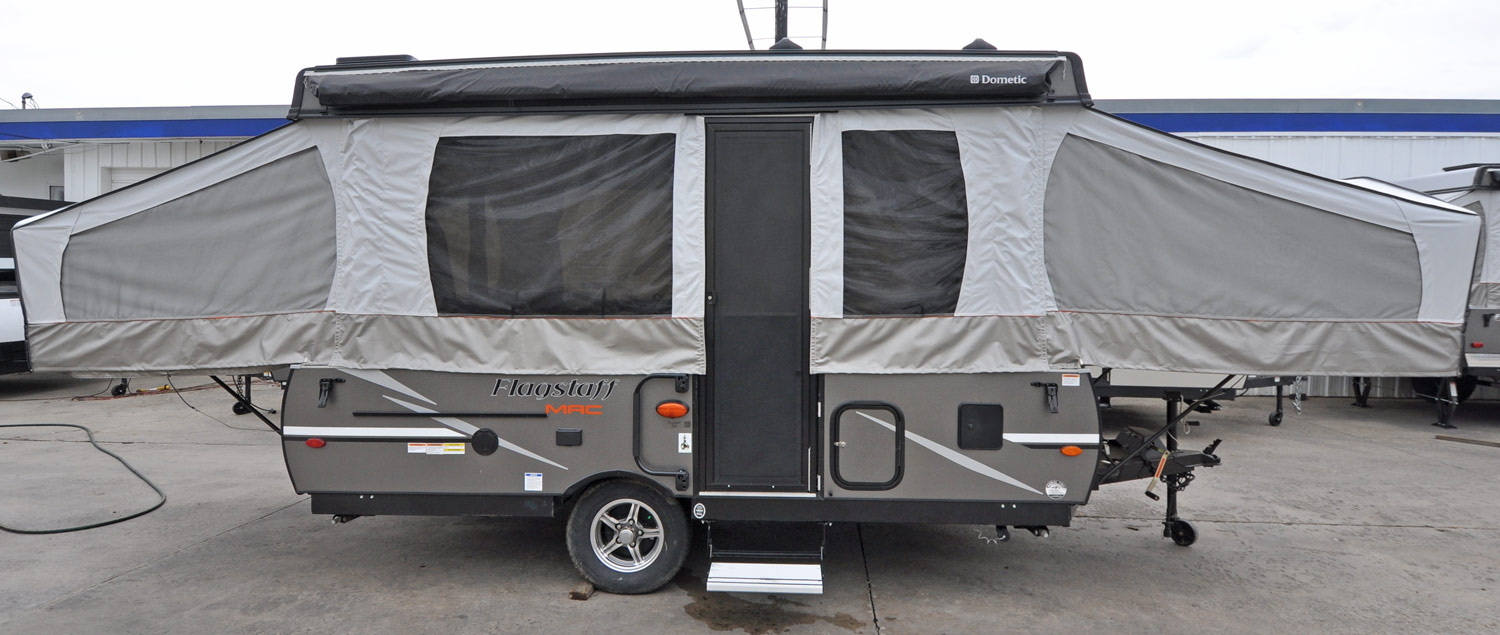

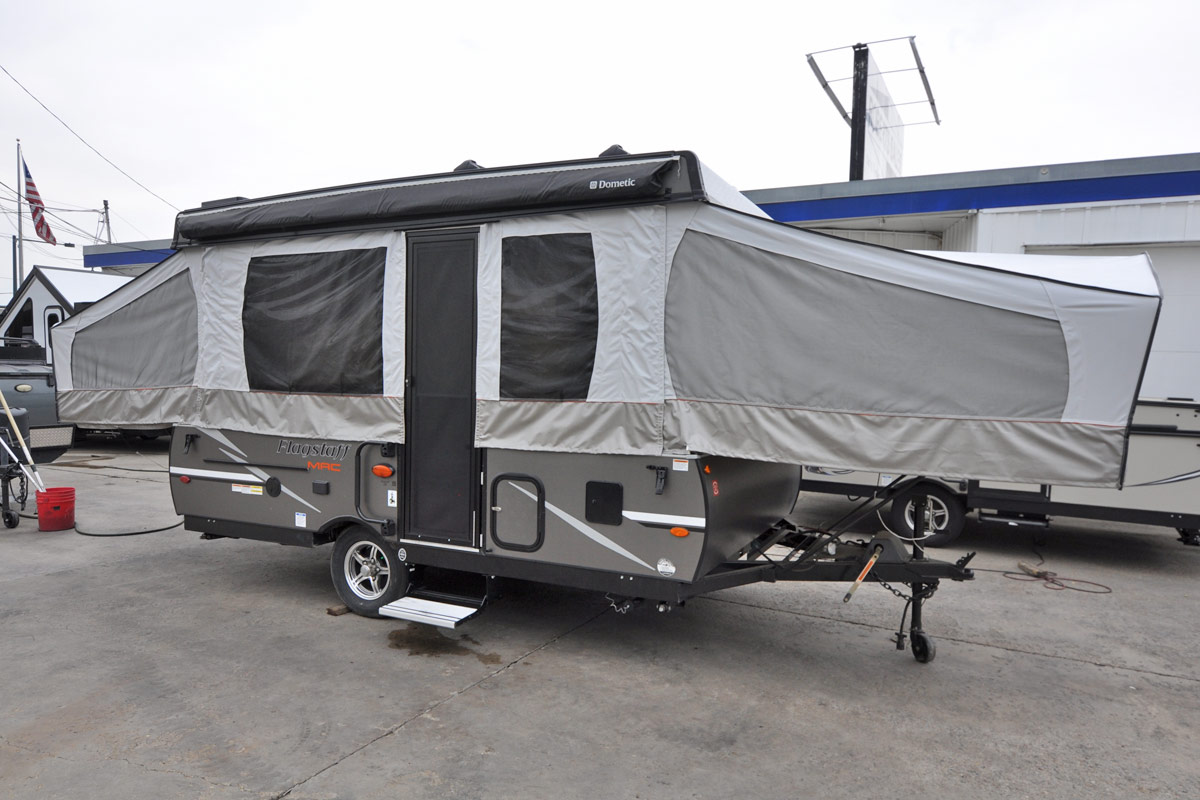

2019 Flagstaff 228 with shower exterior

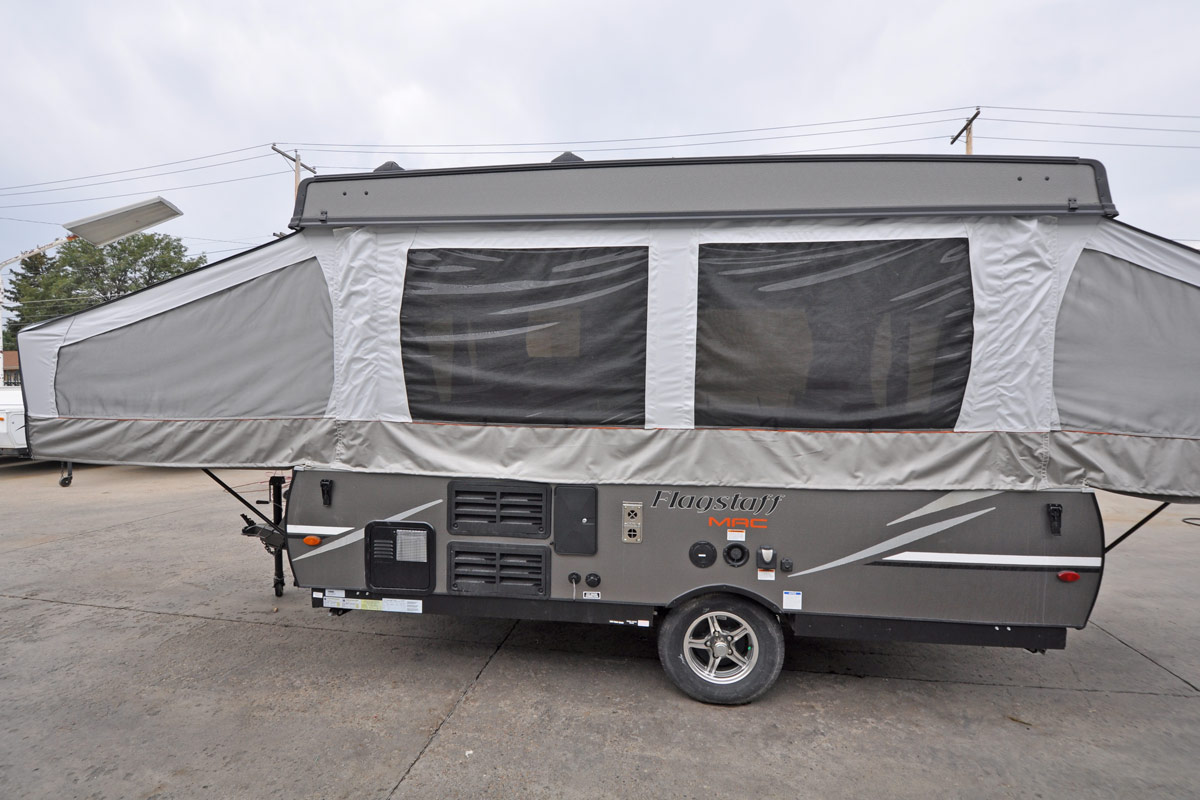

2019 Flagstaff 228 with shower front exterior 2019 Flagstaff 228 with shower back-side 2019 Flagstaff 228 with shower front view 2019 Flagstaff 228 with shower rear view

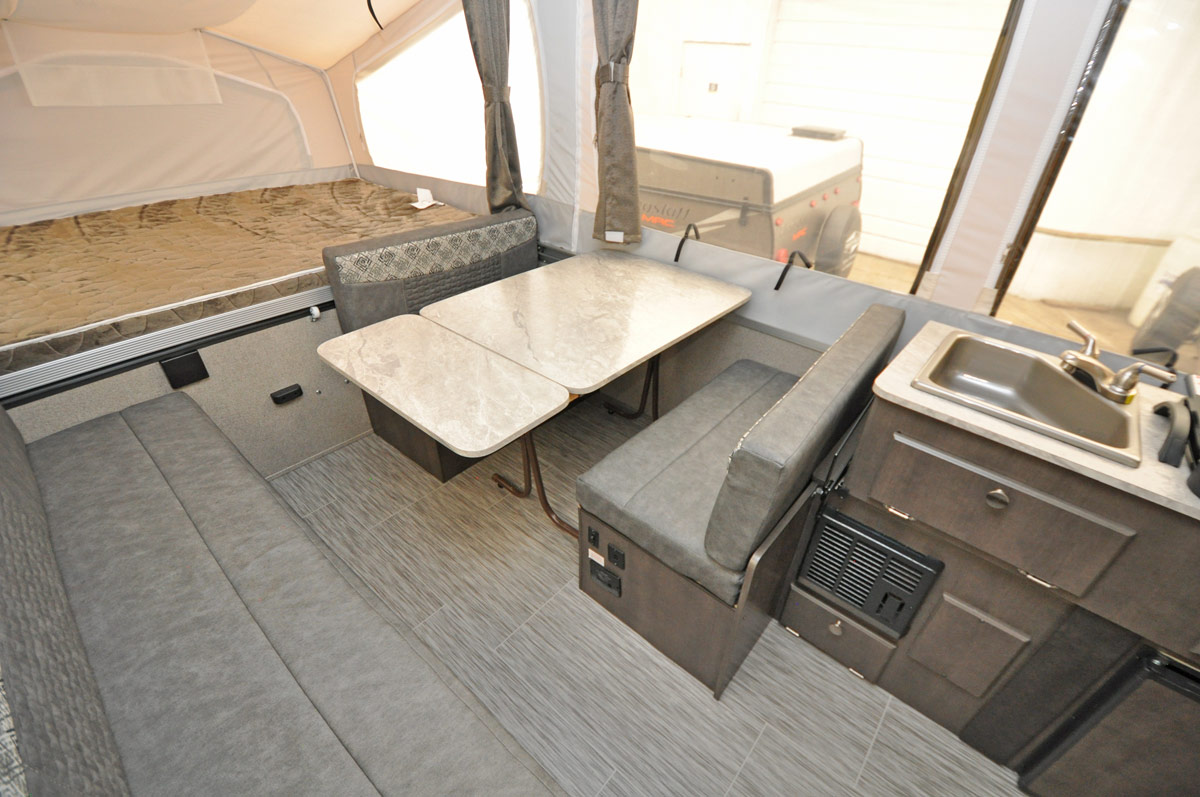

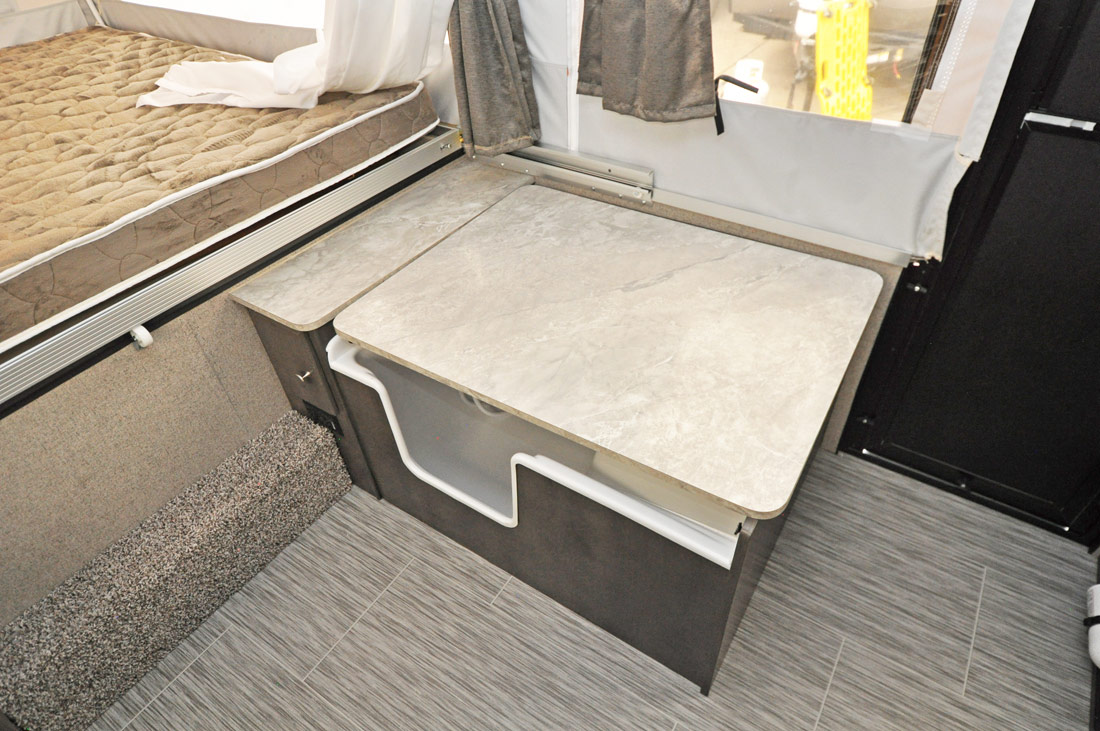

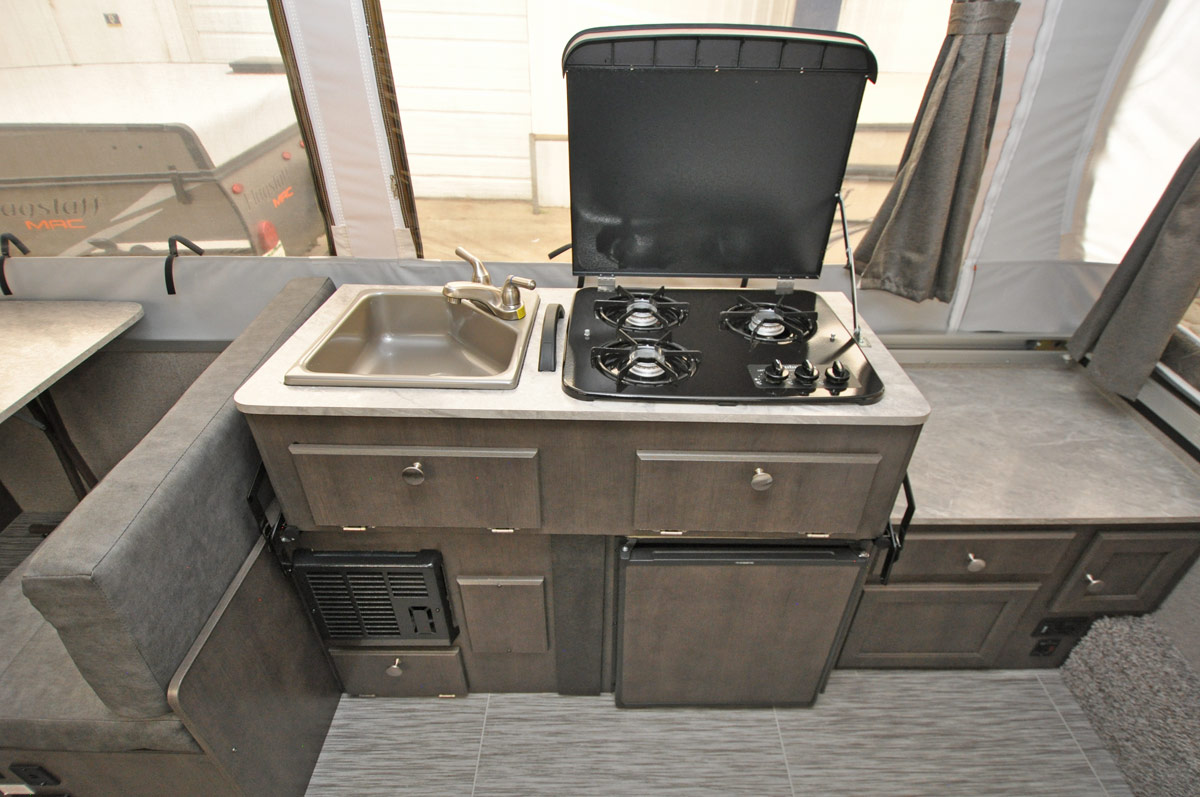

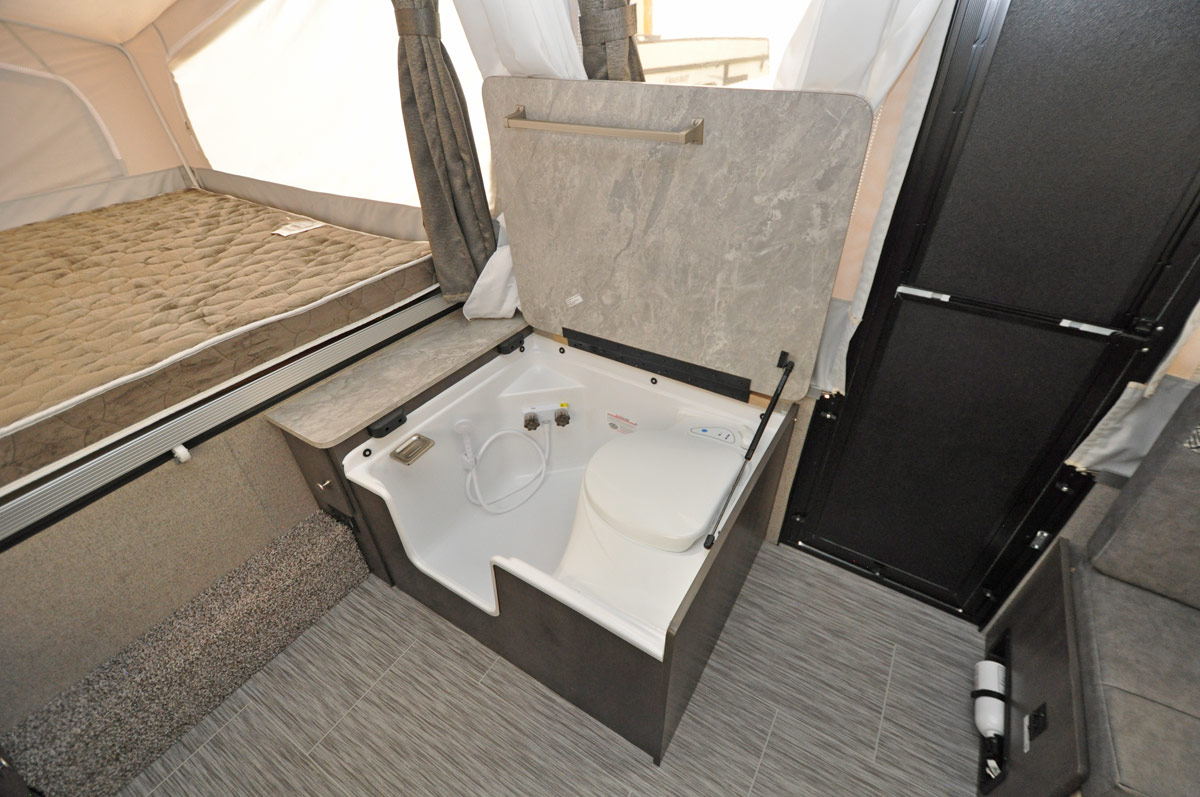

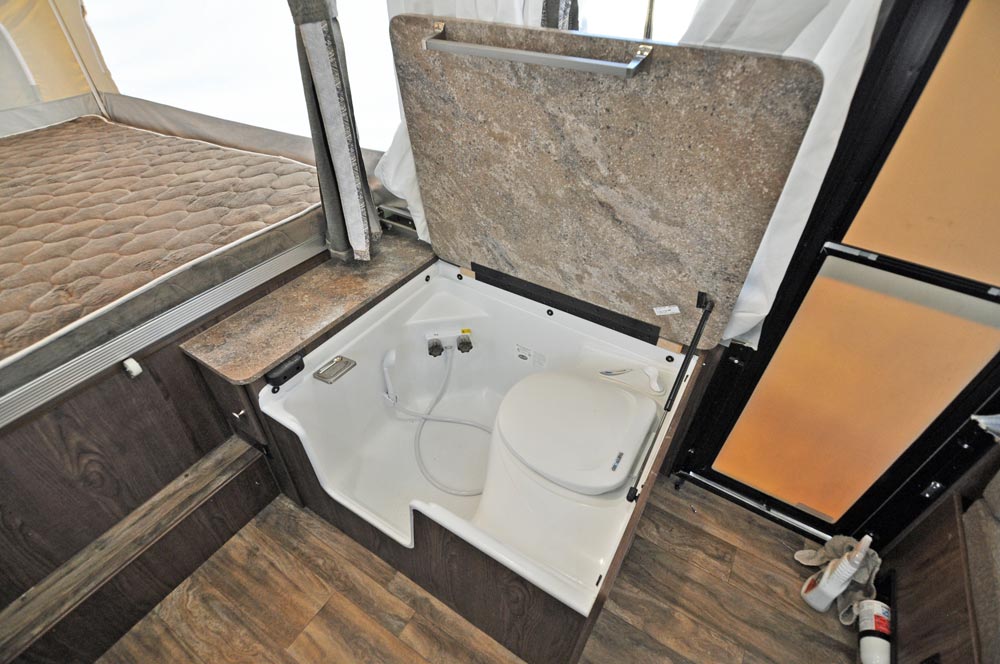

2019 Flagstaff 228 with shower galley 2019 Flagstaff 228 with shower cassette toilet combination 2019 Flagstaff 228 with shower cassette toilet lid 2019 Flagstaff 228 with shower 3/4 view

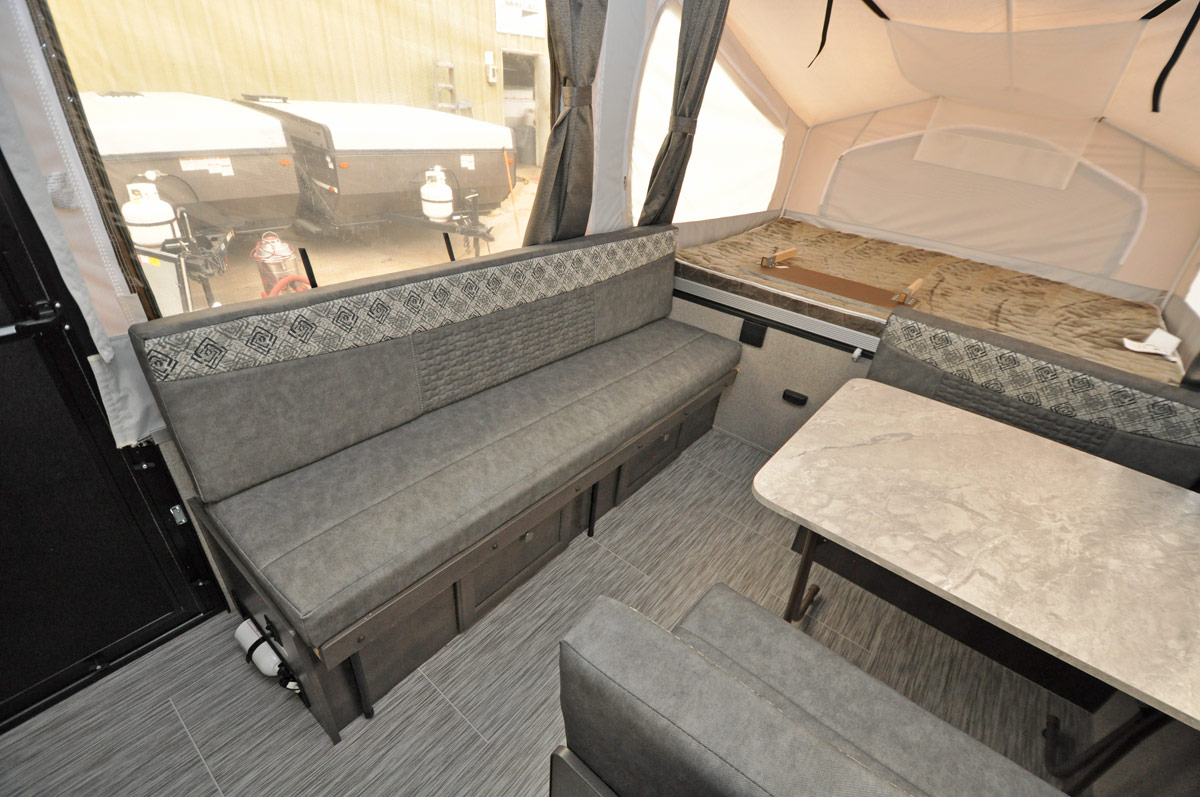

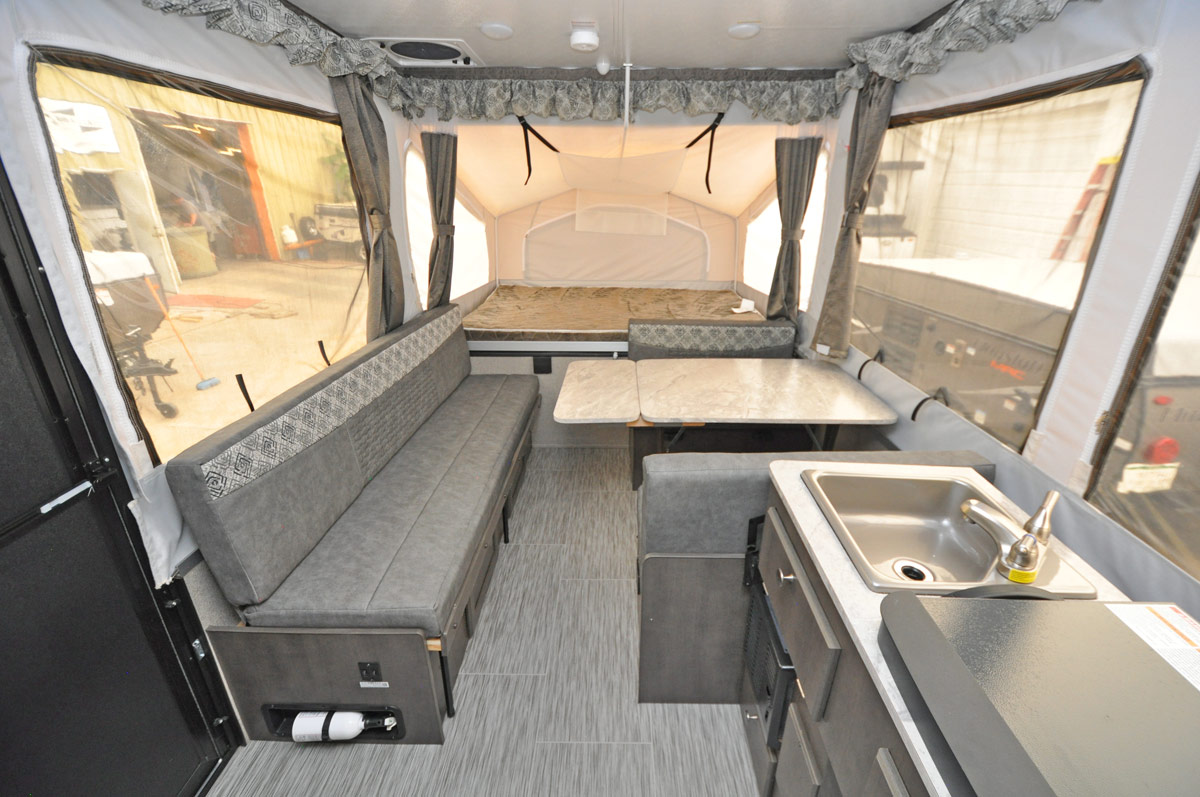

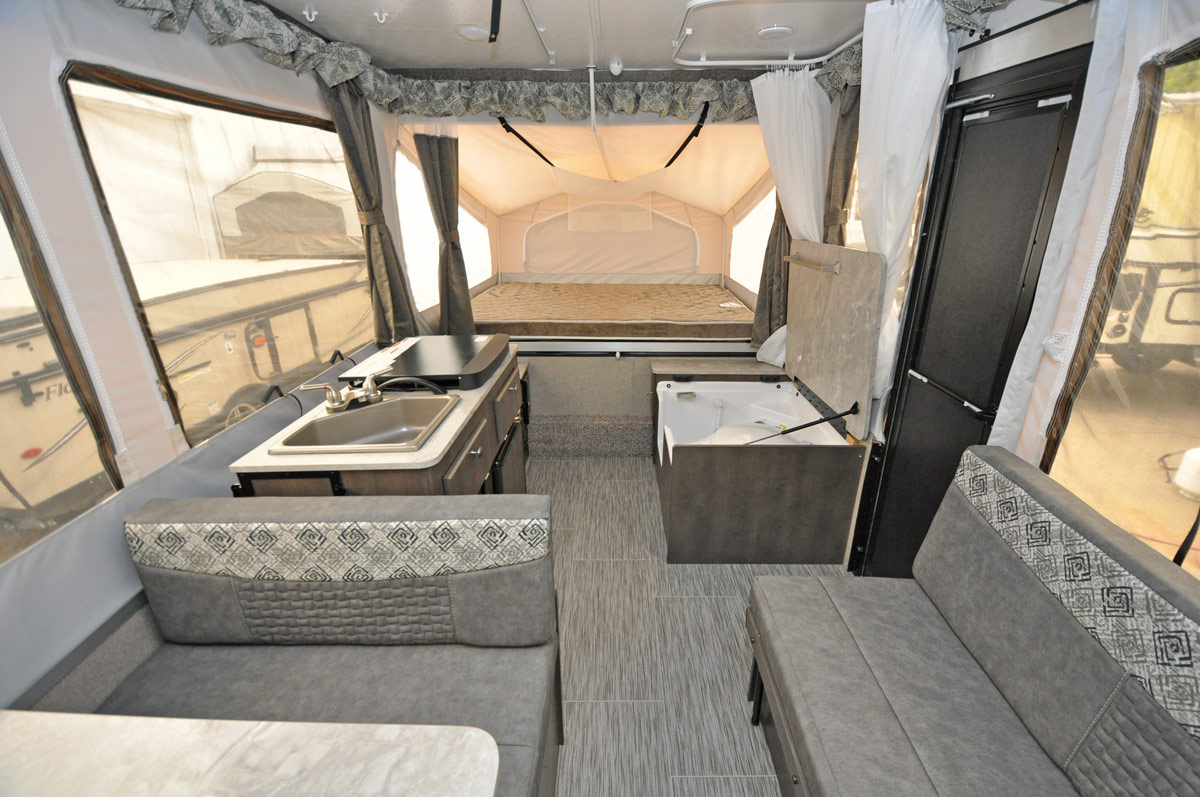

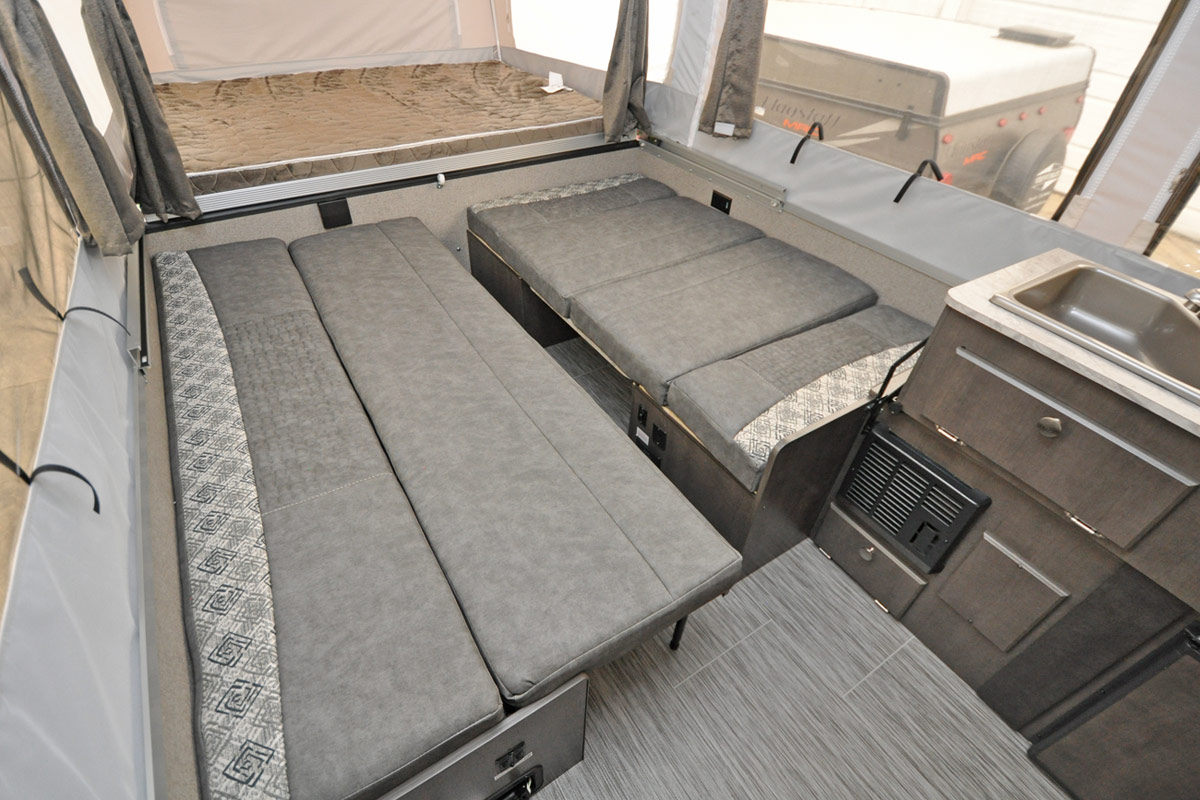

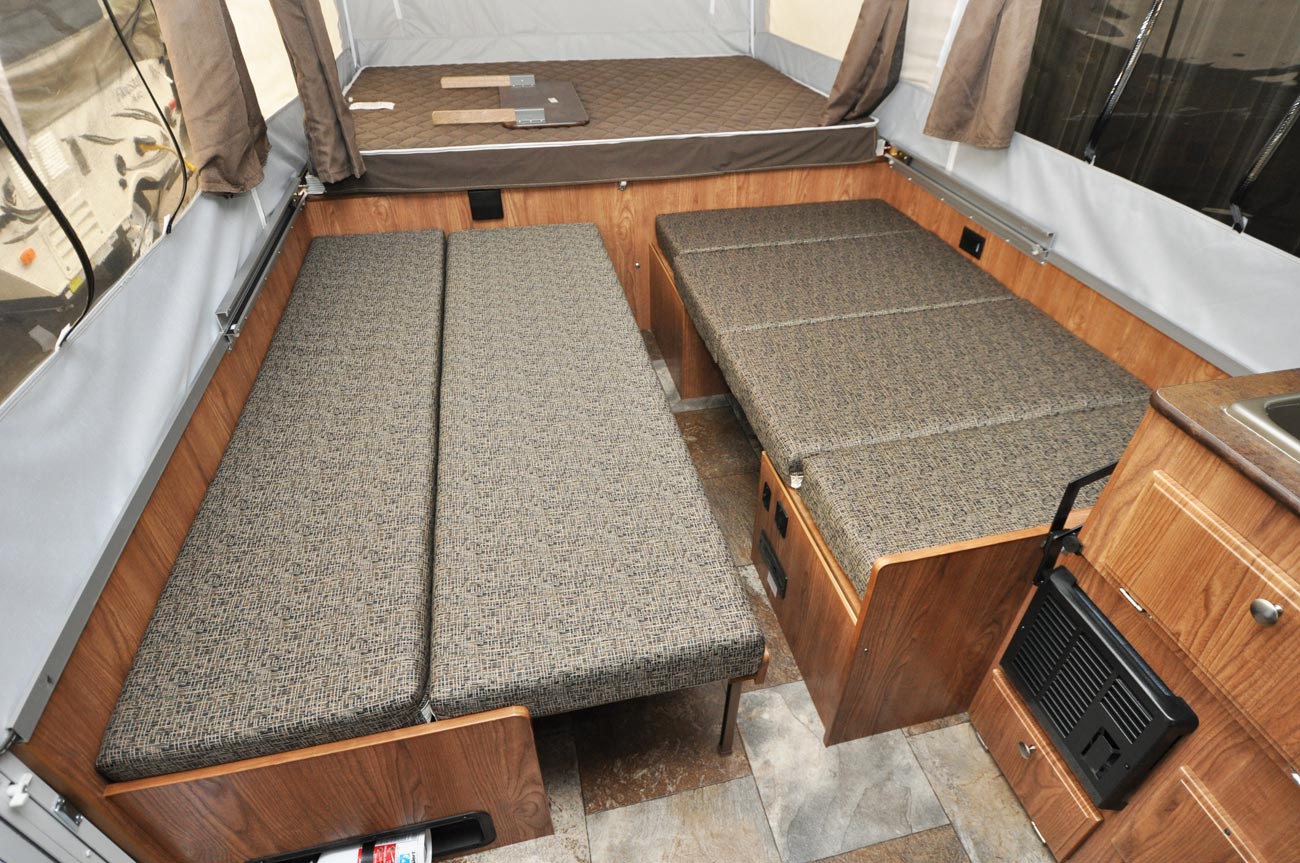

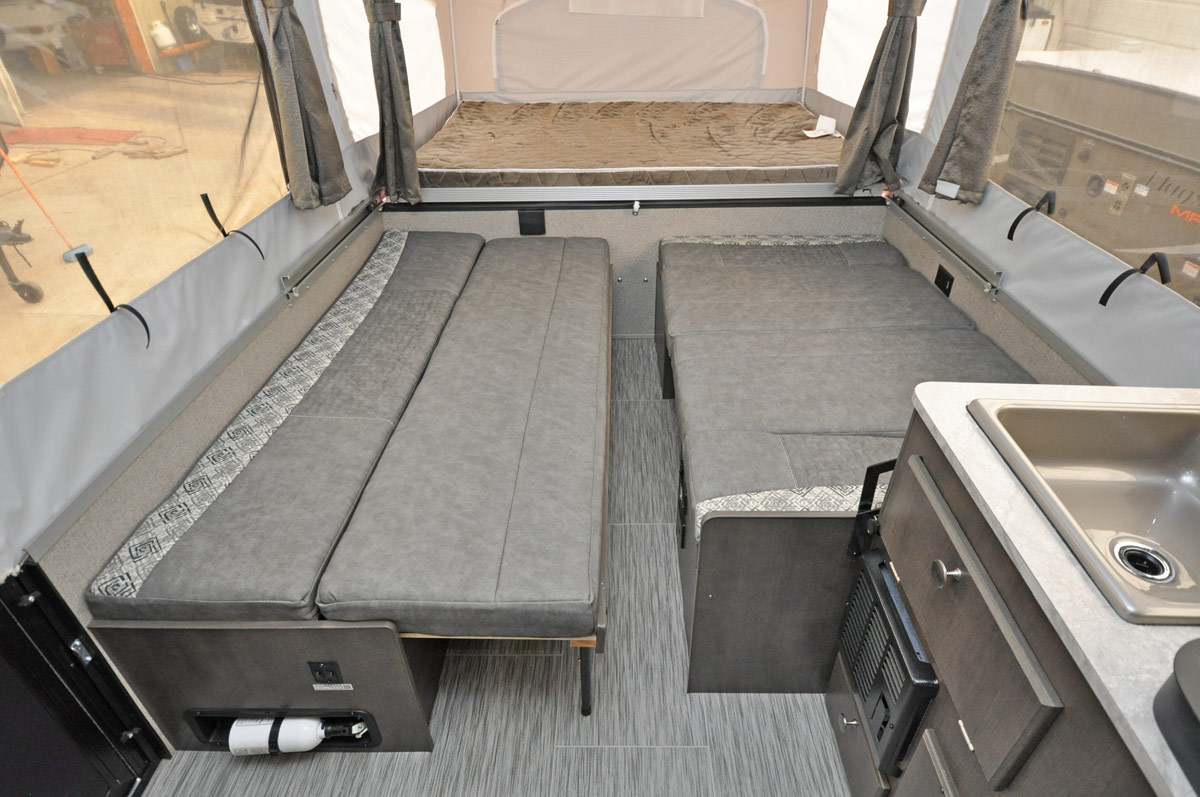

2019 Flagstaff 228 with shower reverse 3/4 view 2019 Flagstaff 228 with shower dinette and gaucho beds 2019 Flagstaff 228 with shower dinette and gaucho beds 3/4 view (2019 model year shown)

Highlights

  • The 228 floorplan with the shower/cassette toilet option installed
  • Four beds with a large dinette/sitting area
  • The dinette and gaucho together are great for shared meals and game time!
  • The full walkway from end to end makes getting to the end beds easy

Specifications

  • Box Size: 12'
  • Open Length: 23' 10"
  • Travel Length: brochure says 17' 2 "; actual (with spare tire) - 17' 3 "
  • Travel Width: 7' 6"
  • Dry Weight: 2278 lbs (brief weight explanation)
  • Hitch Weight: 289 lbs
  • GVWR: 3289 lbs
  • Coupler size: 2"
  • Sleeps: 8
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 69" x 36"
    4. 70" x 37"

Features

  • Interior shower/cassette toilet
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture

...as well as these features standard with the MAC series:

  • Dometic 1.9 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • Overhead cabinet
  • Group 27 battery pack
  • 110V heated 3.5" foam mattresses
  • Privacy curtains
  • Powered roof vent
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • Awning
  • 20# propane tank
  • 13" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

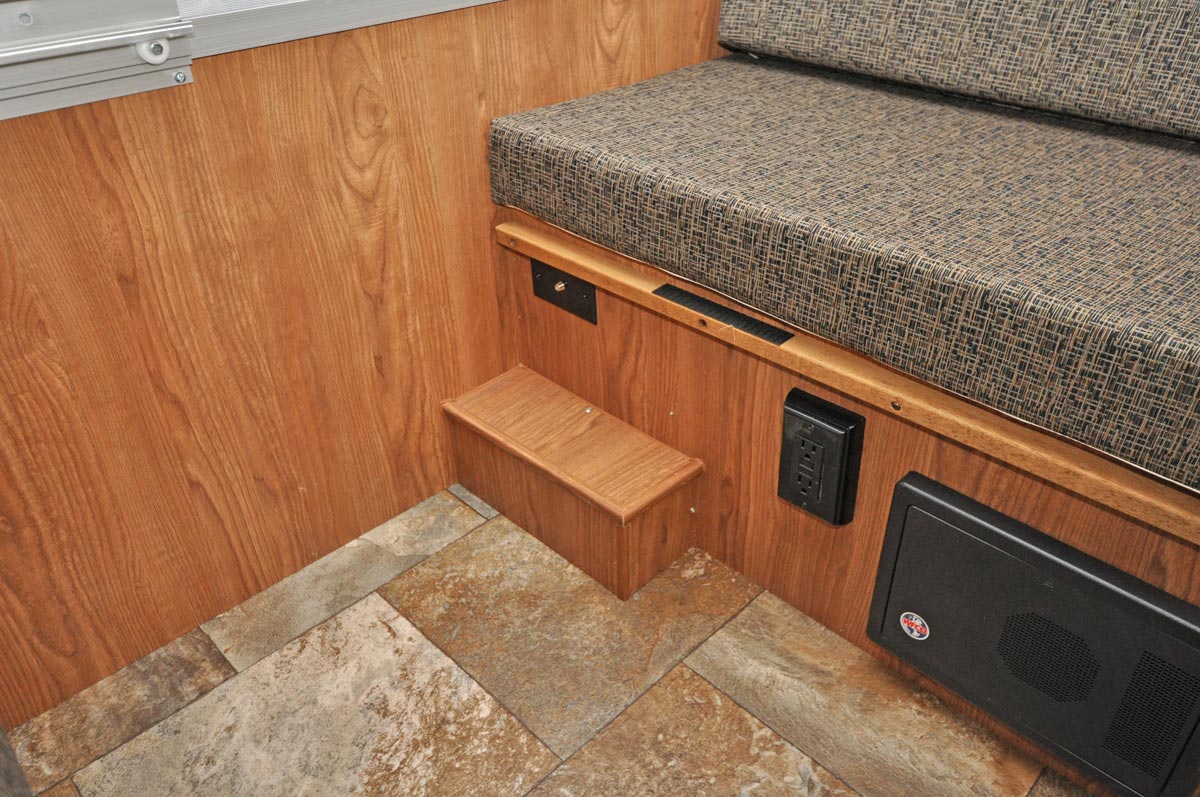

Wheel-well note: as with all 228 variants (and several others like the 206STSE), part of the wheel-well protrudes into the dinette leg-room space. This is covered by a wood box. In the 228 with shower it looks like this:

2015 Flagstaff 228 with shower wheel-well issue>

Comparable Models

  • 228D w/shower - The slide-out version of the 228D w/shower.
  • 228 - Identical layout but without the interior shower/cassette toilet.
  • 228BHSE with shower - Same interior layout but in the Sports Enthusiast series with 15" tires and wheels, stereo, gray exterior, and a 2' metal deck on the front.

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."

Back to Archives

To MAC Series

Top of Page

Older Photos

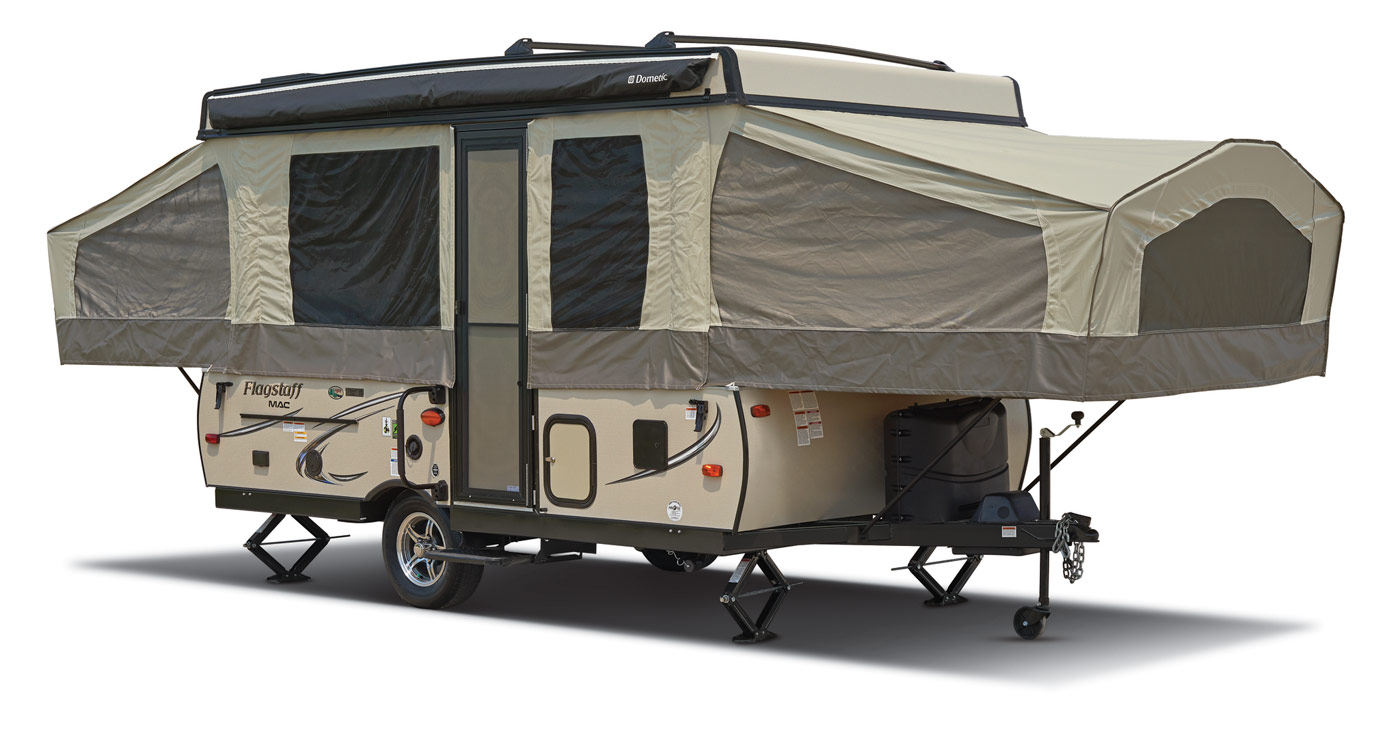

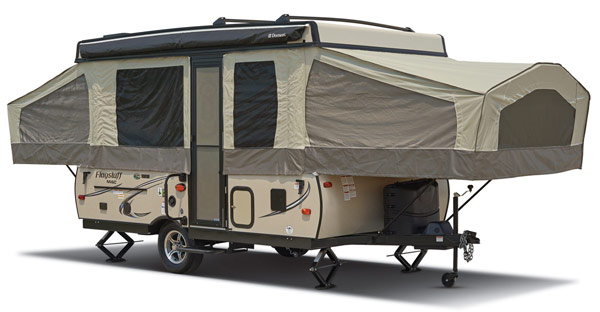

2018 Flagstaff 228 with interior shower

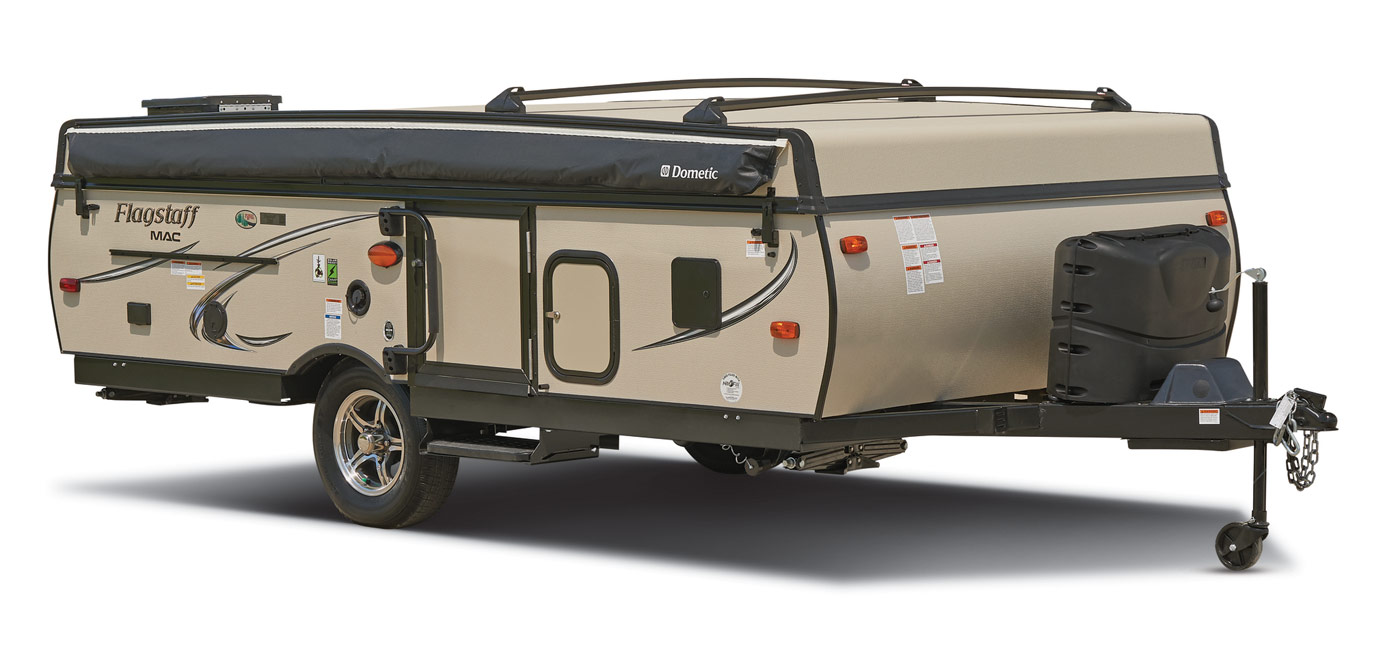

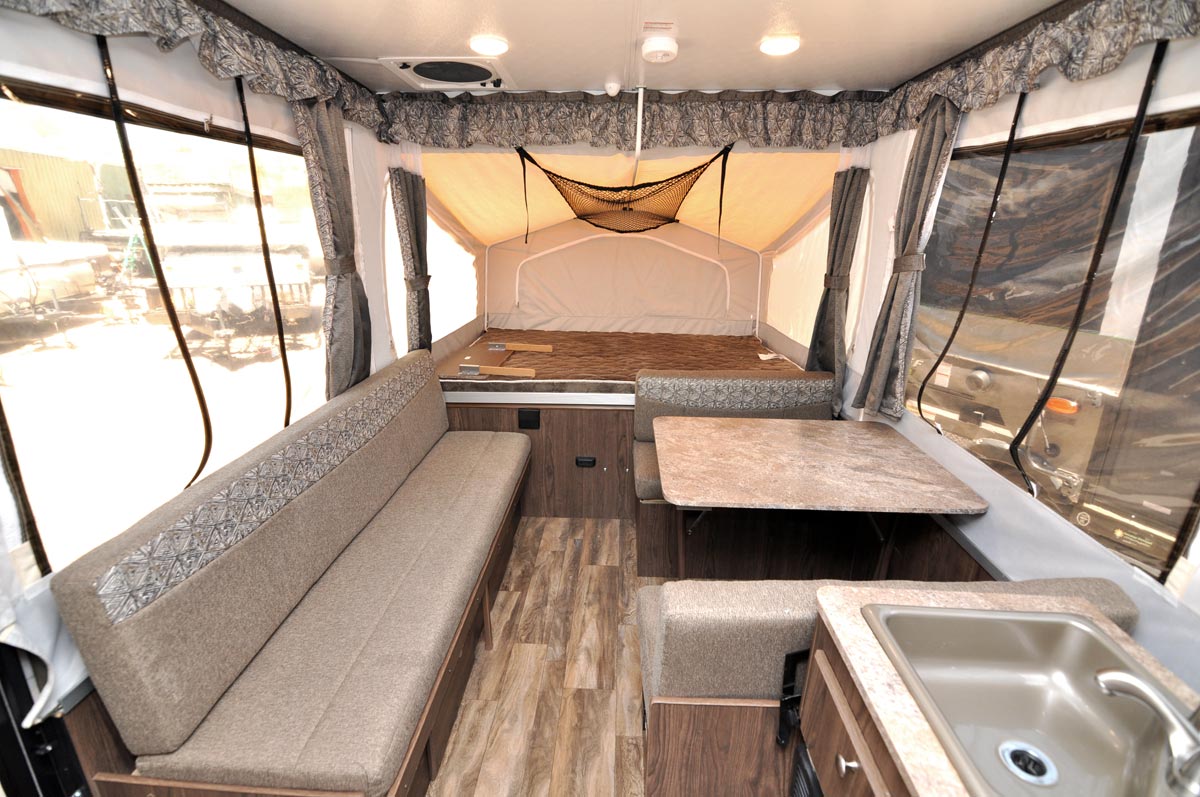

2018 Flagstaff 228 with shower down

(2018 model year shown above)

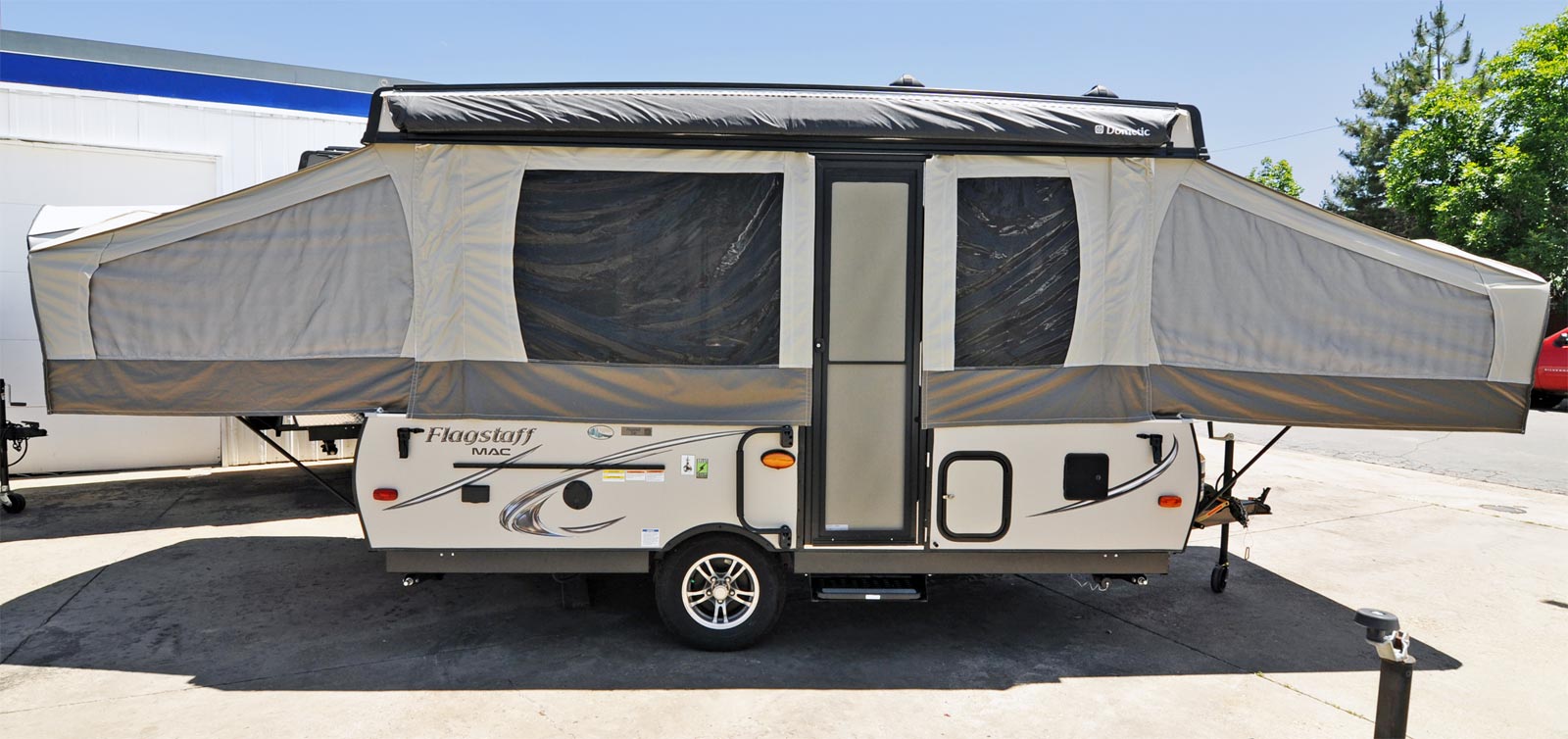

2018 Flagstaff 228 with interior shower exterior

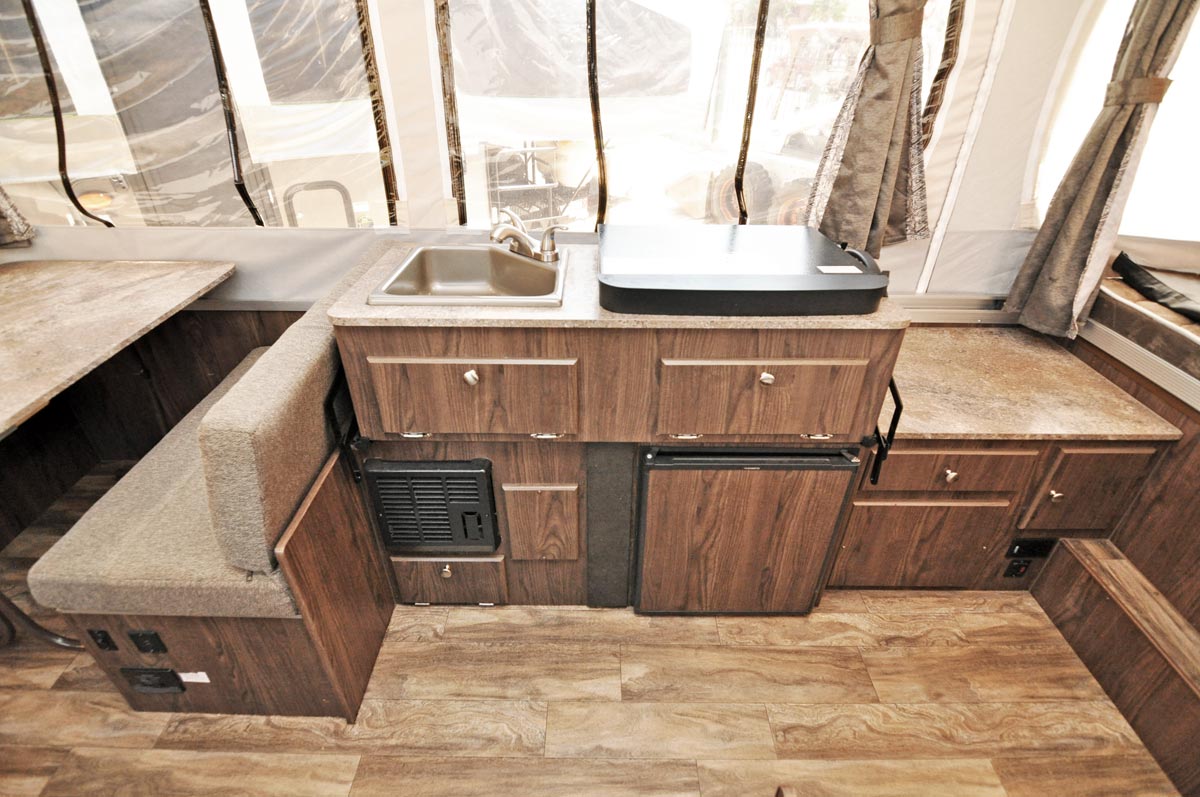

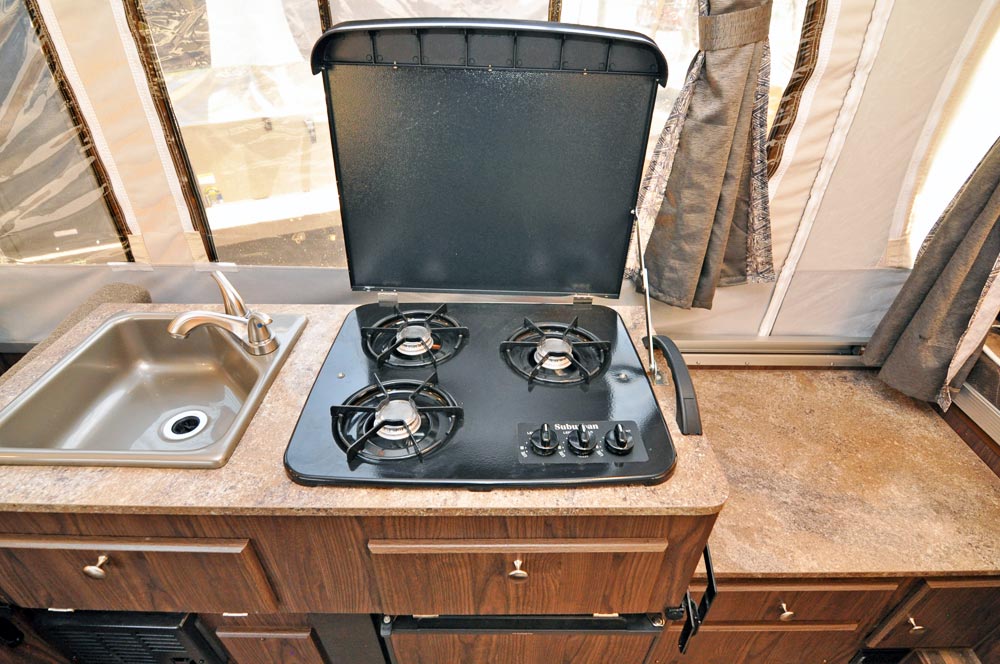

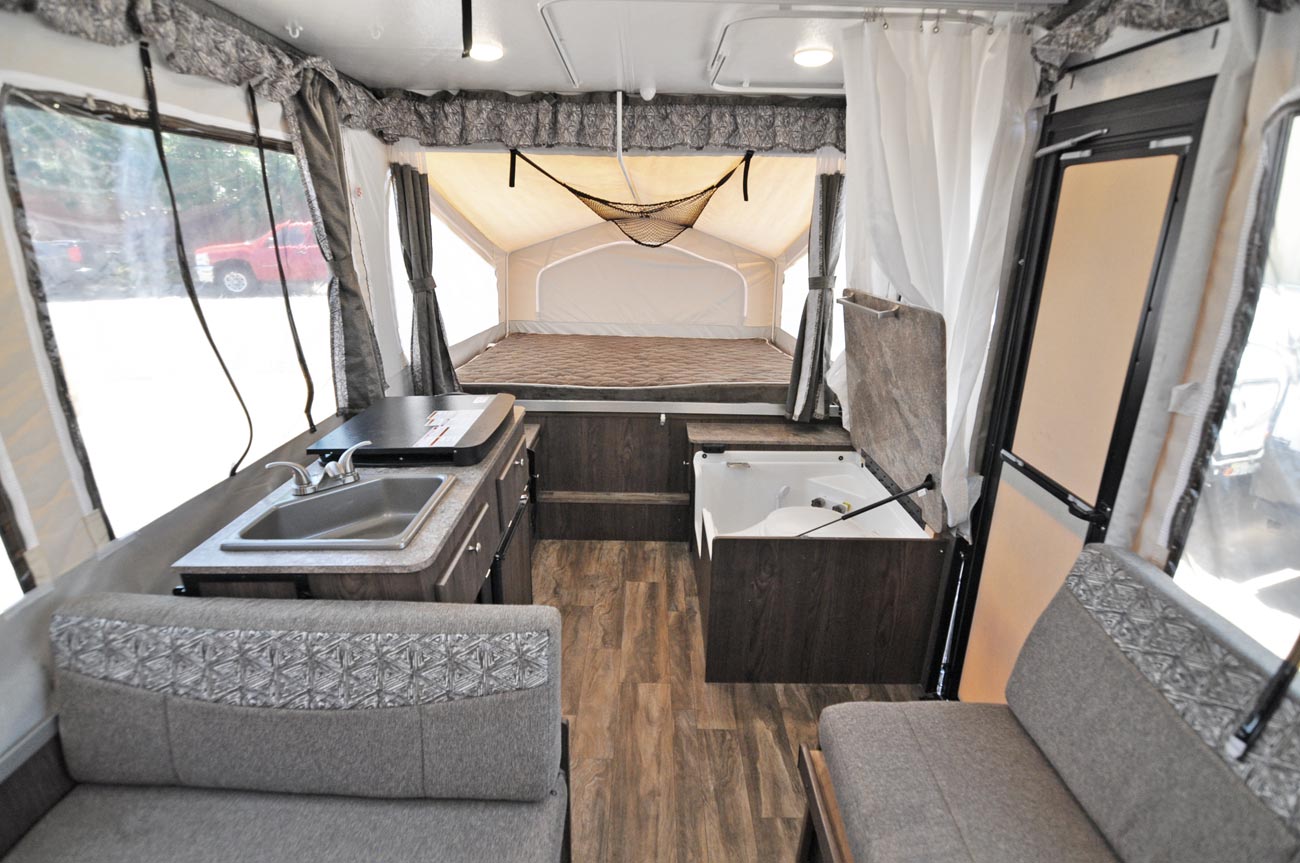

2018 Flagstaff 228 with interior shower front view 2018 Flagstaff 228 with interior shower rear view 2018 Flagstaff 228 with interior shower galley 2018 Flagstaff 228 with interior shower stove

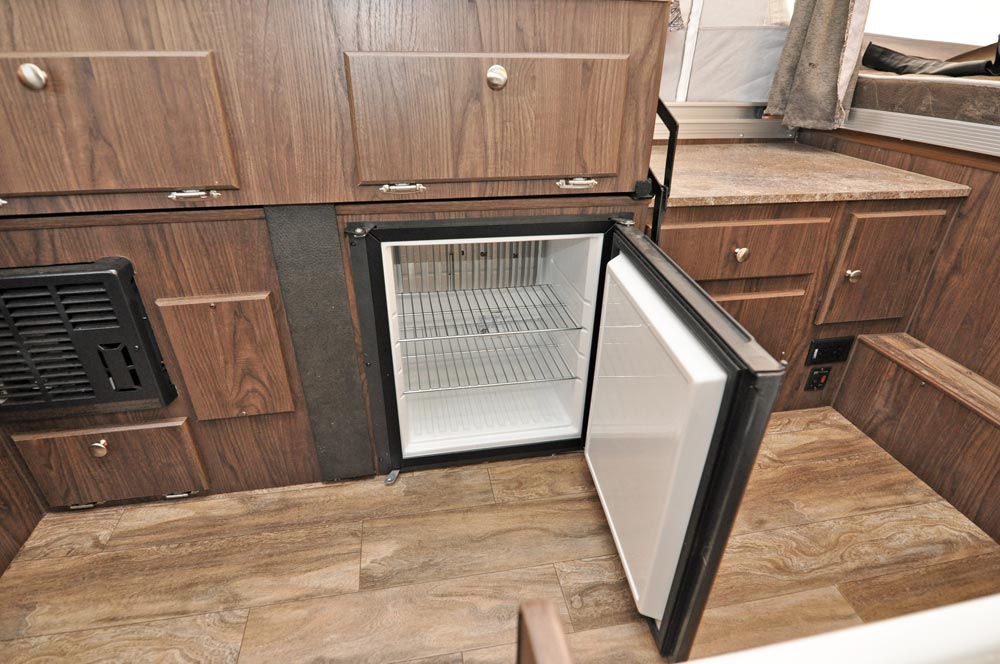

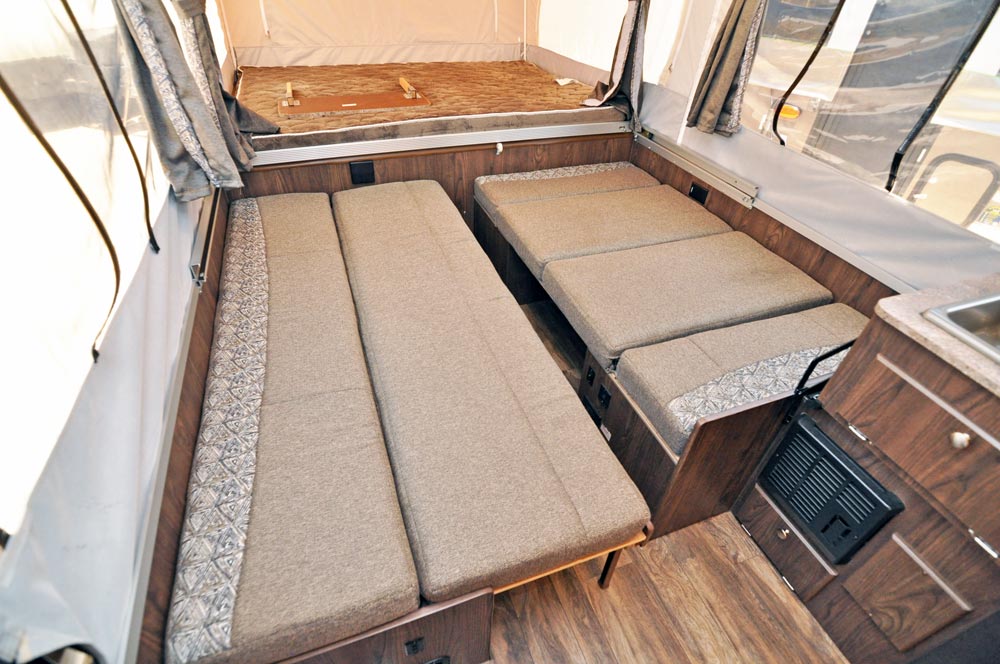

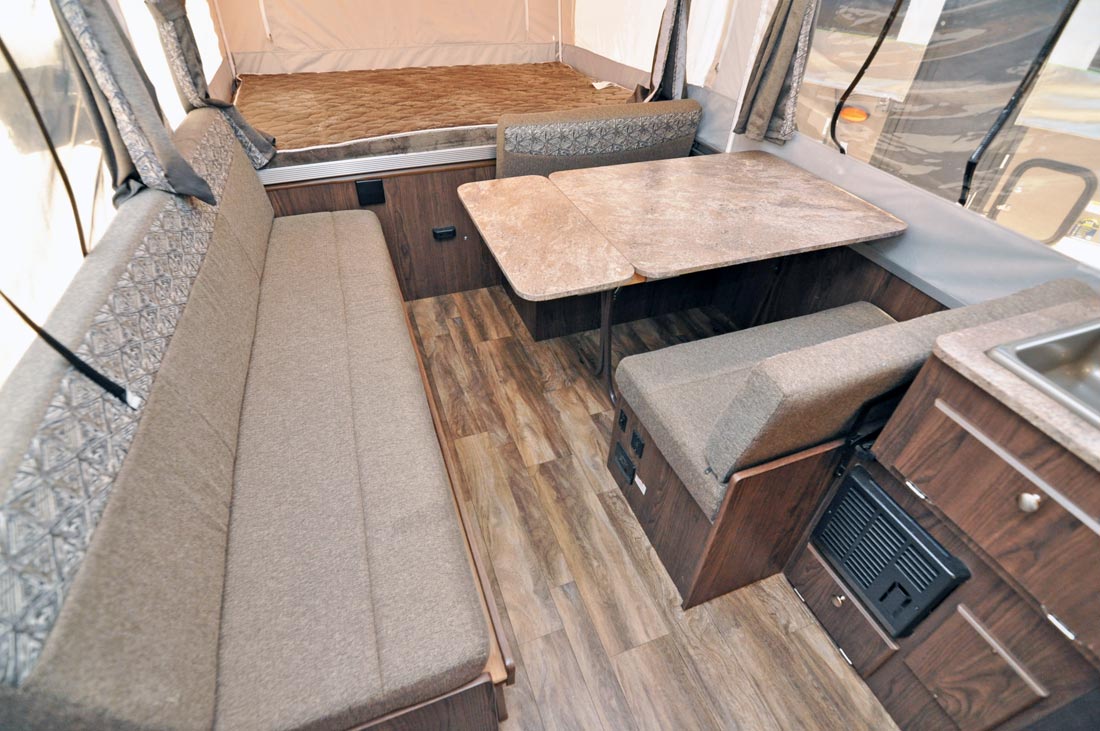

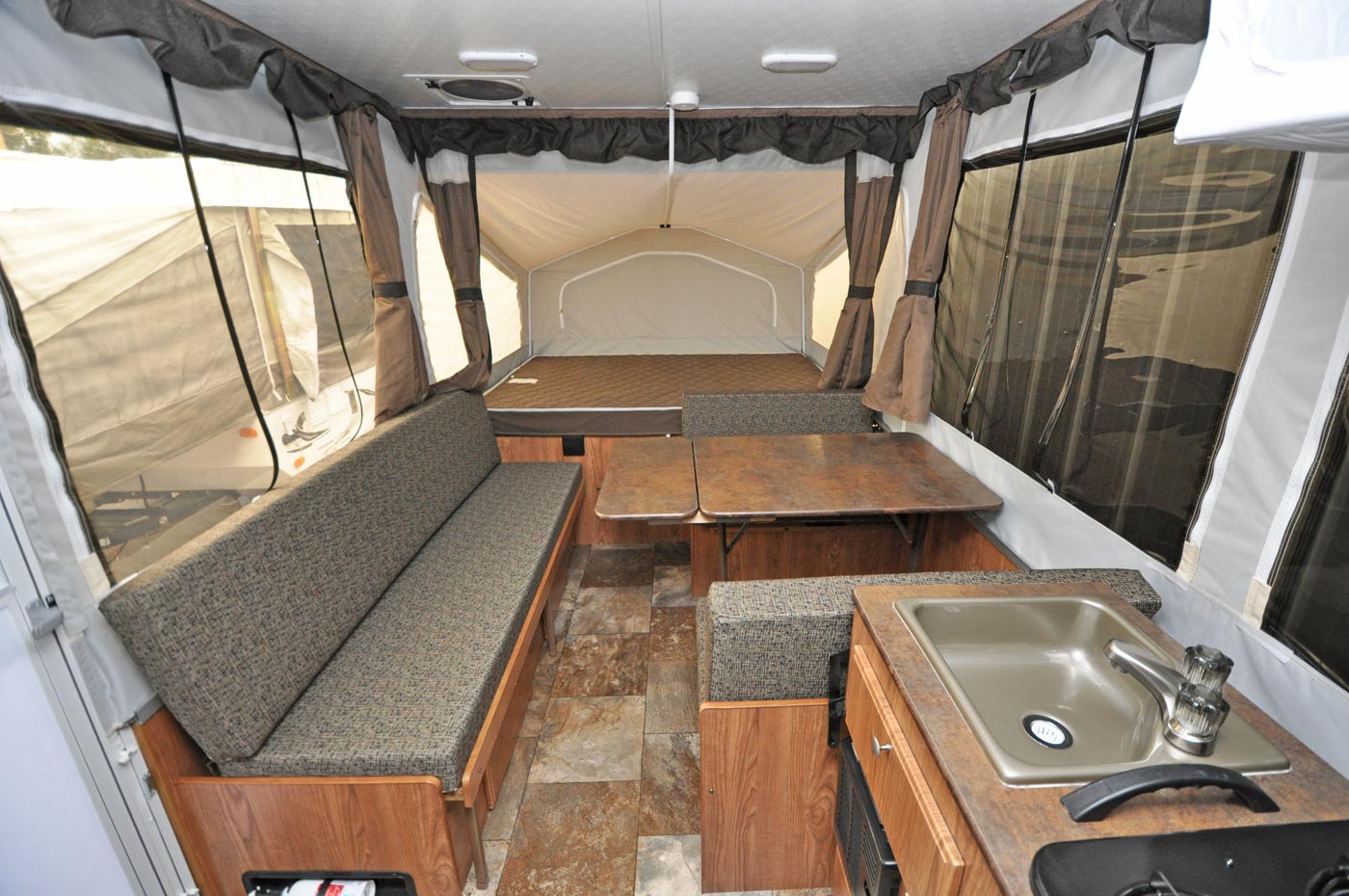

2018 Flagstaff 228 with interior shower cassette toilet and shower 2018 Flagstaff 228 with interior shower fridge 2018 Flagstaff 228 with interior shower dinette 2018 Flagstaff 228 with interior shower dinette and gaucho as beds

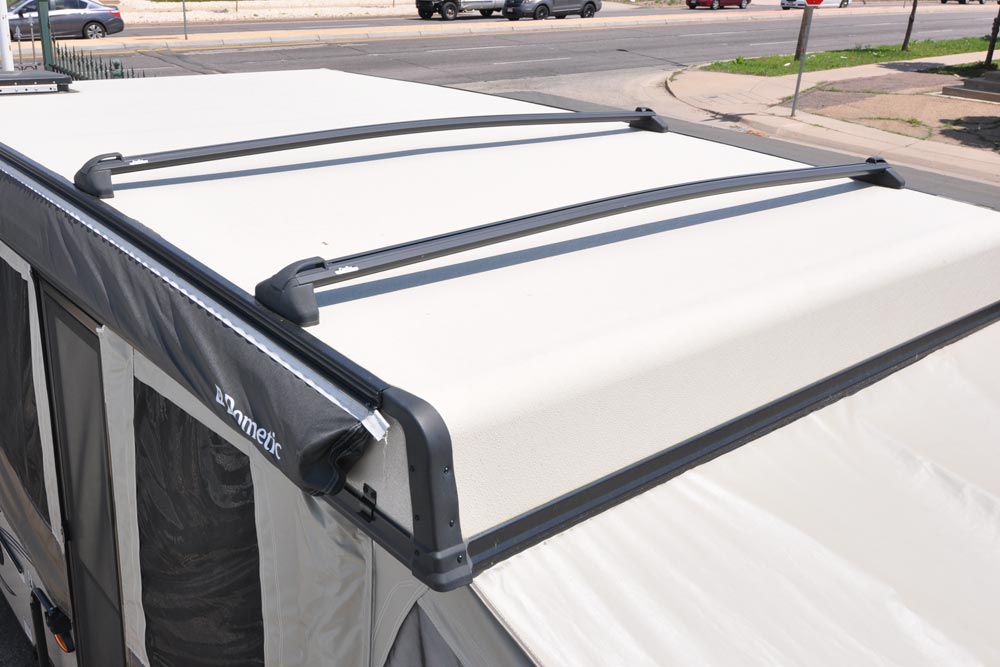

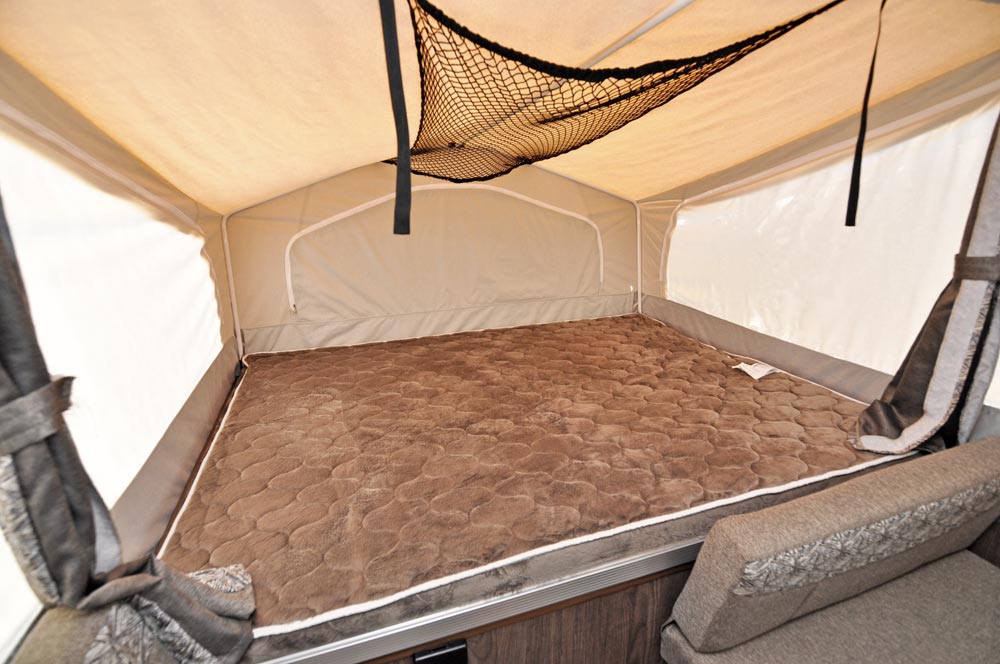

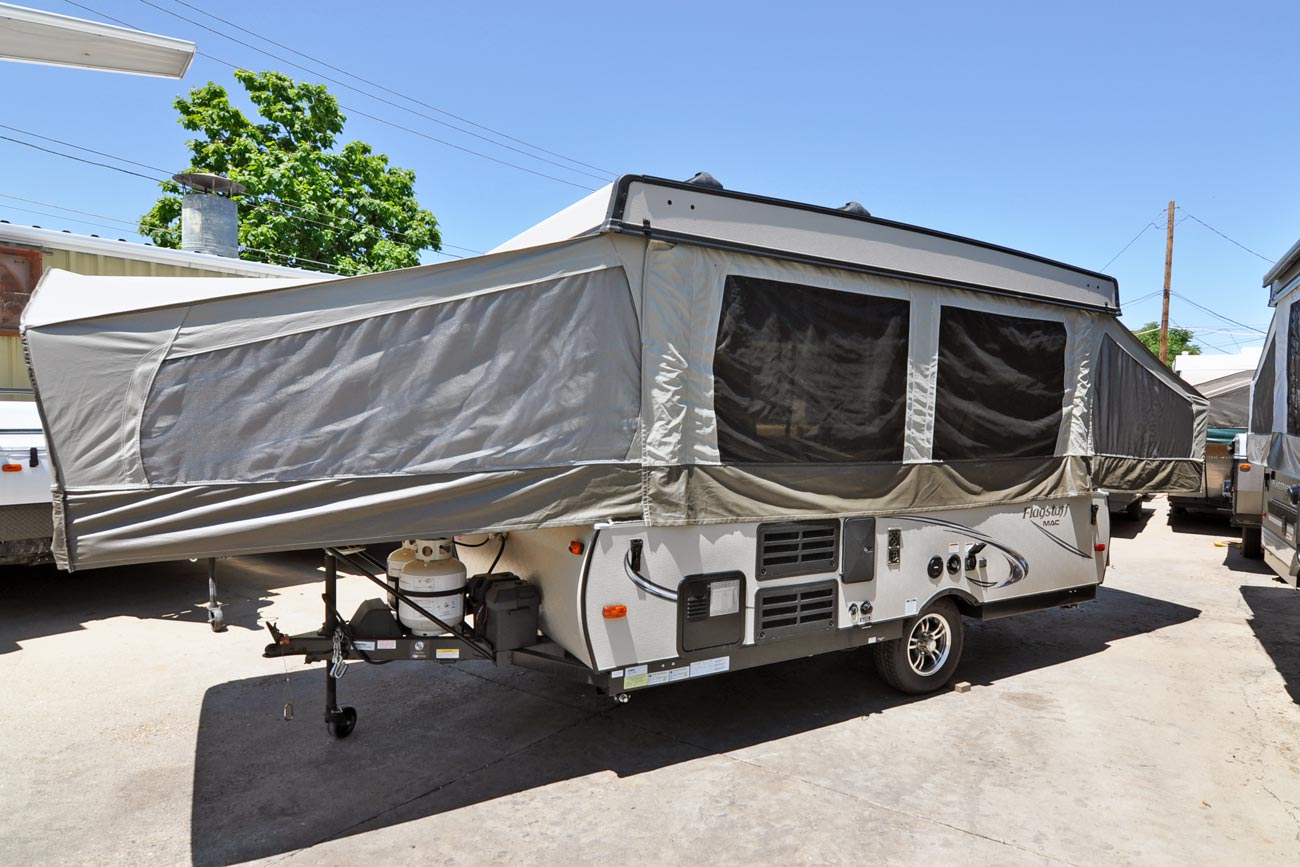

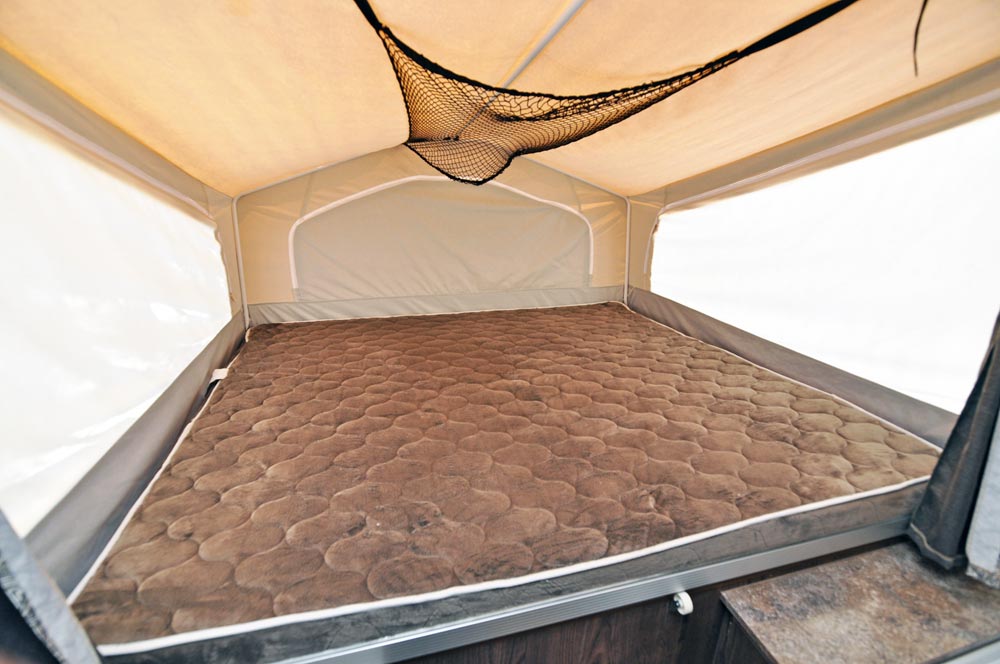

2018 Flagstaff 228 with interior shower front bunk 2018 Flagstaff 228 with interior shower rear bunk 2018 Flagstaff 228 with interior shower exterior back-side 2018 Flagstaff 228 with interior shower roof rack

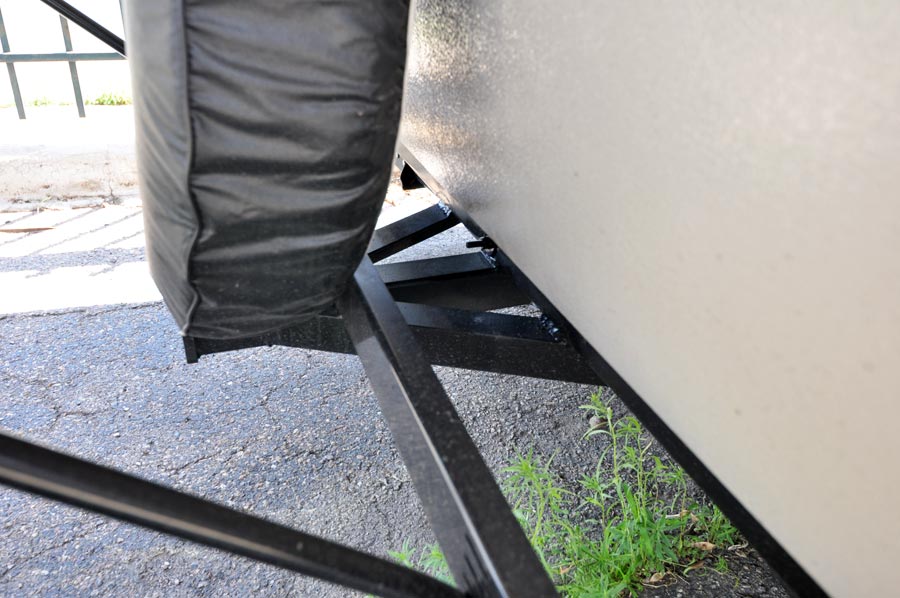

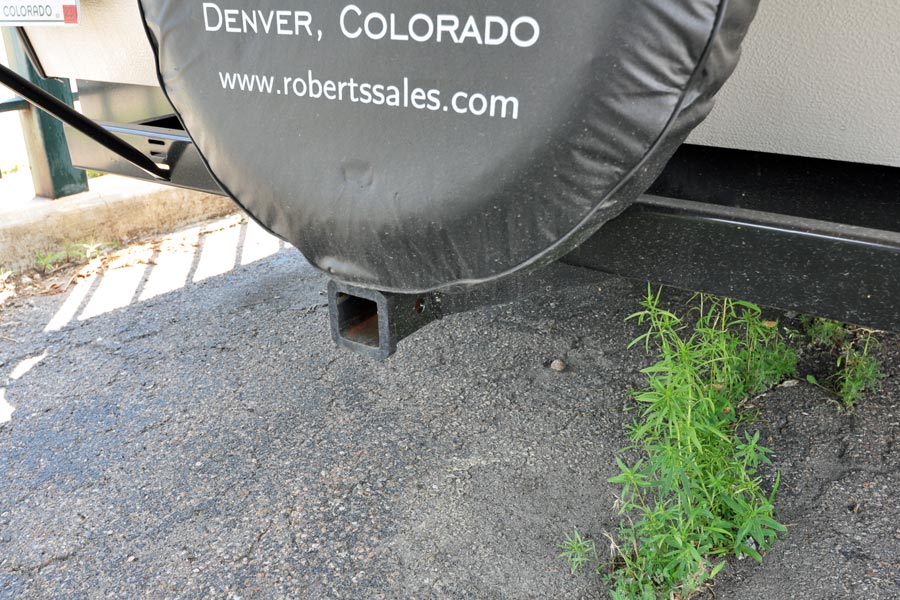

2018 Flagstaff 228 with interior shower rear receiver 2018 Flagstaff 228 with interior shower rear receiver 2

(used 2018 model year shown, with optional rear receiver)

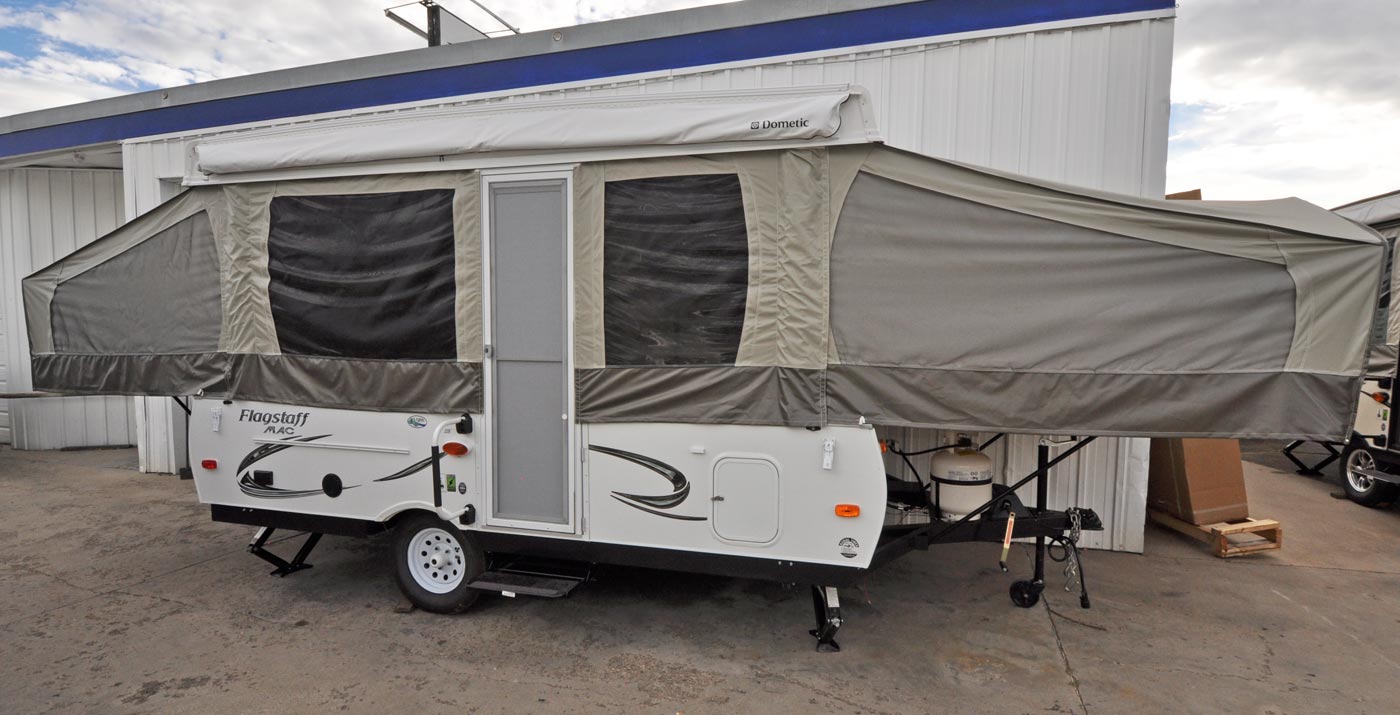

Flagstaff 228 w/sh exterior

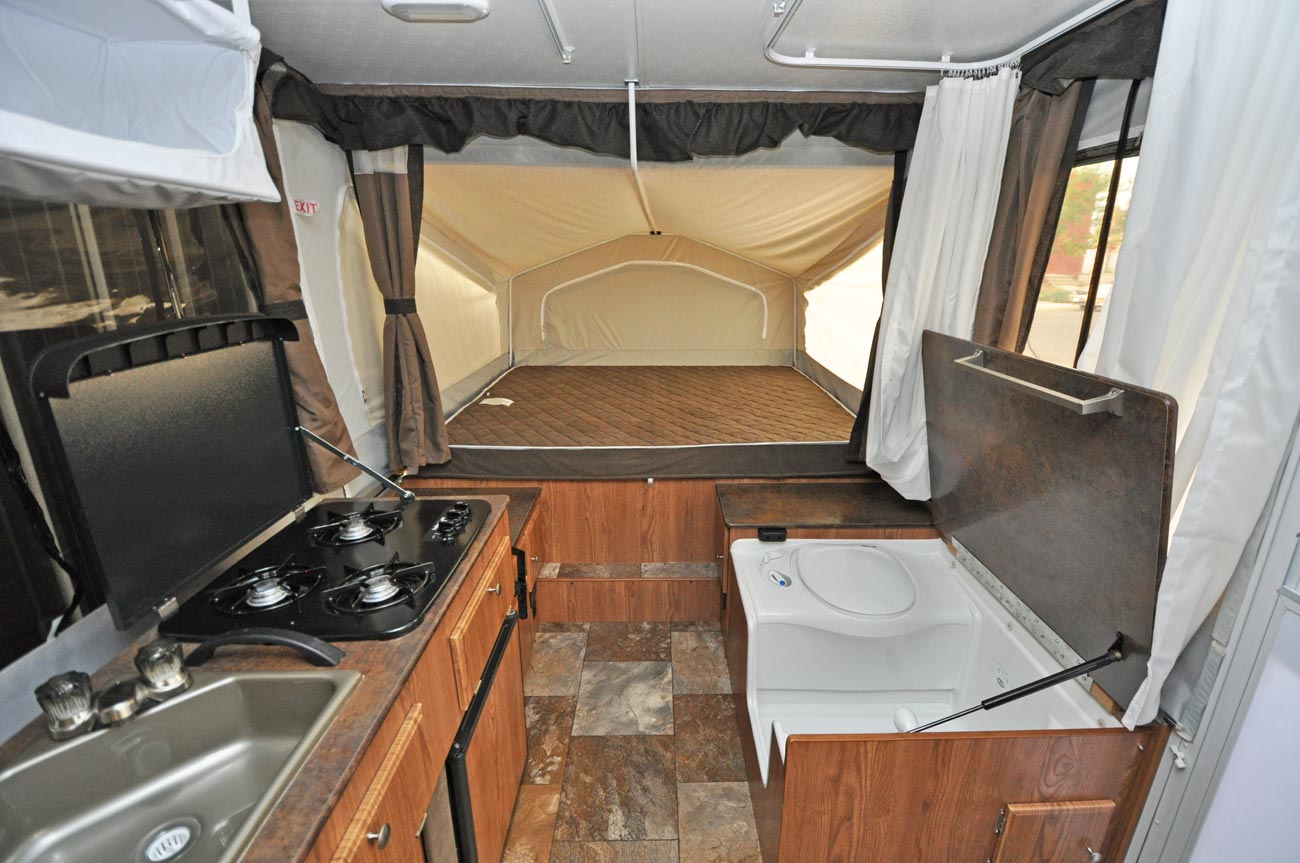

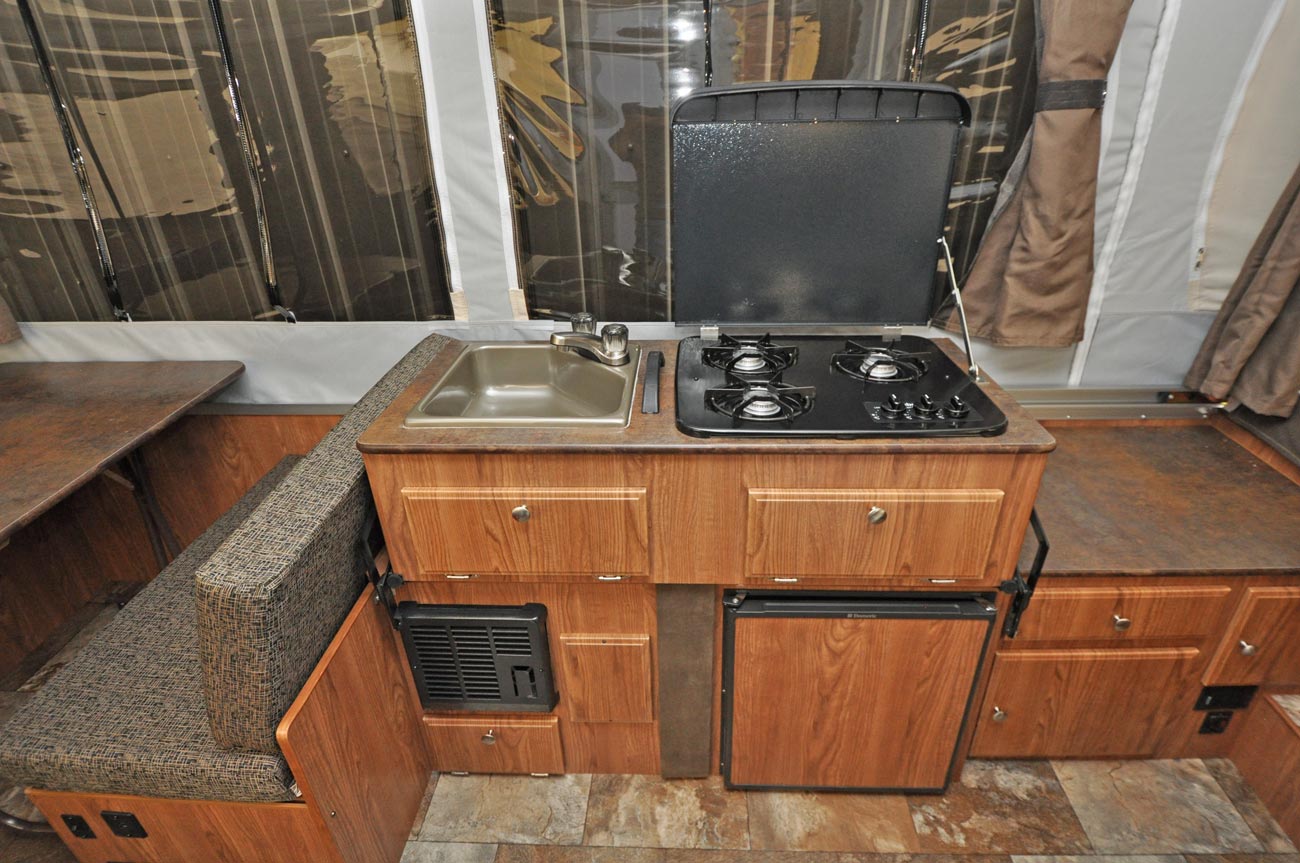

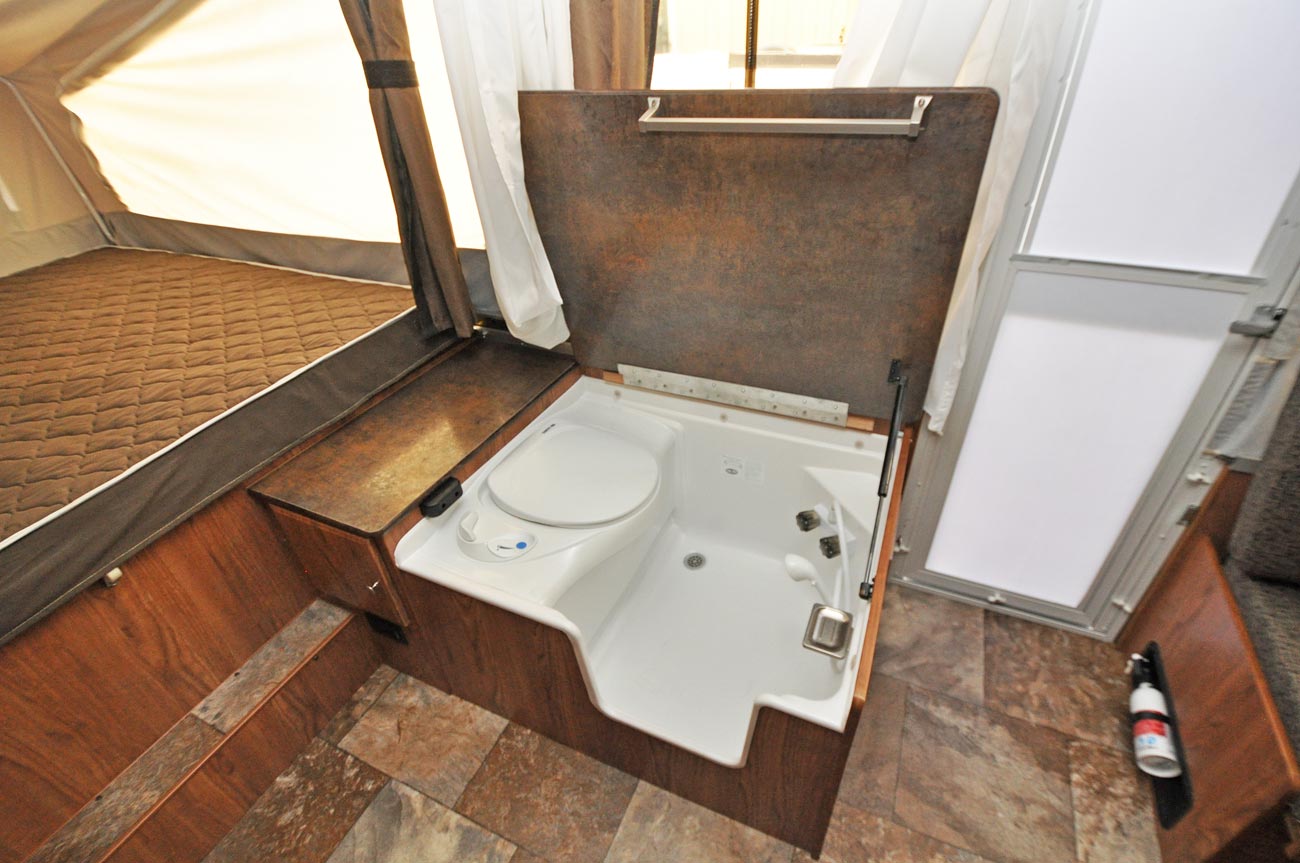

Flagstaff 228 w/sh front view Flagstaff 228 w/sh rear view Flagstaff 228 w/sh galley Flagstaff 228 w/sh cassette toilet/shower combo

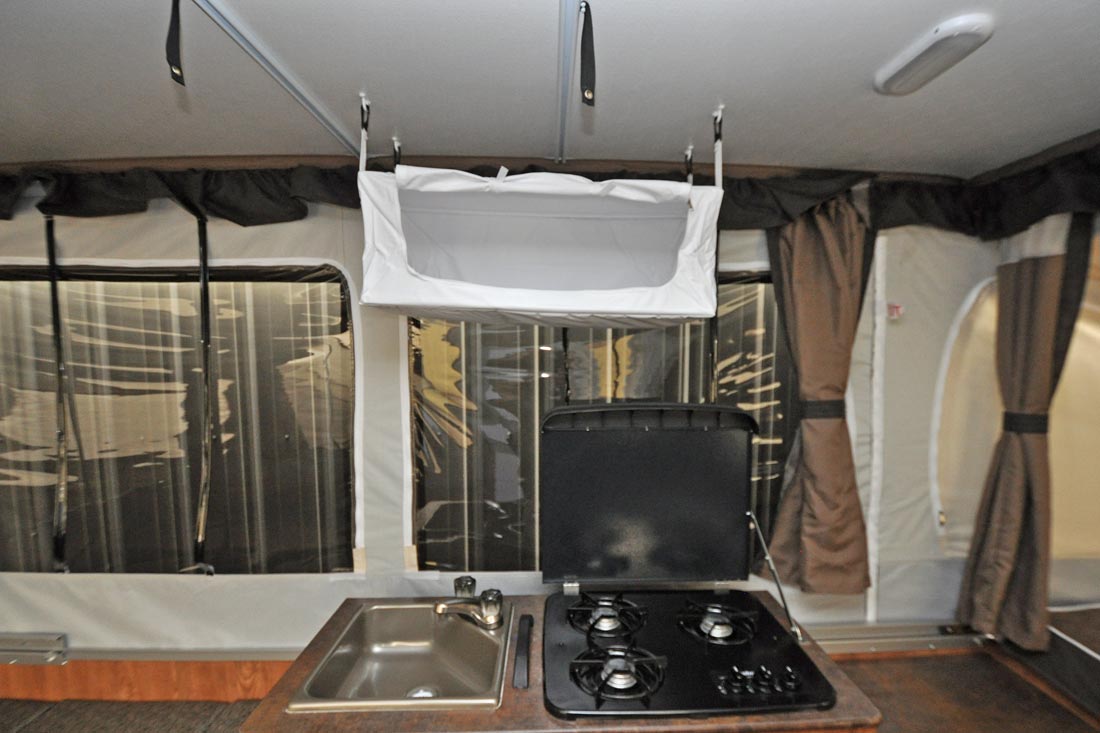

Flagstaff 228 w/sh in bed format Flagstaff 228 w/sh overhead cabinet (Early model 2016 model year shown)
