Flagstaff 825D

(2nd edition*)



(2017, 2018)

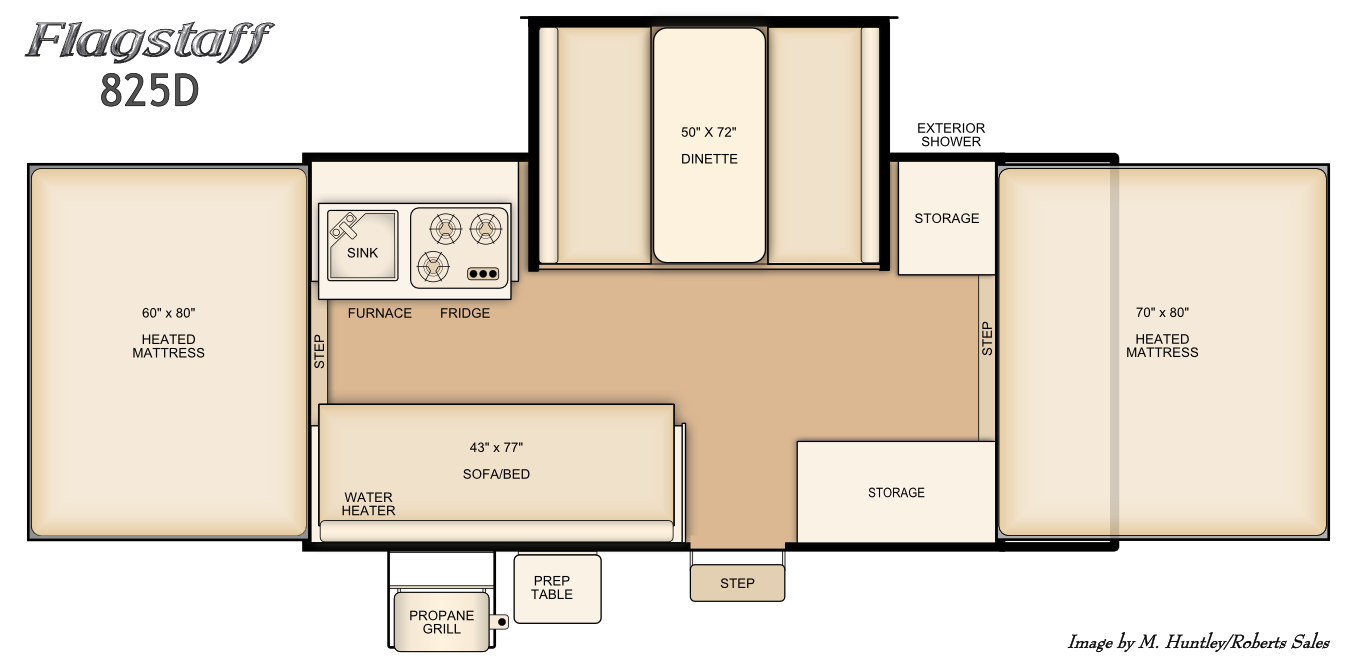

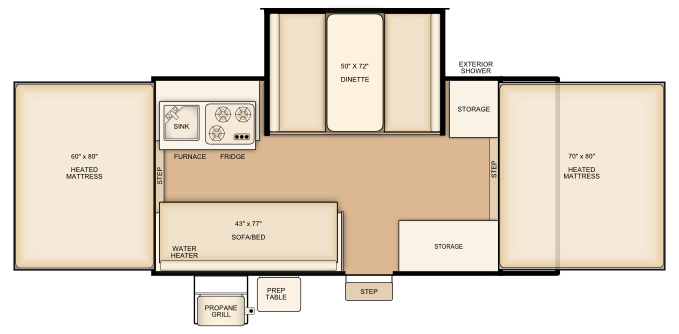

Flagstaff 825D floorplan

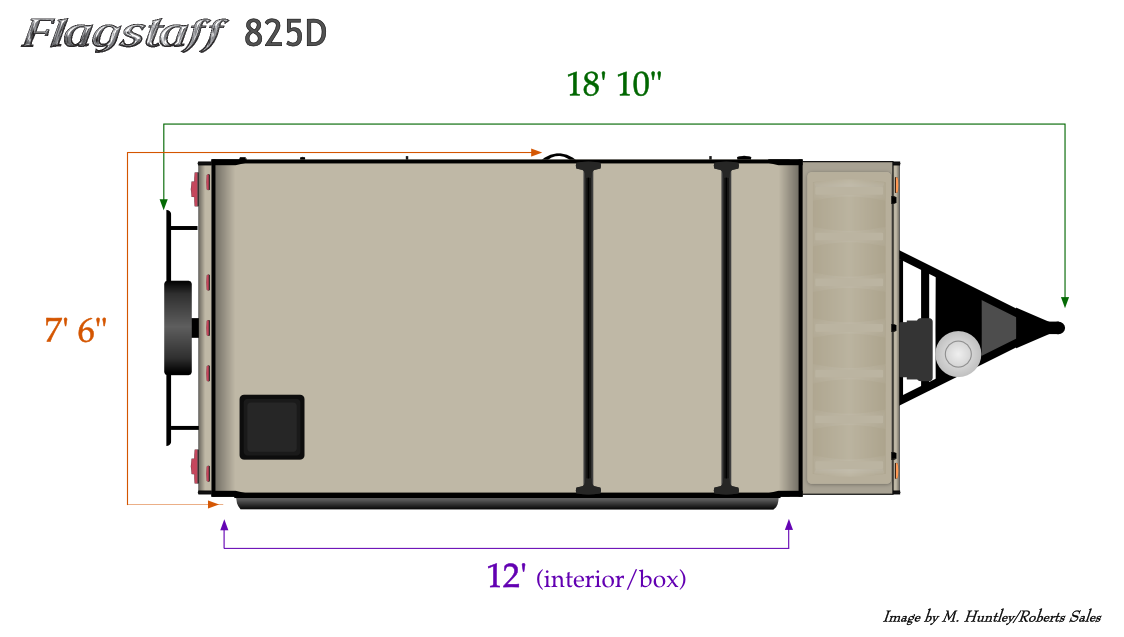

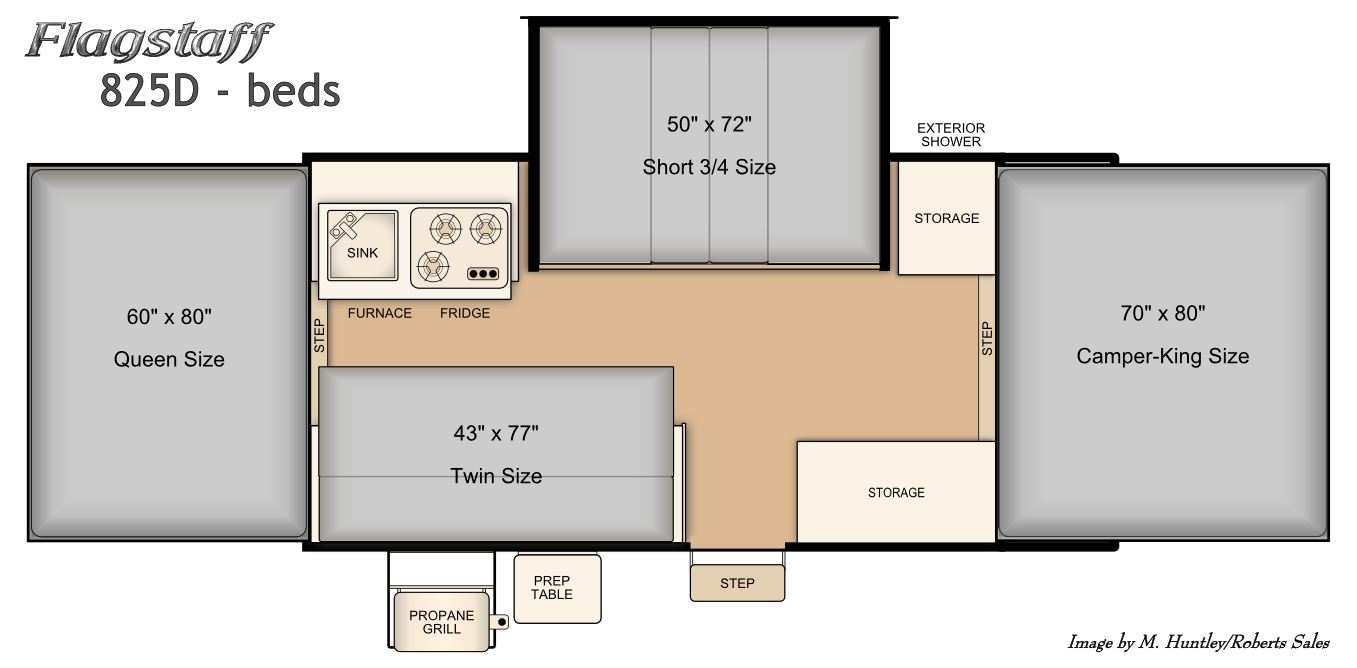

Bed Layout for this model Flagstaff 825D travel length and width

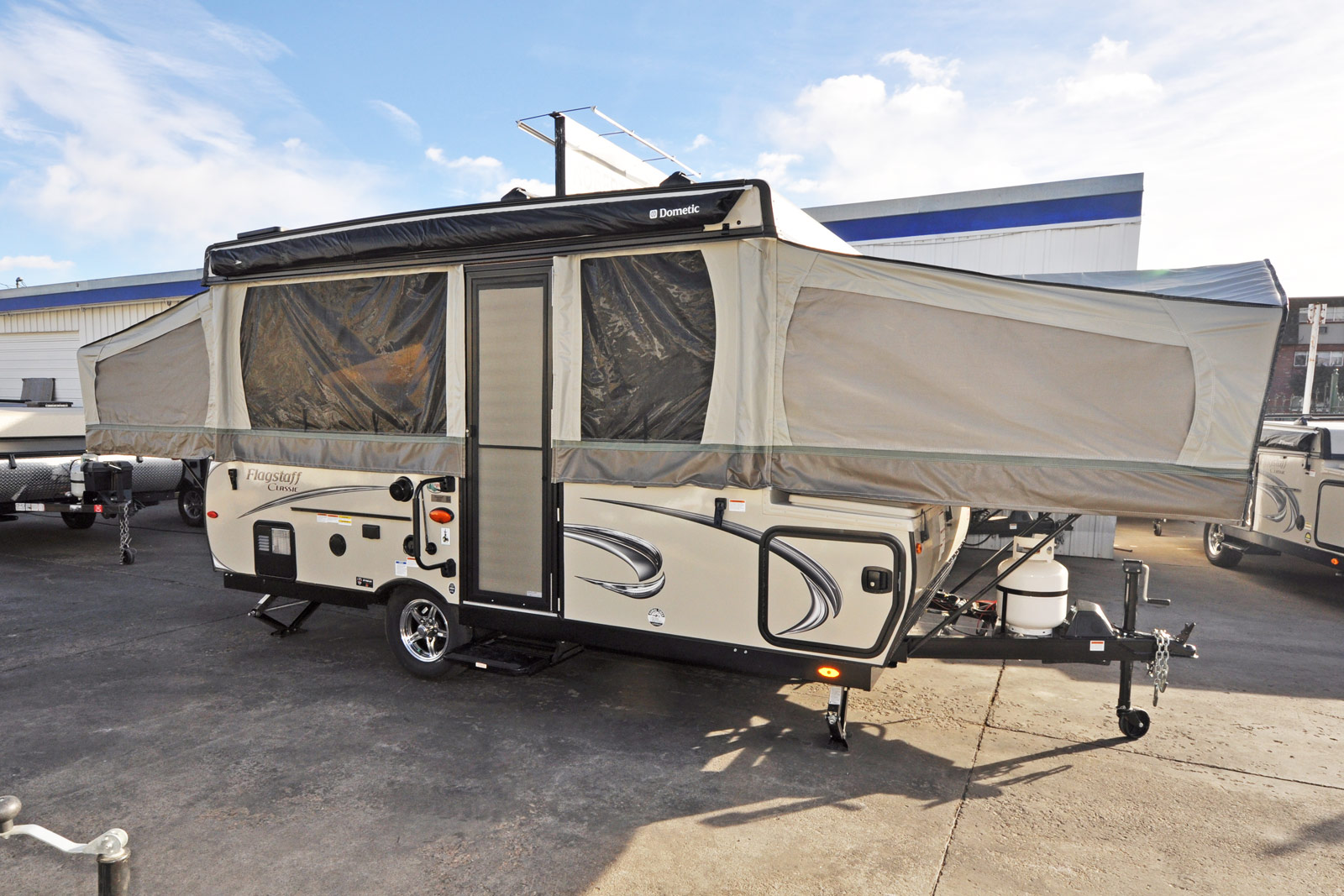

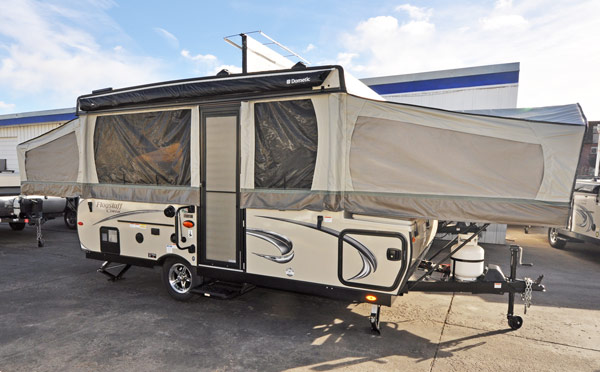

2018 Flagstaff 825D exterior

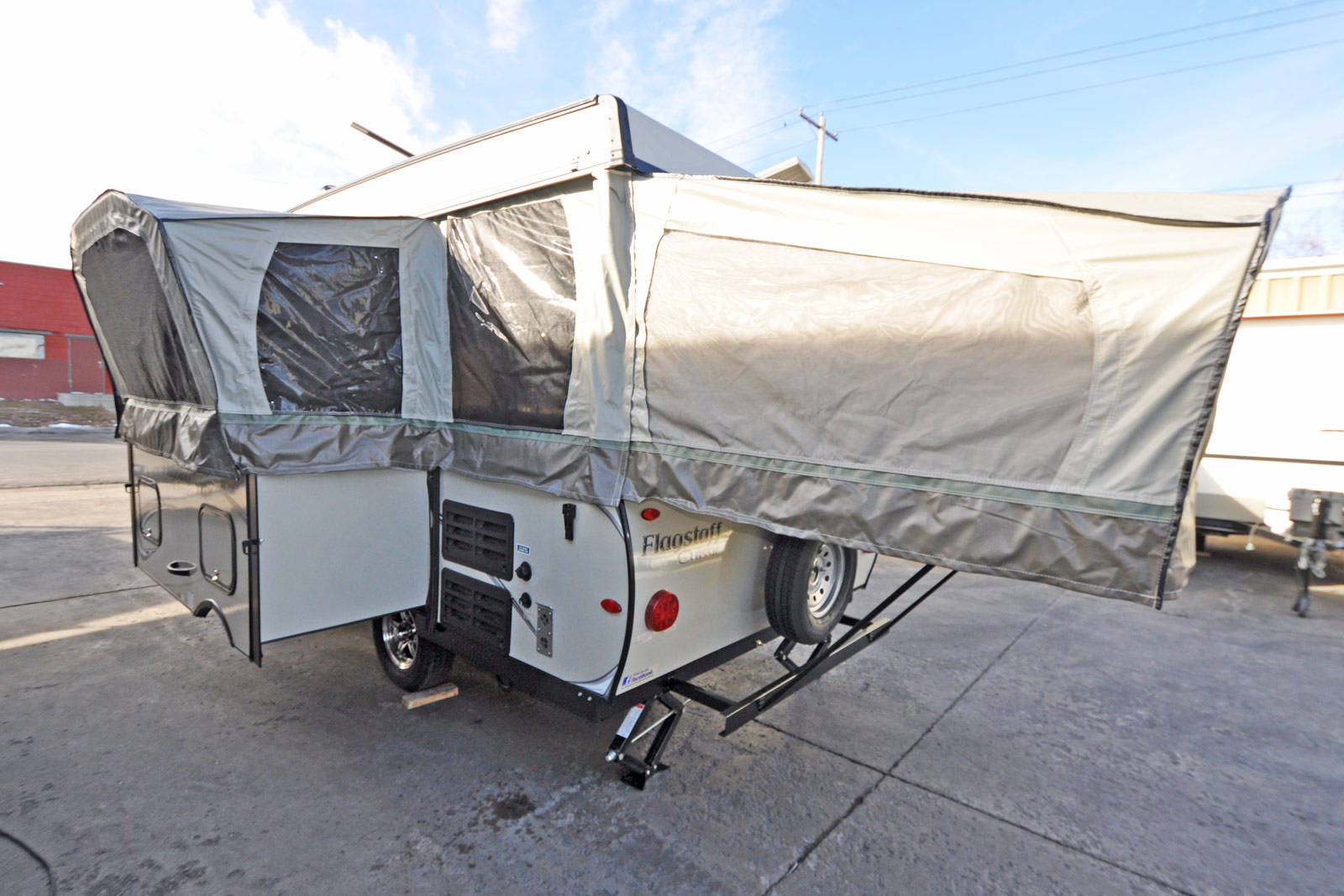

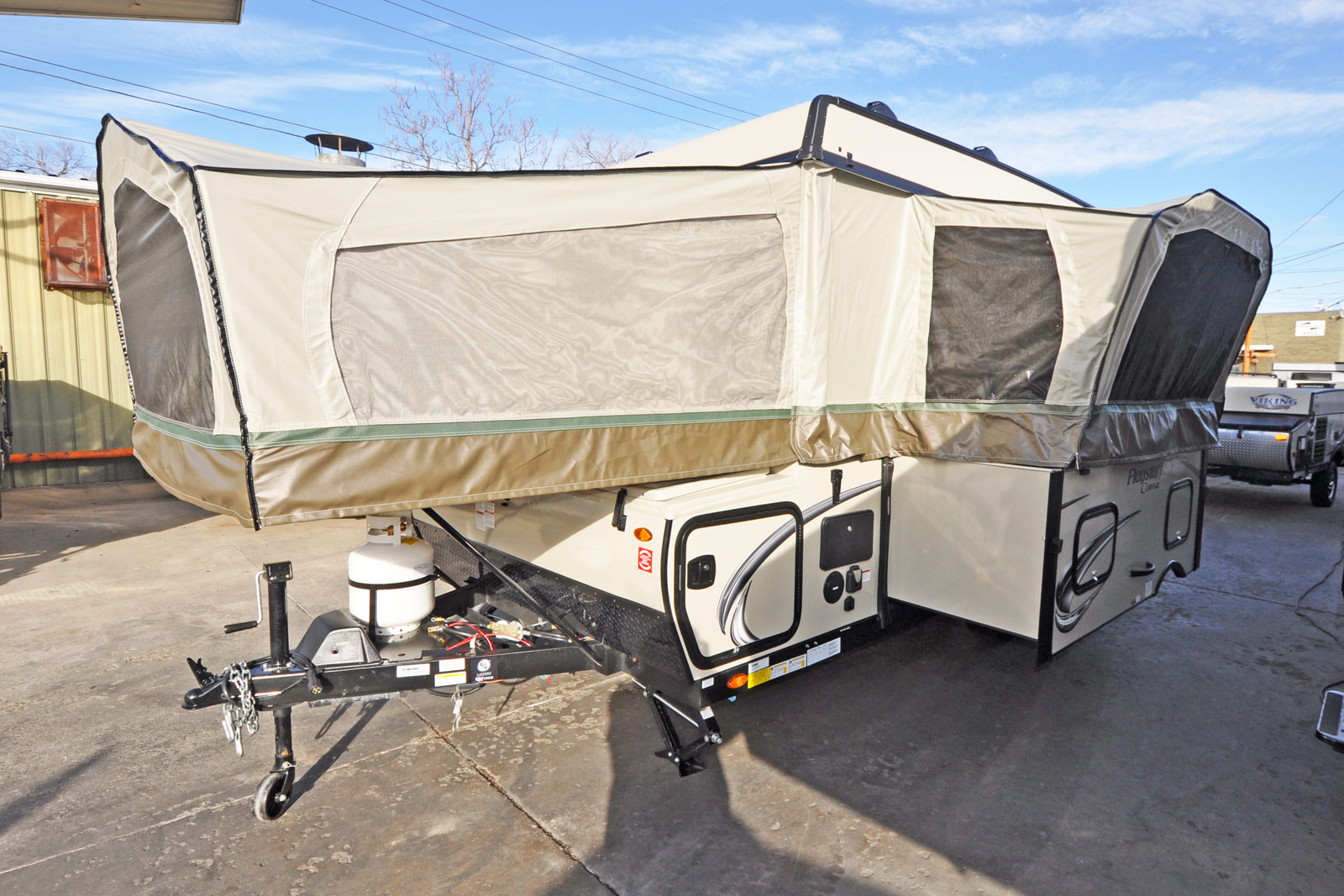

2018 Flagstaff 825D back-side 3/4 view 2018 Flagstaff 825D back-side

(2018 model year shown above)

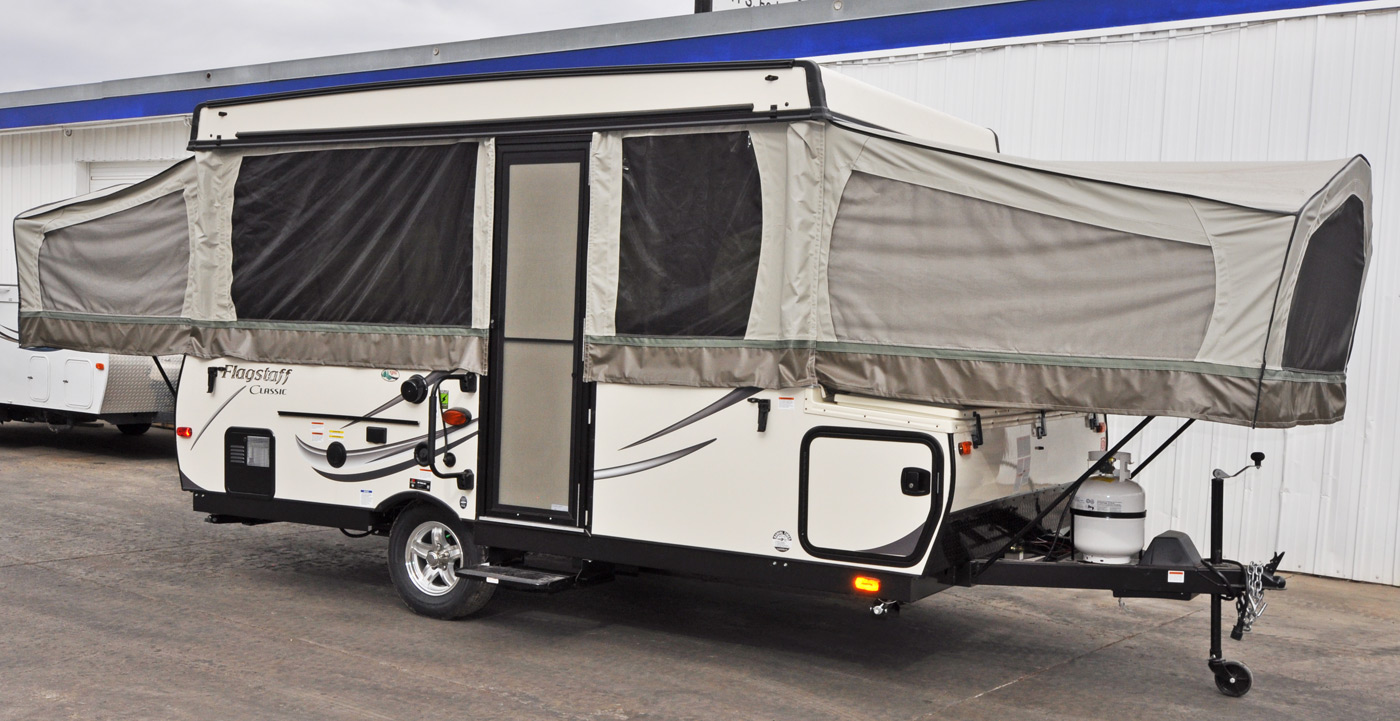

2017 Flagstaff 825D exterior

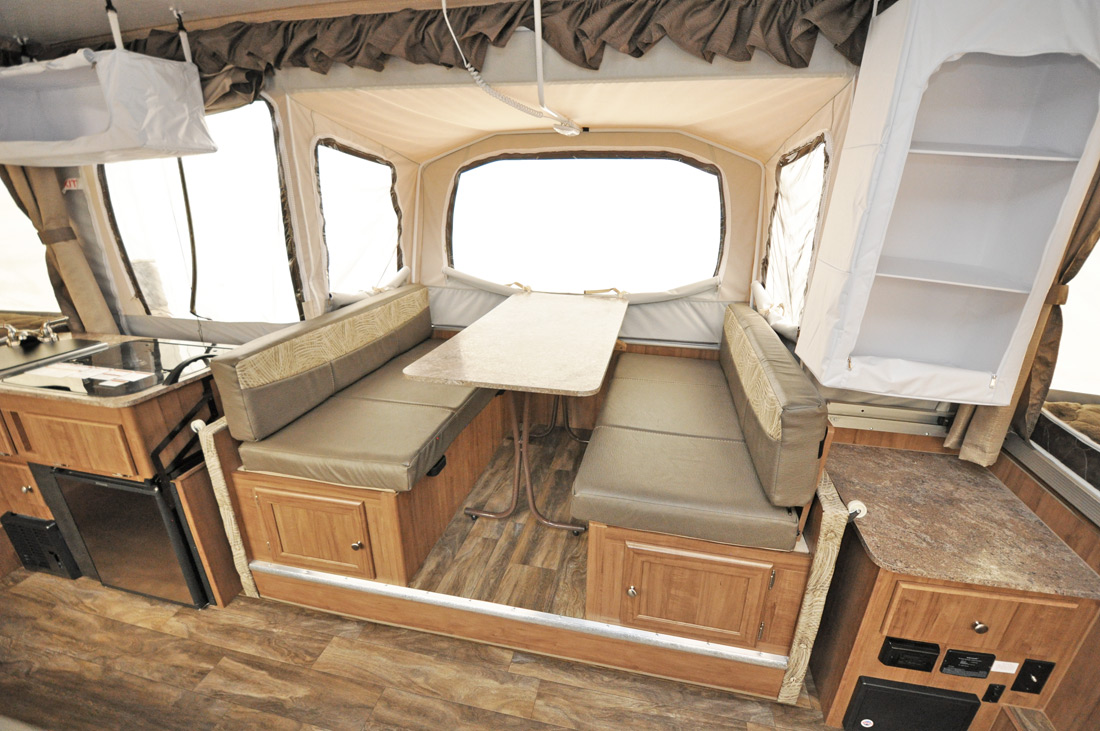

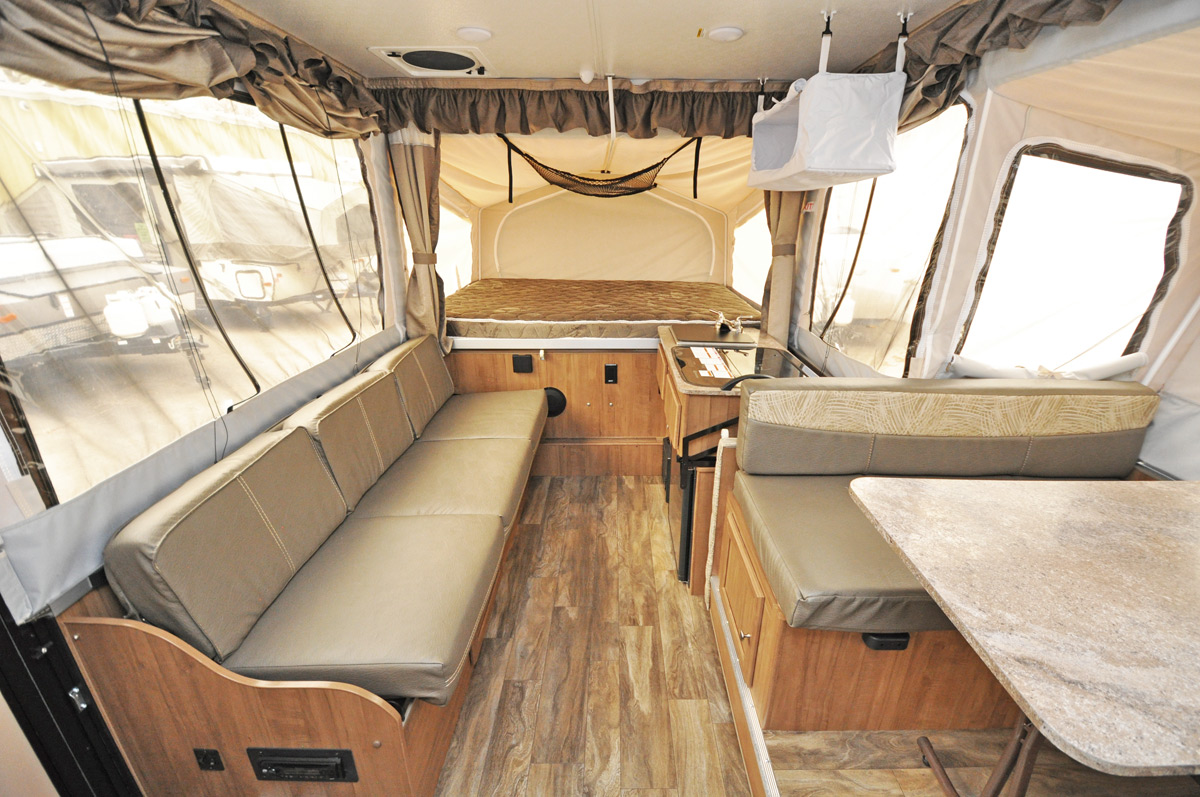

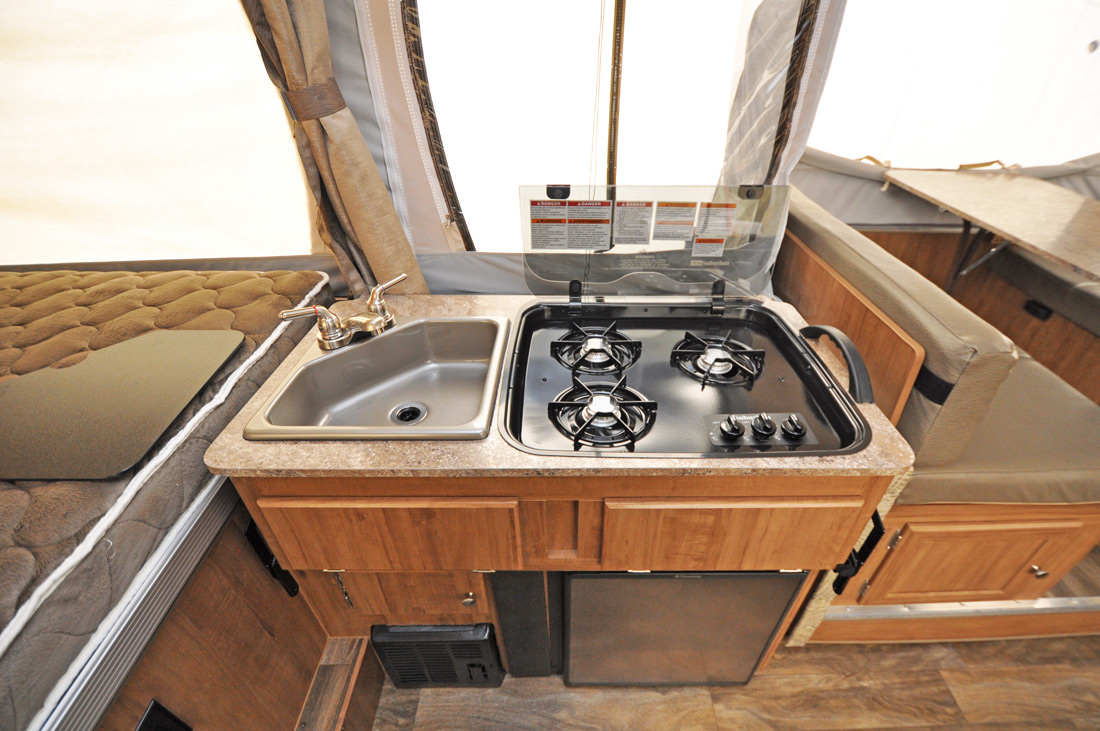

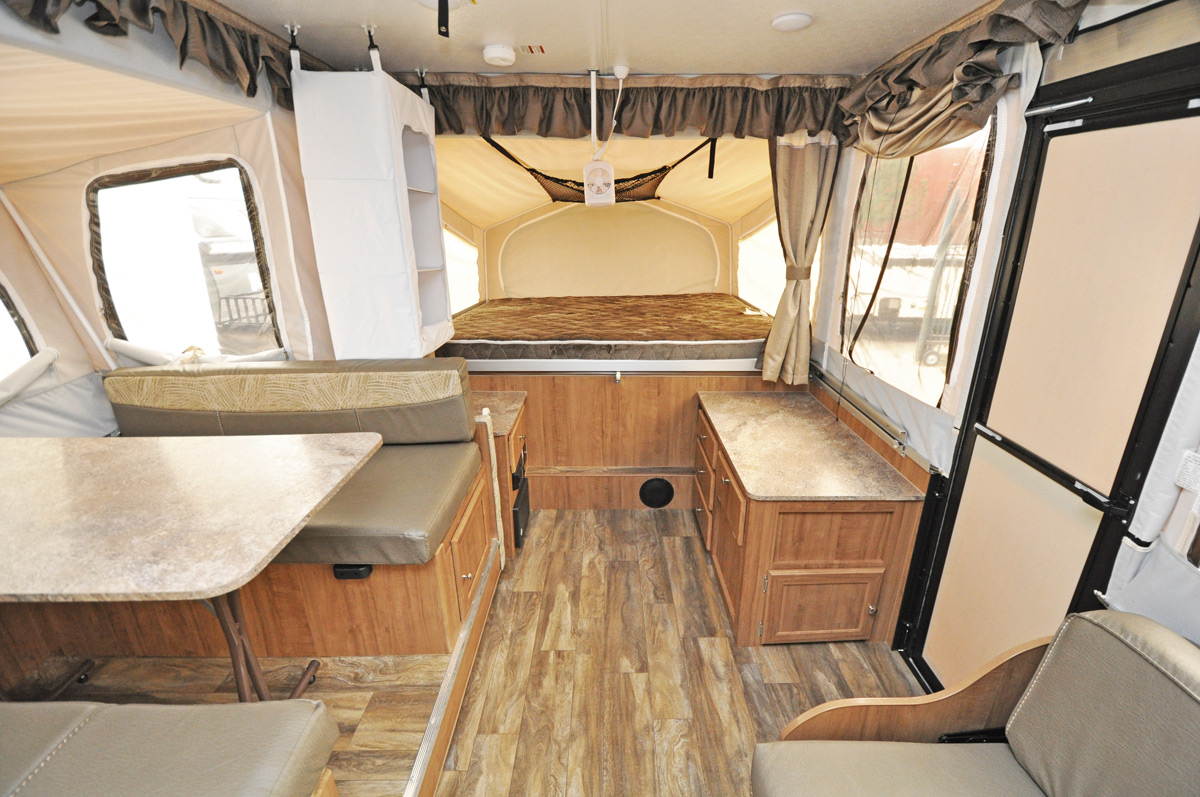

2017 Flagstaff 825D front view 2017 Flagstaff 825D rear view 2017 Flagstaff 825D galley 2017 Flagstaff 825D slide-out dinette

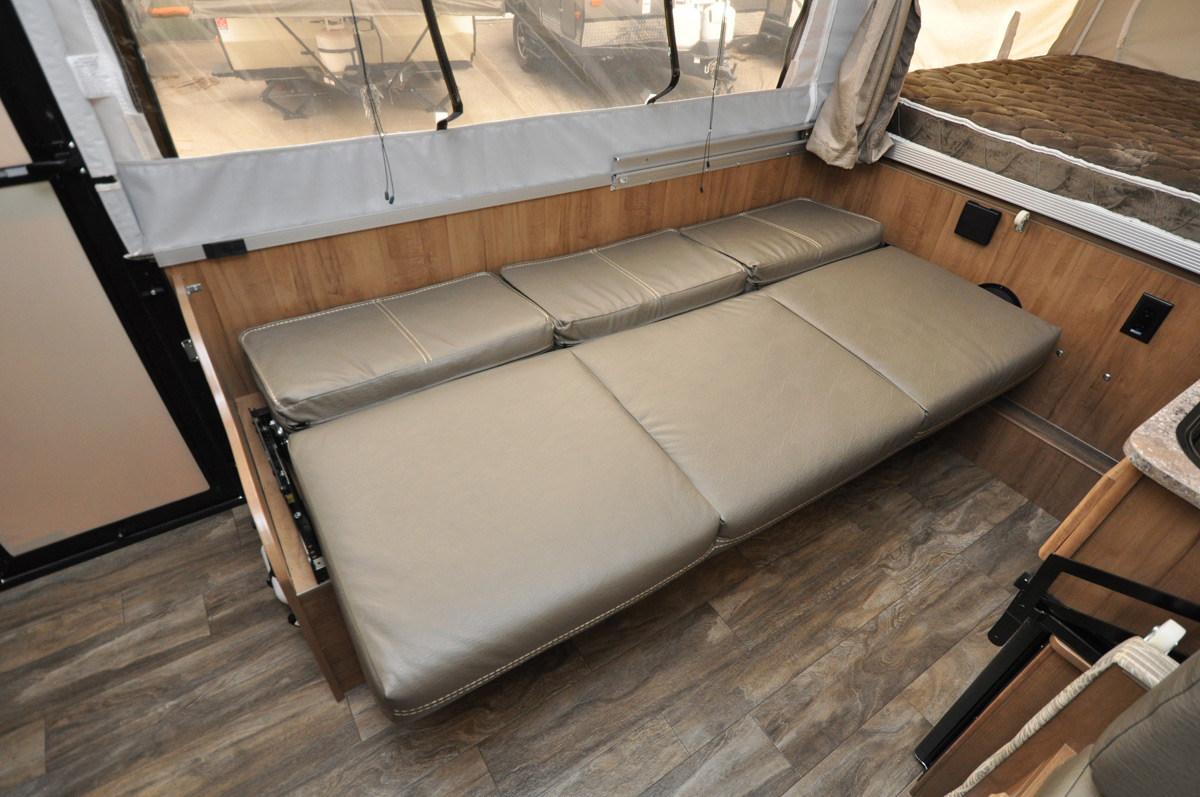

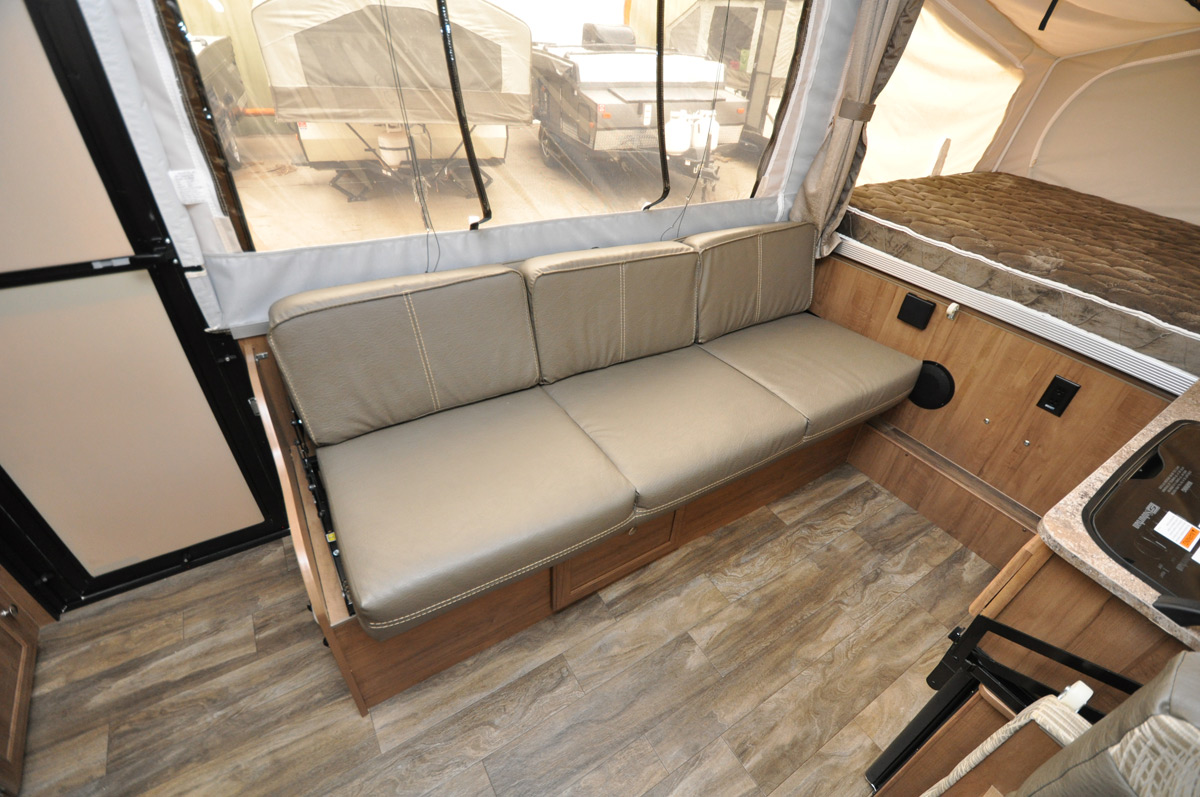

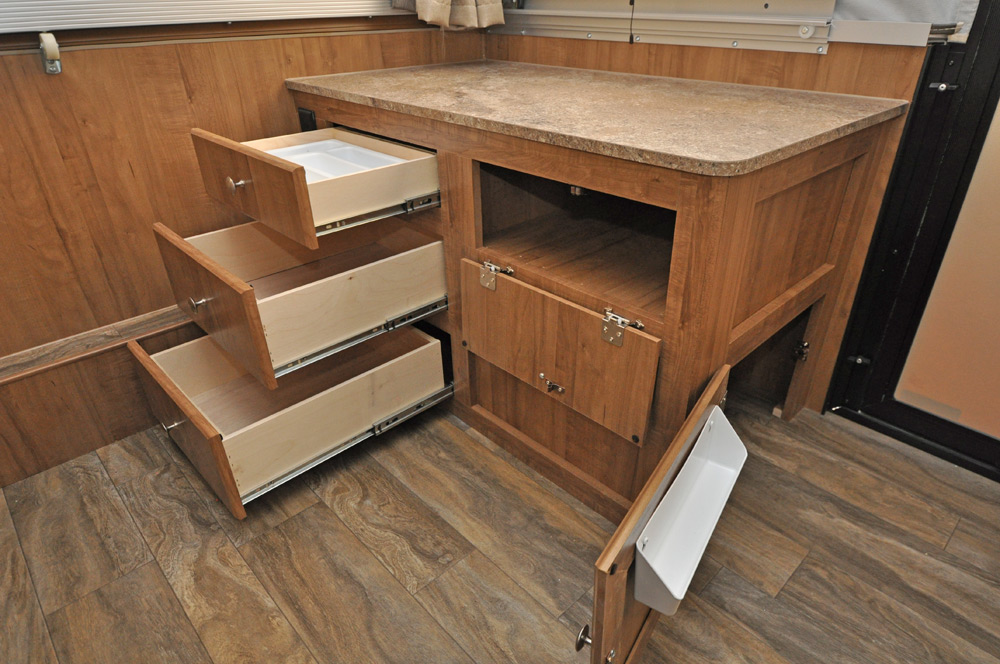

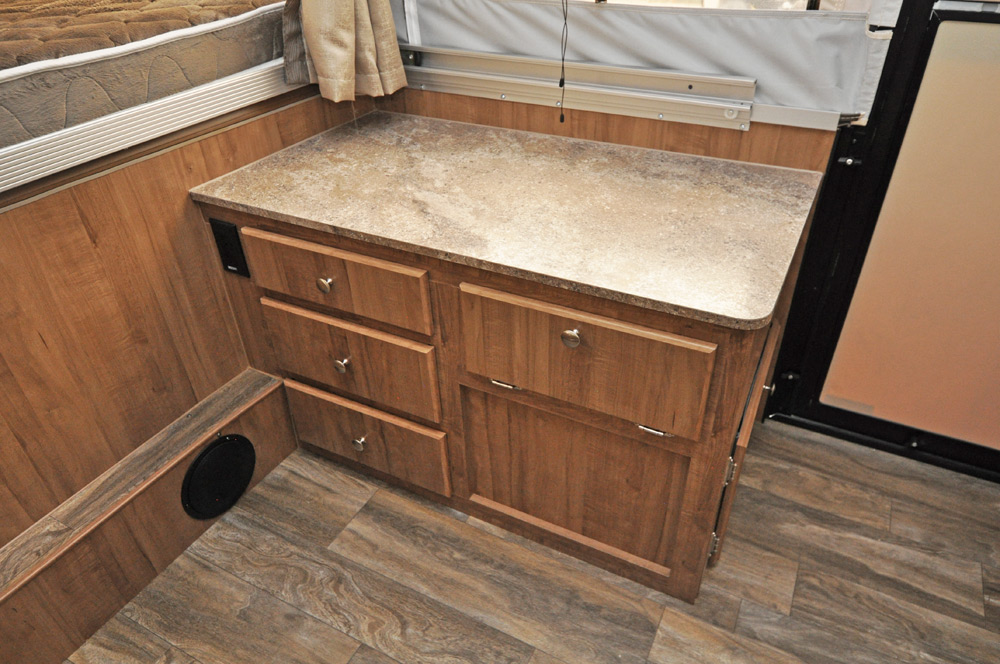

2017 Flagstaff 825D sofa 2017 Flagstaff 825D sofa bed 2017 Flagstaff 825D front corner storage 2017 Flagstaff 825D storage open

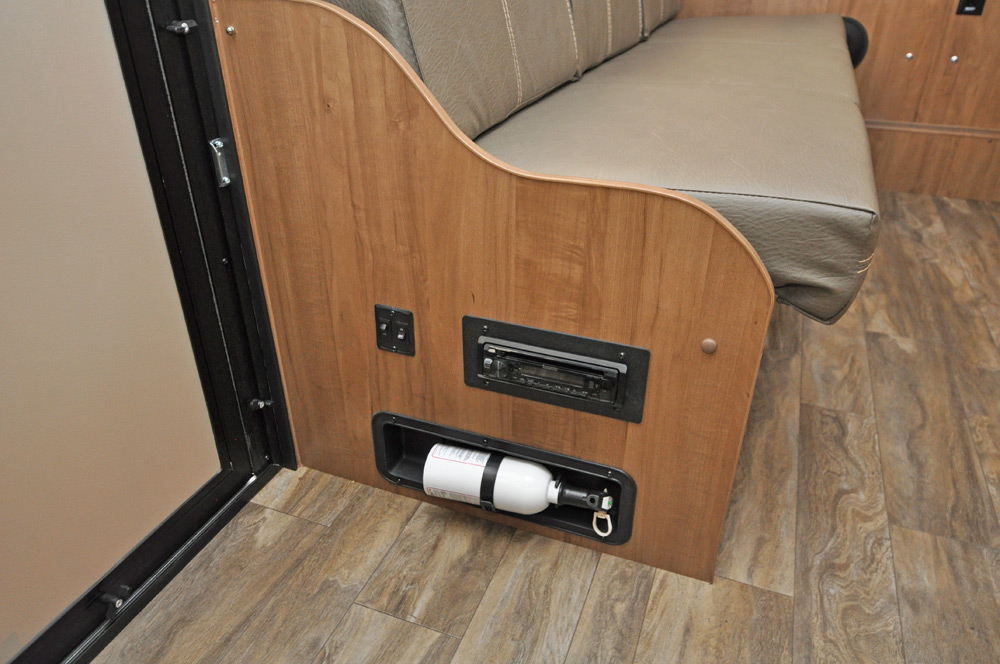

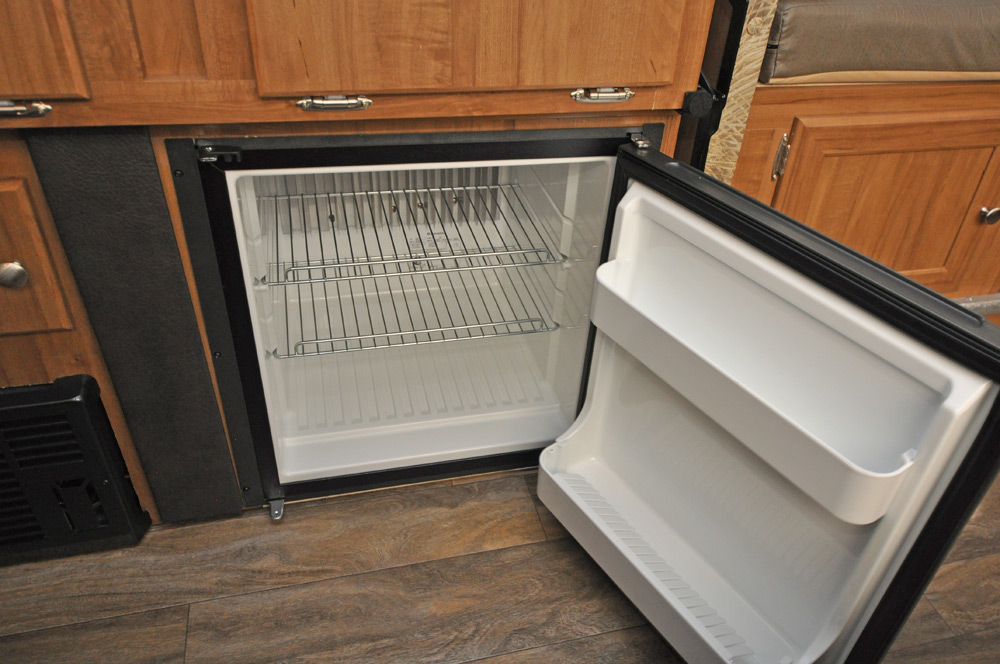

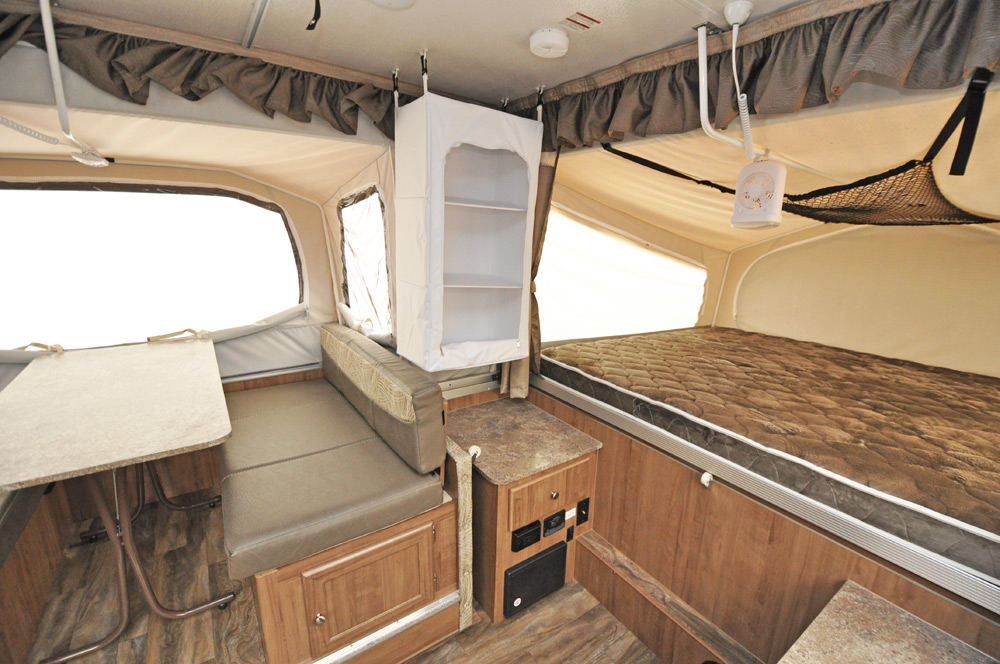

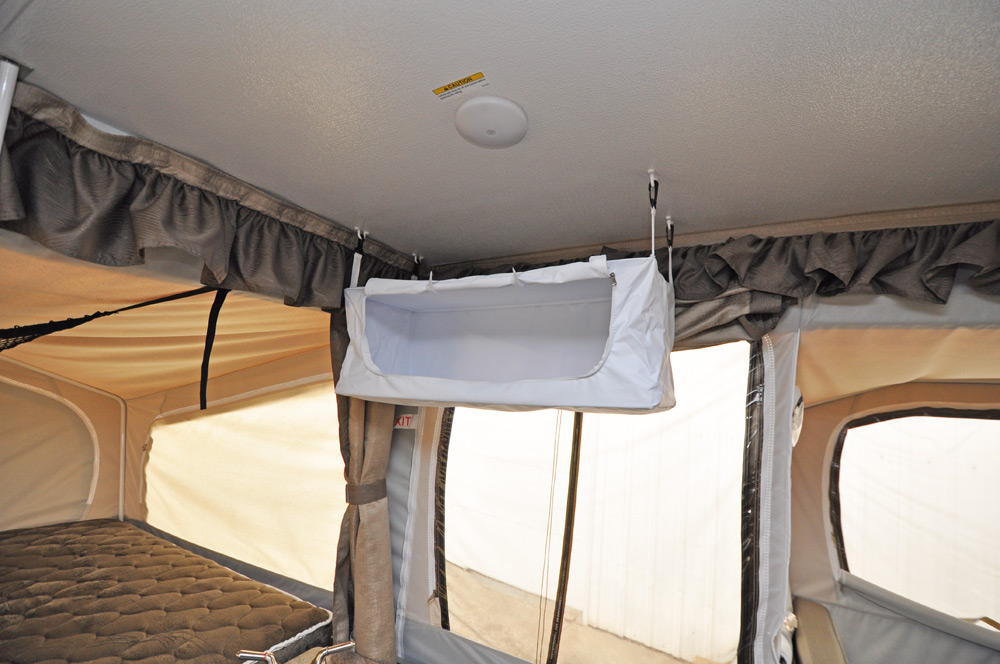

2017 Flagstaff 825D 2.5 cubic foot fridge 2017 Flagstaff 825D overhead cabinet 2017 Flagstaff 825D overhead wardrobe 2017 Flagstaff 825D stereo

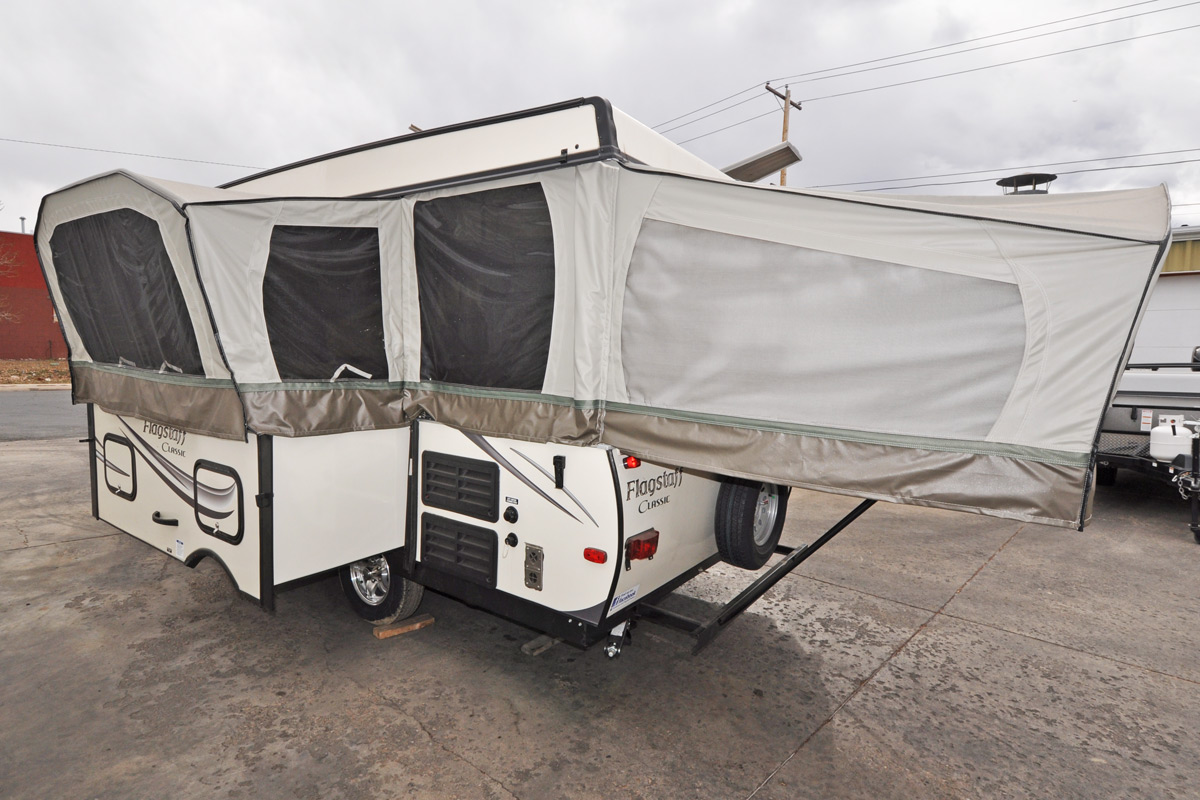

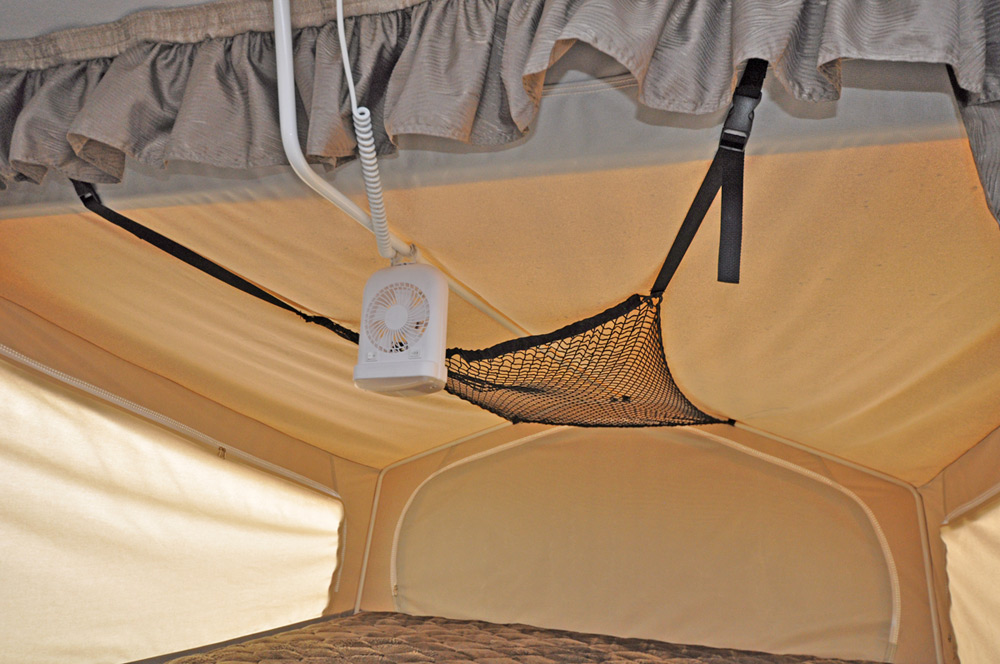

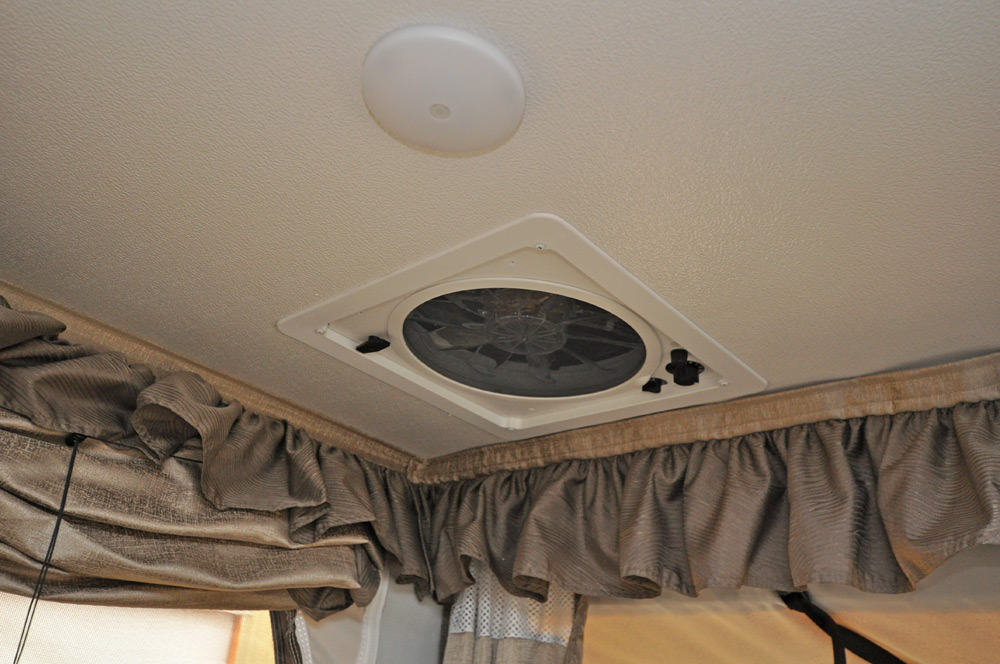

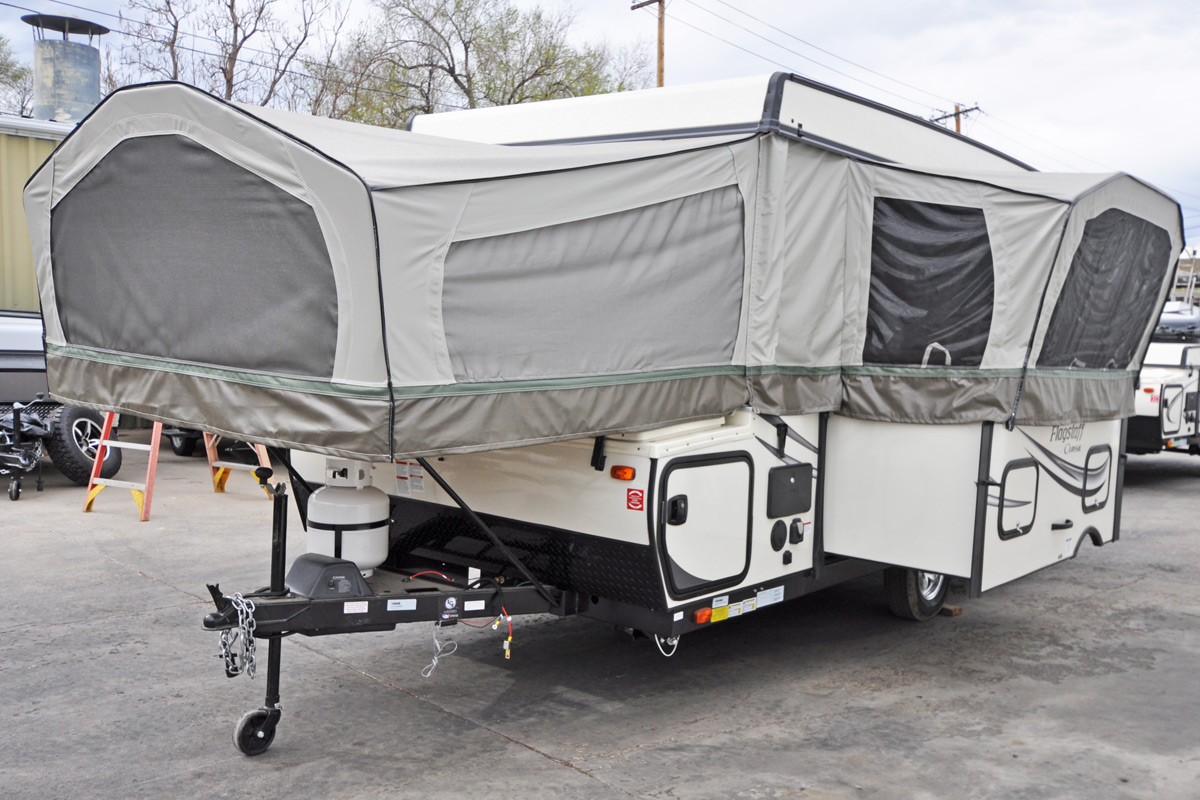

2017 Flagstaff 825D storage net and bunk-end-light/fan combo 2017 Flagstaff 825D powered roof vent 2017 Flagstaff 825D back-side 3/4 view 2017 Flagstaff 825D rear back-side 3/4 view

(2017 model year shown)

Highlights

  • The only Classic with four beds and no interior cassette toilet/shower combo.
  • Four large beds and a full walkway from end to end--nice floor space!

Specifications

  • Box Size: 12'
  • Open Length: 23' 9"
  • Travel Length: 18' 10"
  • Travel Width: 7' 6"
  • Dry Weight: 2760 lbs (brief weight explanation)
  • Hitch Weight: 386 lbs
  • GVWR: 3386 lbs
  • Coupler size: 2"
  • Sleeps: 8
  • Beds:
    1. 80" x 70"
    2. 80" x 60"
    3. 72" x 50"
    4. 77" x 43"

Features

  • Automotive-style webbing/support for the sofa/bed (as opposed to foam-on-plywood couch on the MAC series)
  • Front storage trunk with pull out "camp kitchen" (grill and cooler)

...as well as these features standard with the Classic series:

  • Dometic 2.5 cu. ft. 3-way refrigerator
  • Suburban 19,000 BTU furnace with automatic ignition
  • Interior 3-burner stove
  • Exterior propane grill
  • 20-gallon water tank
  • 6-gallon water heater with direct-spark ignition
  • Exterior shower fixture
  • Overhead cabinet
  • Overhead wardrobe
  • Swing-down clothes rack
  • Bunk-end light
  • Bunk-end light/fan combo
  • Group 27 battery pack
  • 110V heated 5" spring mattresses
  • Privacy curtains
  • Powered roof vent
  • Stereo
  • Prep table (hangs outside next to the grill)
  • 1-piece door
  • 12V powered lift system (lifts the roof)
  • Awning
  • 20# propane tank
  • 13" aluminum wheels
  • Spare tire (with a steel wheel)
  • Electric brakes

(Other features and minutiae detailed in Standard Features)

Comparable Models

  • 625D - The same layout but with an interior shower/cassette toilet in the front door-side corner.
  • 228D - Almost identical layout inside but in the MAC series (series comparison); no enclosed storage trunk.

*"2nd Edition" - Flagstaff produced a similar 825D model from 1999 to 2006 that would be considered the first edition. backup

Please note: this is a "brochure page" intended to provide information about a particular model Flagstaff offers--it does not necessarily mean we have this model in stock. Any pictures on brochure pages represent a given model's design but do not necessarily depict an individual camper available for sale and may contain optional equipment. Please see "Features" (above) for included equipment and please check New Campers In Stock for our current inventory.Thank you!

Weights and capacities are estimates and may vary based on how individual campers are outfitted. In Flagstaff's brochure they note: "The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit."
